Cargo V3

from 3.030,00 incl. VAT

Description

The Cargo V3 everybody! The same fast and light Omnium as you know it, now with adjustable rocker dropouts! With the big comfy tires and trusty thru axles of the WiFi, now combined with the new super functional dropouts, we once again we feel we’ve created the ultimate cargo bike where versatility is at the top of the list.

The adjustable rocker dropouts allow you to run a variety of drivetrain options (sorry not simultaneously), ranging from external gears with a derailleur to internal gears and belt drive! Heck you can even run it fixed if you’re that type of nut! The swappable inserts allow you to chose between thru axle and quick release depending on your rear hub spacing and gear component choice. Maybe even carry a spare set to easily replace a broken gear hanger if need be.

Find the appropriate dropout inserts here!

The Cargo is an incredibly versatile, lightweight and fast cargo bike that can handle heavy loads and big objects with ease.

The best part is, it rides like a normal bike when unloaded, due to its clever construction and familiar geometry.

The Cargo is also the model with the longest wheelbase, which calls for very stable handling. The wheelbase also allows for great stability when loading the rack on your own, as the weight is positioned in the middle of the front wheel and the kickstand.

Need to pick up your new dream sofa? Easy. Bringing your kid to the daycare before work? No problem! Bring a computer for work or a change of clothes for the gym in a waterproof duffle and you‘re good to go, rain or shine, all year long.

Design

The Cargo V3 is designed around 55mm (2.15″) tires front and rear. The list of benefits tied to bigger tires like these is long, but here’s a few we find important. High volume tires run at lower tire pressure, creating a significant layer of suspension between you and the ground. This results in far more comfort and control while riding on all surfaces, making easy work of rough roads, gravel, and cobblestones. The fast semi-slick tire tread design results in a minor rolling speed penalty, but more importantly increases grip, stability, and also reduces the risk of punctures.

The frame and fork have also been updated to take 15 x 100mm front and 12 x 142mm rear thru axles. Although thru axles were first seen on downhill mountain bikes in the late 90’s, most disc brake bikes these days use them. They make perfect sense on our cargo bikes. The axle bolts through a closed hole in the frame and fork, then through the hub, and threads directly into the dropout on the other side. Most importantly, this system increases stiffness, rigidity under braking and load, and reduces the risk of incorrect installation and disk brake rub.

The adjustable rocker dropouts are available as a free replacement when buying a new frame kit, or available separately.

Choose between:

  • 10 x 135 QR with IS brake mount – for internal gear hubs or QR rear hubs.
  • 12 x 142 thru axle with IS brake mount – the standard choice for thru axle hubs like our Omnium Wheels.

Please note, all forks will be 15×100 thru axle regardless of dropout choice.

Find the appropriate dropout inserts separately here!

A brand new, complete bike, delivered worldwide. Bike comes nearly ready to ride with just a few basic assembly tasks required, listed below:

-Install front and rear wheel, seat + seatpost, stem, handlebars.
-Align front and rear brake
-Install mudguards
-Inflate tires

If you are the slightest bit in doubt, please consult with your local bike shop.

Size Guide

Height: 155 – 165cm — we recommend — size X-Small
Height: 165 – 175cm — we recommend — size Small
Height: 175 – 185cm — we recommend — size Medium
Height: 185 – 195cm — we recommend — size Large
Height: 195 – 205cm — we recommend — size X-Large

Geometry

Cargo V3 XS (49.5) S (52) M (54.5) L (57) XL (60)
STL – seat tube length (c-t) 495 mm 520 mm 545 mm 570 mm 600 mm
TTL – top tube length (c-c / actual) 505 mm 520 mm 545 mm 570 mm 600 mm
Stack 533 mm 557 mm 581 mm 605.5 mm 634 mm
Reach 349 mm 357 mm 375 mm 394 mm 415 mm
SO – standover height 745 mm 769.5 mm 793.5 mm 818 mm 846 mm
BBH – bottom bracket height 288 mm 288 mm 288 mm 288 mm 288 mm
BBD – bottom bracket drop 81 mm 81 mm 81 mm 81 mm 81 mm
STA – seat tube angle 74° 74° 74° 74° 74
HTA1 – head tube angle rear 74.5° 74.7° 75° 75.4° 75.5°
HTA2 – head tube angle front 74.5° 74.6° 74.9° 75.4° 75.5°
WB – wheelbase 1578 mm 1590 mm 1612 mm 1632 mm 1657 mm
A-C – axle to crown 298.5 mm 298.5 mm 298.5 mm 298.5 mm 298.5 mm
R – rake 45 mm 45 mm 45 mm 45 mm 45 mm
T – trail 25.5 mm 25 mm 23.5 mm 24 mm 21 mm
CSL – chainstay length 462 mm 462 mm 462 mm 462 mm 462 mm
FL – full bike length 2208 mm 2220 mm 2241 mm 2262 mm 2286 mm

Components List Sram Apex 11

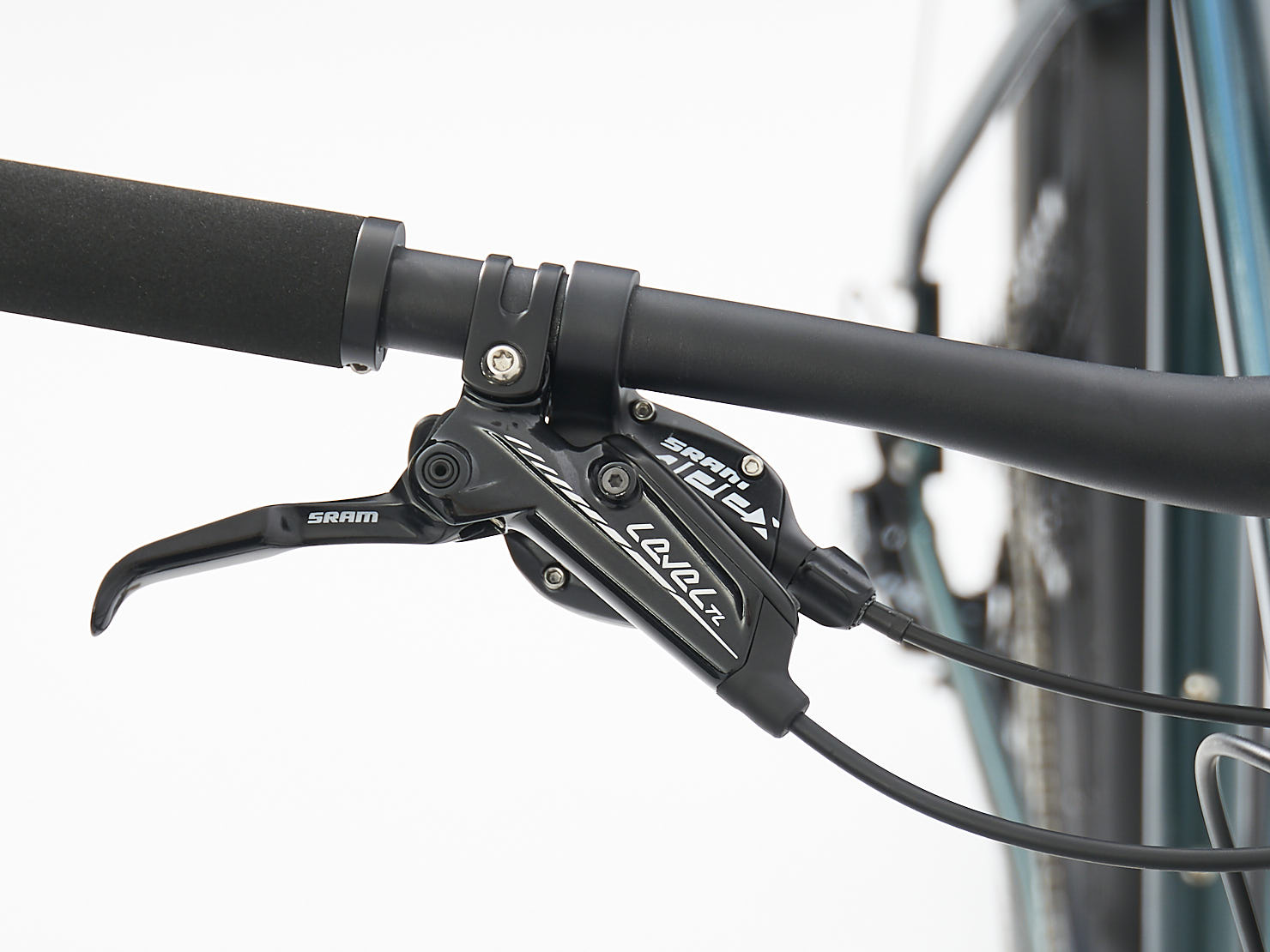

BrakesSram Level TL, IS mount, 160mm rotor front and rear
GearsSram Apex 11 SPD, Sram PG-1130 11-42 cassette, Sram PC-1130 11s chain
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seatpost31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GripsOmnium lock-on, black, foam
CranksetDriveline, 42t, CNC Narrow Wide Chainring
Bottom BracketFSA, Square Taper, 68mm BSA
Headset/sVP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
SaddleOmnium Standard Saddle
TyresSchwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.
WheelsOmnium WiFi Wheelset: 12 x 142mm thru axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
KickstandOmnium, cast aluminium twin-leg
PedalsCast metal platform, black
MudguardsWiFi 60mm wide matte black

Components List Alfine 8 W. Beltdrive

BrakesSram Level TL, IS mount, 160mm rotor front and rear
GearsShimano Alfine, 8 speed, centerlock disc mount
Sprockets / BeltGates CDX 22t rear sprocket, Gates CDN 50t front sprocket, 122t CDX belt
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seatpost31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GripsOmnium lock-on, black, foam
Crankset / BBGates CDN 170mm cranks, 122mm square tapered bottom bracket
Headset/sVP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
SaddleOmnium Standard Saddle
TyresSchwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.
WheelsOmnium WiFi Wheelset: 10 x 130mm qr axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
KickstandOmnium, cast aluminium twin-leg
PedalsCast metal platform, black
MudguardsWiFi 60mm wide matte black

Components List Shimano 1x11

BrakesShimano MT500, IS mount, 160mm rotor front and rear
GearsShimano Deore M5100 11 SPD, Shimano SLX 11-40T cassette, KMC 11 SPD chain EPT
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seatpost31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GripsOmnium lock-on, black, foam
CranksetDriveline, 42t, CNC Narrow Wide Chainring
Bottom BracketFSA, Square Taper, 68mm BSA
Headset/sVP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
SaddleOmnium Standard Saddle
TyresSchwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.
WheelsOmnium WiFi Wheelset: 12 x 142mm thru axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
KickstandOmnium, cast aluminium twin-leg
PedalsCast metal platform, black
MudguardsWiFi 60mm wide matte black

Components List Frame Kit

Framekit includes– Frame
– Fork
– Headsets (front and rear)
– Steering rod
– Steerer tube
– Seat clamp
– Rack
– Thru axles front
– Comes with a choice of qr dropouts ore 12mm thru axle dropouts and thru axle

The fork always comes with 15×100 Thru Axle regardless of the choice on insert.

Does NOT include spacers for headset or kickstand

Frame Specifications

Frame materialDouble-Butted Chromoly Steel Frame
5 SizesXS, S, M, L, XL
Standard Rack Weight1320g +/-
Rack dimensions83cm x 50cm
Seat post diameter31.6 mm
Seat post clamp size34.0 mm
Rear WheelTA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
Front Wheel406, 15 x 100 mm spacing, disc only
Tyre clearance, front55mm with mudguards
Tyre clearance, rear55mm with mudguards
Thru Axle Rear12×142, 172mm long, 19mm thread length, 1.75mm pitch
Thru Axle Front15×100, 125mm long, 17mm thread length, 1.5mm pitch
Fork headset1 1/8″ Threaded Integrated with locking cap
Steerer headset1 1/8″ Ahead
Bottom BracketBSA 68mm
Q-Factor/Stance145mm
GearsFor 1x rear derailleur gear system
Standard Rack Weight1320g +/-
Rack dimensions83cm x 50cm
Rack bolt sizeM15 x 15mm
WeightComplete Medium bike weighs 20kg
Maximum loading weight on front rack85 kg
Maximum total loading weight incl. rider175 kg

Framekit includes– Frame
– Fork
– Headsets (front and rear)
– Steering rod
– Steerer tube
– Seat clamp
– Rack
– Thru axles front
– Comes with a choice of qr dropouts ore 12mm thru axle dropouts and thru axle

The fork always comes with 15×100 Thru Axle regardless of the choice on insert.

Does NOT include spacers for headset or kickstand

Shipping

Cost of shipping is calculated based on your location – For a shipping price please add your desired products in the cart and use the shipping calculator; you only have to supply your country and post/zip code to calculate a price.

After we’ve completed your order you’ll receive an e-mail with all the information you’ll need to follow your parcel via the URL that you will receive in your inbox.

Smaller products and frame kits will normally be shipped within two business days. Complete bikes are usually assembled for shipment within two weeks, depending on the workshop’s workload.

Transit times vary according to the destination.

Lead Time

E-Cargo v3 / E-Mini-Max v3: Up to 3 weeks.

Cargo v3 / Mini-Max v3 / Mini V3 – Sram Apex 11: Up to 2 weeks.

Cargo v3 / Mini-Max v3 / Mini V3 – Shimano 1×11: Up to 2 weeks.

Cargo v3 / Mini-Max v3 / Mini V3 – Belt Drive: Up to 2 weeks.

CXC v3 – Sram Apex 11 / Shimano 1×11 / Single Speed: Up to 2 weeks.

CXC V3 – Dropbar Build: Up to 3 weeks.

UK Customers – Please Note

Due to complications with shipping, we are not able to ship to the UK – please visit one of our local dealers, you can find our UK dealers here.

Import Taxes

There may be import taxes to pay if your destination is outside the EU. Please ask your local customs office for advice.
