Titanium Mini

OUT OF STOCK

Description

The Mini almost speaks for itself. It’s a normal bike with a front rack on steroids!

It‘s manageable size makes handling familiar, and multimodal transportation a breeze. The rack is ideal for getting around with a load too big for a backpack, and perfect for putting it out front where you can keep an eye on it.

Significant loads on the mini are a non-issue as long as they are more or less kept within the rack‘s size. The weight of the load has very little influence on steering, giving you surprising amounts of confidence, as the rack‘s support is built directly into the frame.

We like to think this is the most playful cargo bike out there!

Design

It’s a normal bike with a front rack on steroids, now in Titanium! Is this the one bike to do it all?

It now comes with internal cable routing, adjustable rocker dropouts with a belt split, and 55mm tire clearance.

Please note complete bikes bikes will be specced with Sram brakes and gears.


Titanium is an amazing material for bike frames due to its very unique qualities. It simply will not rust in any normal atmospheric conditions, not even with road salt, scratches or dents. It doesn’t need painting or coating, and doesn’t suffer from fatigue cracking. It’s much lighter than steel, and still really comfortable to ride with a perfect ratio of stiffness, strength and durability. Of course, it’s more expensive than steel, but then again, it will probably outlast the human race. Steel is real, but Titanium is realer!

Size Guide

Height: 150 – 160cm — we recommend — size X-Small
Height: 160 – 175cm — we recommend — size Small
Height: 175 – 185cm — we recommend — size Medium
Height: 185 – 195cm — we recommend — size Large
Height: 195 – 205cm — we recommend — size X-Large

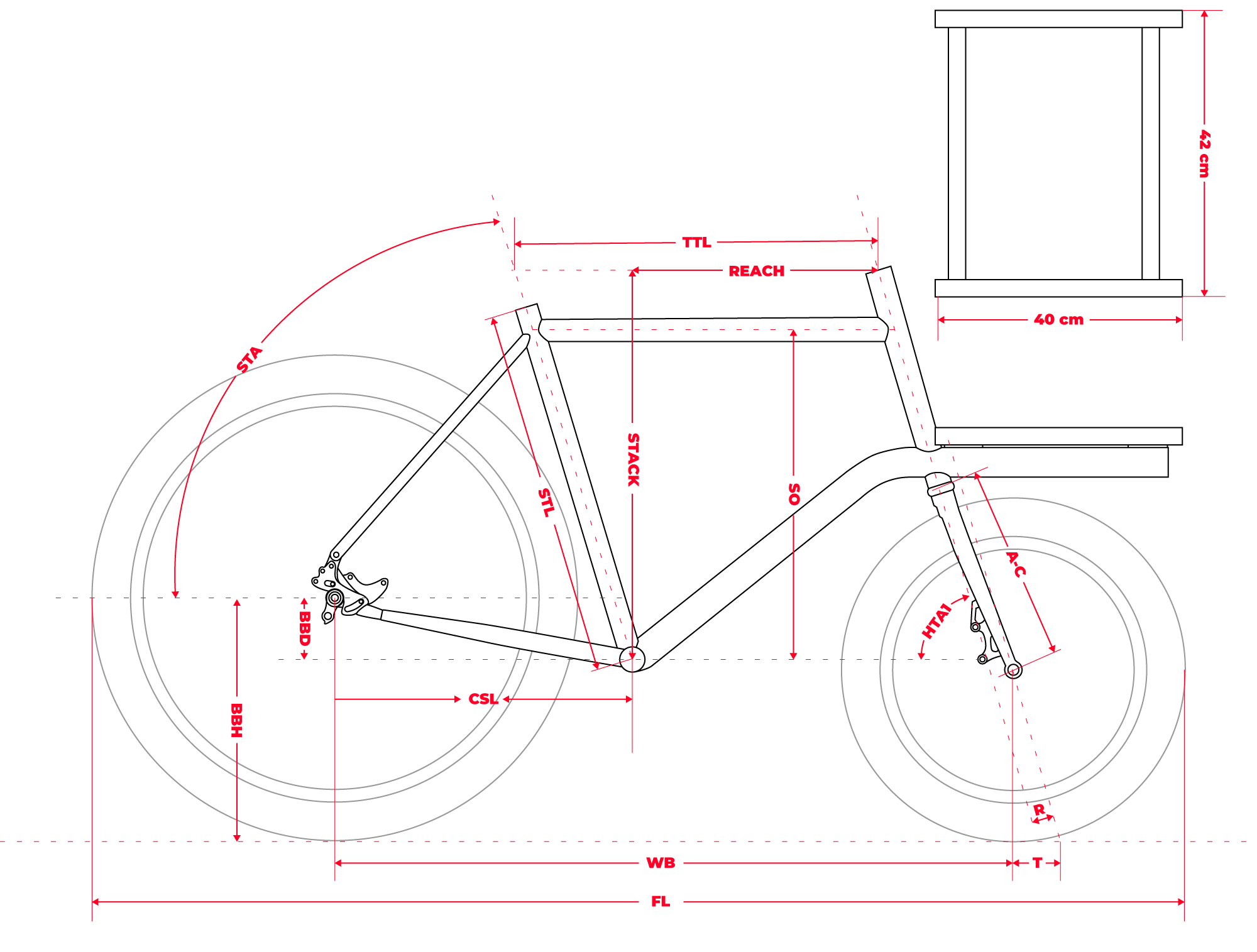

Geometry

Ti Mini Wifi 2021 XS (49.5) S (52) M (54) L (57) XL (60)
STL – seat tube length (c-t) 495 mm 520 mm 540 mm 570 mm 600 mm
TTL – top tube length
(c-c / actual)
505 mm 520 mm 540 mm 570 mm 600 mm
Stack 528 mm 552 mm 572 mm 601 mm 630 mm
Reach 347 mm 355 mm 369 mm 390 mm 411 mm
SO – standover height 745 mm 767 mm 786 mm 815 mm 844 mm
BBH – bottom bracket height 288 mm 288 mm 288 mm 288 mm 288 mm
BBD – bottom bracket drop 81 mm 81 mm 81 mm 81 mm 81 mm
STA – seat tube angle 73.5° 73.5° 73.5° 73.5° 73.5°
HTA1 – head tube angle rear 73.5° 73.5° 73.5° 73.5° 73.5°
WB – wheelbase 990
mm
1006 mm 1026 mm 1057 mm 1086 mm
A-C – axle to crown 298 mm 298 mm 298 mm 298 mm 298 mm
R – rake 45 mm 45 mm 45 mm 45 mm 45 mm
T – trail 31 mm 31 mm 31 mm 24 mm 21 mm
CSL – chainstay length 462 – 479 mm 462 – 479 mm 462 – 479 mm 462 – 479 mm 462 – 479 mm
FL – full bike length 1610 mm 1636 mm 1656 mm 1686 mm 1715 mm

Component List Sram Apex 11

BrakesSram Level TL, IS mount, 160mm rotor front and rear
GearsSram Apex 11 SPD, Sram PG1130 cassette 11-42, SRAM PC-1130 chain
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seatpost31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GripsOmnium lock-on, black, foam
CranksetDriveline, 42t, CNC Narrow Wide Chainring
Bottom BracketFSA, Square Taper, 68mm BSA
Headset/sVP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
SaddleOmnium CroMo Leather Saddle
TyresSchwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.
WheelsOmnium WiFi Wheelset: 12 x 142mm thru axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
KickstandOmnium, cast aluminium twin-leg
PedalsOmnium BMX plastic platform, black
MudguardsWiFi 60mm wide matte black

Frame Specifications

Frame materialTitanium
5 SizesXS, S, M, L, XL
GearsFor 1x rear derailleur gear system
Seat post diameter31.6 mm
Seat post clamp size34.9 mm
Rear wheelTA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
Front wheel406, 15 x 100 mm spacing, disc only
Tyre clearance, front55mm with mudguards
Tyre clearance, rear55mm with mudguards
Thru Axle Rear12×142, 167mm long, 21mm thread length. 1.75mm pitch
Thru Axle Front15×100, 125mm long, 17mm thread length, 1.5mm pitch
Bottom bracketBSA 68mm
Headset1 1/8″ Ahead
Q-Factor/Stance145mm
Rack dimensions40cm x 42cm, made of Aluminum
Standard rack weight1320g +/-
Rack bolt sizeM8 x 15mm
Weight
Recommended maximum loading weight including rider150 kg

Framekit includes– Frame
– Fork
– Headsets (front and rear)
– Steering rod
– Steerer tube
– Seat clamp
– Rack
– Thru axles front
– Comes with a choice of qr dropouts ore 12mm thru axle dropouts and thru axle

Does NOT include spacers for headset or kickstand
