Description

The Cargo is an incredibly versatile, lightweight and fast cargo bike that can handle heavy loads and big objects with ease.

The best part is, it rides like a normal bike when unloaded, due to it‘s clever construction and familiar geometry.

The Cargo is also the model with the long-est wheelbase, which calls for very stable handling. The wheelbase also allows for great stability when loading the rack on your own, as the weight is positioned in the middle of the front wheel and the kickstand.

Need to pick up your new dream sofa? Easy. Bringing your kid to the daycare before work? No problem! Bring a computer for work or a change of clothes for the gym in a waterproof duffle and you‘re good to go, rain or shine, all year long.

Wan’t just the frame kit click here!

Titanium On-Demand 2024 Schedule

The order window for Titanium bikes will be open in the following periods through 2024

On-Demand
Q1 2024
March 1st.March 14th.
On-Demand
Q2 2024
June 1st.June 14th.
On-Demand
Q3 2024
September 1st.September 14th.
On-Demand
Q4 2024
December 1st.December 14th.

Design

The true work horse of the fleet, but in Titanium! Adjustable rocker dropouts with a belt split, and 55mm tire clearance.

Please note complete bikes will be specced with Sram brakes and gears.

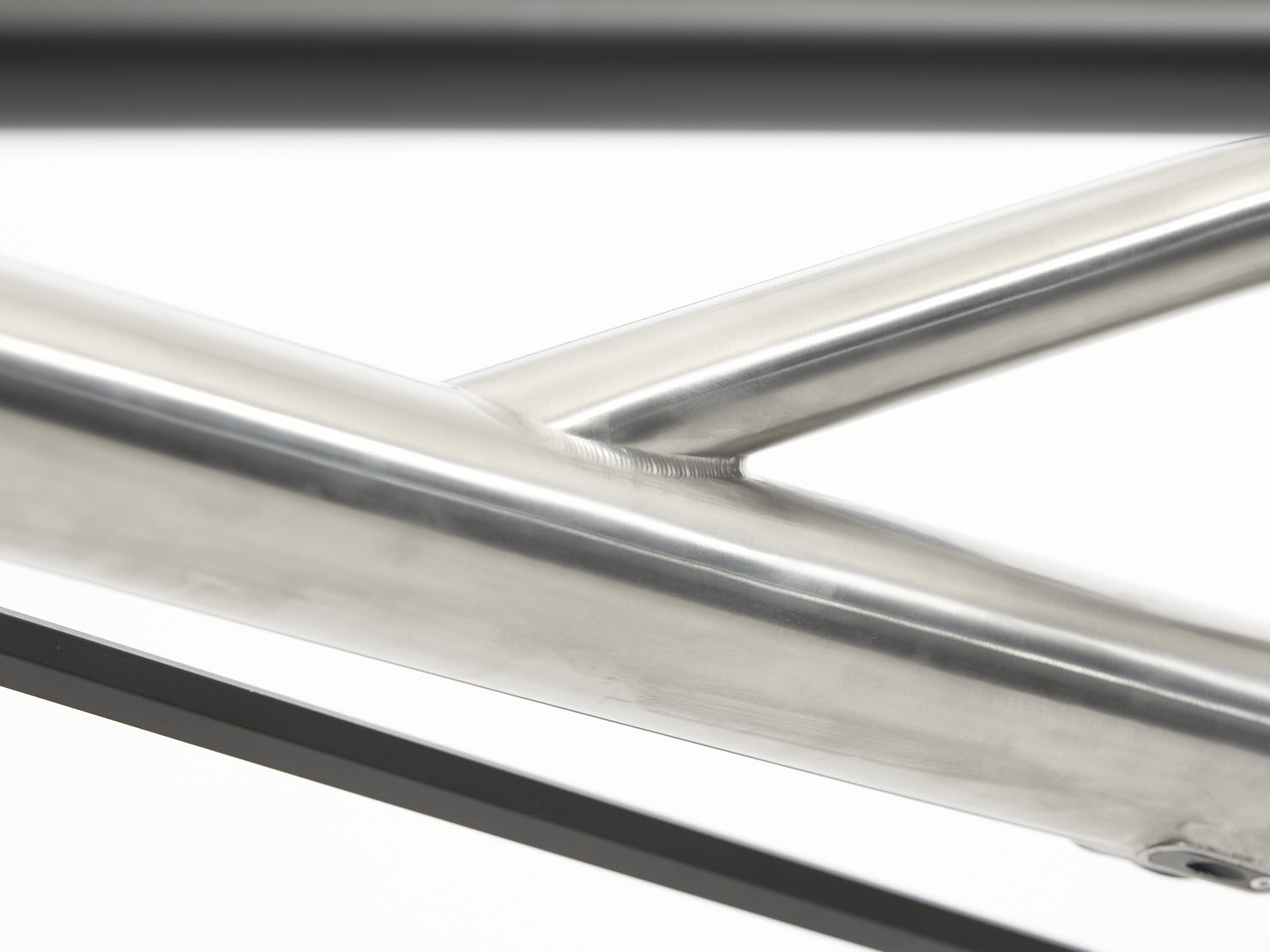

Titanium is an amazing material for bike frames due to its very unique qualities. It simply will not rust in any normal atmospheric conditions, not even with road salt, scratches or dents. It doesn’t need painting or coating, and doesn’t suffer from fatigue cracking. It’s much lighter than steel, and still really comfortable to ride with a perfect ratio of stiffness, strength and durability. Of course, it’s more expensive than steel, but then again, it will probably outlast the human race. Steel is real, but Titanium is realer!

Size & Geometry Guide

Height: 150 – 160cm — we recommend — size X-Small
Height: 160 – 175cm — we recommend — size Small
Height: 175 – 185cm — we recommend — size Medium
Height: 185 – 195cm — we recommend — size Large
Height: 195 – 205cm — we recommend — size X-Large

Weight Guide

ModelCargo V3Cargo V3IRMini-Max V3Mini-Max V3IRMini V3Mini V3IR
MaterialSteelTitaniumSteelTitaniumSteelTitanium
Frame Kit10,0 KG7,2 KG9,0 KG7,0 KG6,2 KG5,1 KG
Apex20,0 KG17,7 KG19,0 KG17,5 KG18,0 KG16,8 KG
Shimano 11s20,0 KG17,7 KG19,0 KG17,5 KG18,0 KG16,8 KG
Alfine 820,0 KG17,7 KG19,0 KG17,5 KG18,0 KG16,8 KG

All weights are based on a size medium.

All weights are +/- 250 g.

Geometry

Ti Cargo WiFi 2021 XS (49.5) S (52) M (54.5) L (57) XL (60)
STL – seat tube length (c-t) 495 mm 520 mm 545 mm 570 mm 600 mm
TTL – top tube length
(c-c / actual)
505 mm 520 mm 545 mm 570 mm 600 mm
Stack 532 mm 557 mm 581 mm 605 mm 634 mm
Reach 349 mm 357 mm 375 mm 393 mm 415 mm
SO – standover height 745 mm 769 mm 793 mm 817 mm 846 mm
BBH – bottom bracket height 288 mm 288 mm 288 mm 288 mm 288 mm
BBD – bottom bracket drop 81 mm 81 mm 81 mm 81 mm 81 mm
STA – seat tube angle 73.5° 73.5° 73.5° 73.5° 73.5°
HTA1 – head tube angle rear 74.5° 74.5° 75° 75° 75.5°
HTA2 – head tube angle front 74.5° 74.5° 75° 75° 75.5°
WB – wheelbase 1578 mm 1590 mm 1611 mm 1632 mm 1657 mm
A-C – axle to crown 298 mm 298 mm 298 mm 298 mm 298 mm
R – rake 45 mm 45 mm 45 mm 45 mm 45 mm
T – trail 26 mm 26 mm 24 mm 24 mm 21 mm
CSL – chainstay length 462 – 479 mm 462 – 479 mm 462 – 479 mm 462 – 479 mm 462 – 479 mm
FL – full bike length 2208 mm 2220 mm 2241 mm 2262 mm 2286 mm

Component List Sram Apex 11

BrakesSram Level TL, IS mount, 160mm rotor front and rear
GearsSram Apex 11 SPD, Sram PG1130 cassette 11-42, SRAM PC-1130 chain
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seatpost31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GripsOmnium lock-on, black, foam
CranksetDriveline, 42t, CNC Narrow Wide Chainring
Bottom BracketFSA, Square Taper, 68mm BSA
Headset/sVP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
SaddleOmnium CroMo Leather Saddle
TyresSchwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.
WheelsOmnium WiFi Wheelset: 12 x 142mm thru axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
KickstandOmnium, cast aluminium twin-leg
PedalsOmnium platform pedals, black
MudguardsWiFi 60mm wide matte black

Complete Cargo Apex 11 weighs: 17.7kg

Components List Alfine 8 W. Beltdrive

BrakesSram Level TL, IS mount, 160mm rotor front and rear
GearsShimano Alfine, 8 speed, centerlock disc mount
Sprockets / BeltGates CDX 22t rear sprocket, Gates CDN 50t front sprocket, 122t CDX belt
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seatpost31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GripsOmnium lock-on, black, foam
Crankset / BBGates CDN 170mm cranks, 122mm square tapered bottom bracket
Headset/sVP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
SaddleOmnium CroMo Leather Saddle
TyresSchwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.
WheelsOmnium WiFi Wheelset: 10 x 130mm qr axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
KickstandOmnium, cast aluminium twin-leg
PedalsOmnium platform pedals, black
MudguardsWiFi 60mm wide matte black

Components List Shimano 11 Spd

Choose Shimano 11 Speed with MT500 brakes for reliable performance. The Shimano drivetrain offers smooth, precise shifting, ideal for varied terrain. Combined with MT500 brakes, you get powerful, consistent stopping power. This combination ensures durability, easy maintenance, and top-notch control, perfect for the casual rider.

BrakesShimano MT500, IS mount, 160mm rotor front and rear
GearsShimano Deore M5100 11 SPD, Shimano SLX 11-40T cassette, KMC 11 SPD chain EPT
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seatpost31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GripsOmnium lock-on, black, foam
CranksetDriveline, 42t, CNC Narrow Wide Chainring
Bottom BracketFSA, Square Taper, 68mm BSA
Headset/sVP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
SaddleOmnium Standard Saddle
TyresSchwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.
WheelsOmnium WiFi Wheelset: 12 x 142mm thru axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
KickstandOmnium, cast aluminium twin-leg
PedalsCast metal platform, black
MudguardsWiFi 60mm wide matte black

Frame Specifications

MaterialTitanium
5 SizesXS, S, M, L, XL
Standard Rack Weight1320g +/-
Rack dimensions83cm x 50cm
Rack bolt sizeM10 x 15mm
Frame Kit Weight(Large)7.2kg (Including Rack, Steerer Tube & Rod, Fork, Drop Outs, Head Sets & Axles)
Seat post diameter31.6mm
Seat post clamp size34.9mm
Rear WheelTA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
Front Wheel406, 15 x 100mm spacing, disc only
Tyre clearance, front55mm with mudguards
Tyre clearance, rear55mm with mudguards
Thru Axle Rear12×142, 167mm long, 21mm thread length. 1.75mm pitch
Thru Axle Front15×100, 125mm long, 17mm thread length, 1.5mm pitch
Fork headset1 1/8″ Threaded Integrated with locking cap
Steerer headset1 1/8″ Ahead
Bottom BracketBSA 68mm
GearsFor 1x rear derailleur gear system
Cable GuideInternal Routing
Maximum loading weight on front rack85 kg
Maximum total loading weight incl. rider175 kg
