CXC

CXC

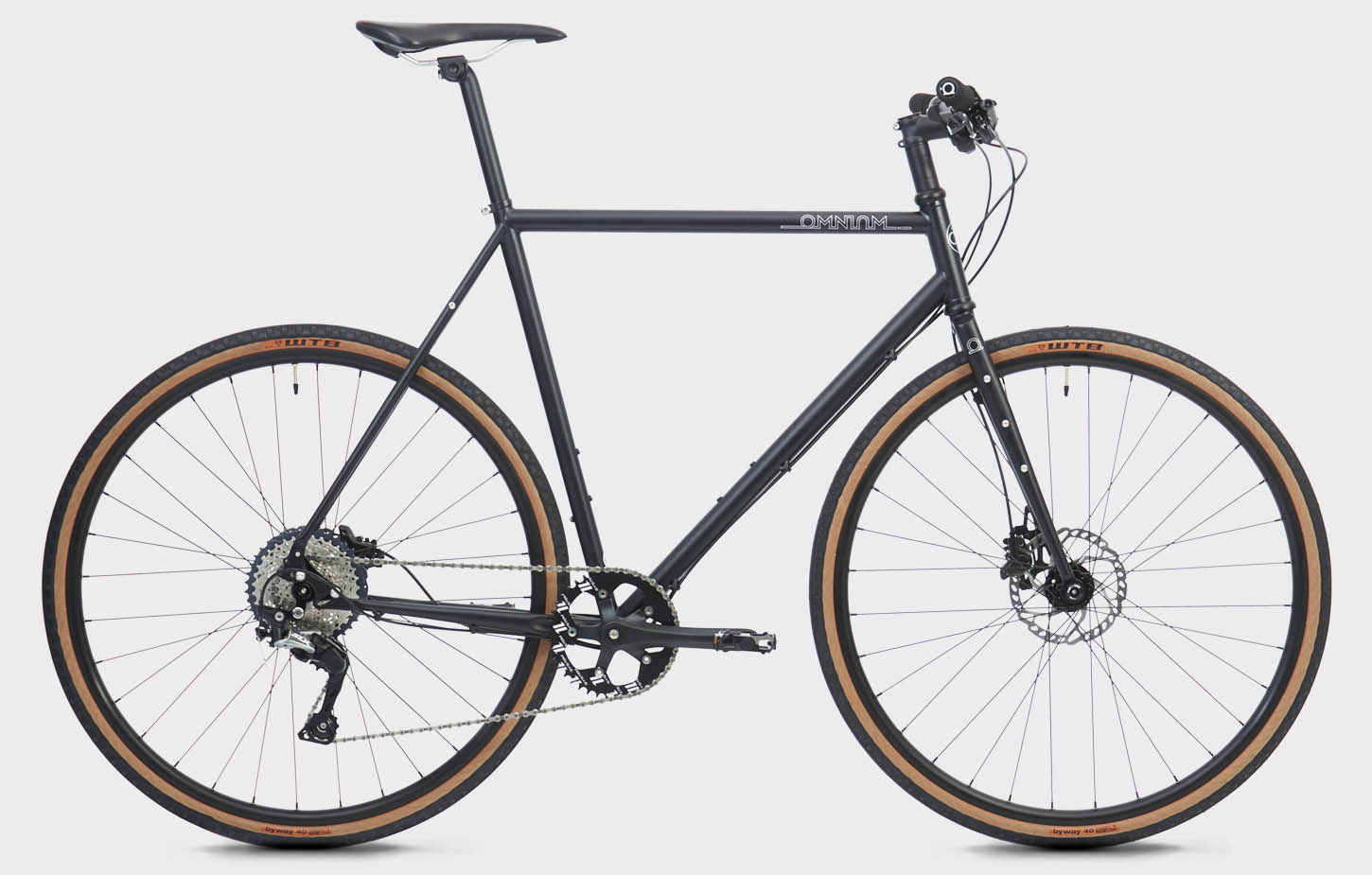

The Omnium CXC is a quick, agile and versatile bike with all sorts of possibilities. This bike can do pretty much anything you need it to. Gravel, cyclocross, world tour, alleycat or commute – The CXC will work for you.

The V3 features an adjustable rocker dropout letting you run singlepseed, internal gears, or a derailleur. The triple butted main triangle has varying tube thicknesses in all the right places in order to save weight, as well as an ED coating to hinder rust inside the tubes. The new segmented fork prevents fork judder under heavy braking, and lets you bolt cages to the fork legs.

The CXC is available in two versions: the trusted Cro-Mo 4130 version in a variety of different colours with an optional carbon fork upgrade, and the brushed Titanium version with a tapered carbon fork as standard. Run full mudguards and up to 45mm tires, racks, bags and go camping, or strip it down and mash out some kilometers of mixed terrain in turbo mode. There is nothing more versatile.

We offer complete bikes, fully assembled and ready to ride from our dealers – or order from our webshop and have your bike delivered WORLDWIDE with only minor assembly tasks left. We also offer frame-sets too so you can build your dream Omnium.

CXC Steel

The Omnium CXC is our tried and tested do it all bike. Elegant steel tubing, comfortable ride characteristics, with agility and versatility out of this world.

CXC Titanium

The Omnium CXC Titanium is the premium version of our trusted CXC bike, improving it even further with a super-light titanium frame and carbon fork. All parts are carefully selected and designed for a perfect cycling experience.


Geometry

 X-Small (51)Small (53)Medium (56)Large (59)X-Large (62)XXL (64)
Seat tube c-t510mm530mm560mm590mm620mm640mm
Effective top tube520mm535mm555mm576mm595mm610mm
Head tube angle73.5˚74˚74.4˚74.9˚74.9˚74,9˚
Seat tube angle76˚75.5˚74.9˚74.9˚74.9˚74˚
Stack491mm512mm542mm573mm602mm616mm
Reach396mm402mm409mm422mm434mm434mm
BB Drop58mm58mm58mm58mm58mm58mm


Paint Choices

This list represents our past paint selection. It does not account for availability. Please check the respective product page for that. For incoming, new colors please relate to our future stock page.

Glossy Afternoon Blue + Shiny Gold Logo
Glossy Blurple + Shiny Gold Logo
Glossy Diablo Red + Red Logo
Glossy Forest Green + Creamy Graphics
Glossy Galaxy Black + Metallic Graphics


COMPONENT LISTS

FLATBAR APEX 11

BrakesSram Level TL, IS mount, 160mm rotor front and rear
GearsSram Apex 11 SPD, Sram Force cassette 11-36, PYC 11s chain
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seatpost27.2mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GripsOmnium lock-on, black, foam
CranksetDriveline, 42t, CNC Narrow Wide Chainring
Bottom BracketFSA, Square Taper, 68mm BSA
Headset/sVP Components, sealed bearings, 1-1/8″
SaddleVelo, leather, Chro-mo
TyresDepending on availability
WheelsOmnium Wheelset 622 (700c)
PedalsCast metal platform, black

DROPBAR APEX 11

BrakesSram Apex 1, IS mount, 160mm rotor front and rear
GearsSram Apex 11 SPD, Sram Force cassette 11-36, PYC 11s chain
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
HandlebarHandlebar: 6061 aluminium, 440mm wide, 125mm drop, 70mm reach and 6 degrees of flare.
Seatpost27.2mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
Handlebar TapeOmnium Earth Pattern
CranksetDriveline, 42t, CNC Narrow Wide Chainring
Bottom BracketFSA, Square Taper, 68mm BSA
Headset/sVP Components, sealed bearings, 1-1/8″
SaddleVelo, leather, Chro-mo
TyresDepending on availability
WheelsOmnium Wheelset 622 (700c)
PedalsCast metal platform, black

SINGLE SPEED

BrakesSram Level TL, IS mount, 160mm rotor front and rear
SinglespeedSram PC830 chain & 15t SS adaptor
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seatpost27.2mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GripsOmnium lock-on, black, foam
CranksetDriveline, 42t, CNC Narrow Wide Chainring
Bottom BracketFSA, Square Taper, 68mm BSA
Headset/sVP Components, sealed bearings, 1-1/8″
SaddleVelo, leather, Chro-mo
TyresDepending on availability
WheelsOmnium Wheelset 622 (700c)
PedalsCast metal platform, black


FRAME SPECIFICATIONS

CXC V3

6 SizesXS (51), S (53), M(56), L (59), XL (62), XXL (64)
MaterialDouble-Butted Chromoly Steel Frame & Fork
GearsFor 1x rear derailleur gear system
Seat post diameter:27.2mm
Rear Wheel:TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
Front Wheel:622, 12 x 100mm spacing, disc only
Tyre clearance, front:45mm clearance with mudguards
Tyre clearance, rear:45mm clearance with mudguards (50mm chainstay clearence)
Thru Axle Rear12×142, 172mm long, 19mm thread length, 1.75mm pitch
Thru Axle Front12×100, 125mm, 17mm thread length, 1.5mm Pitch
Headset:1 1/8″ Ahead
Bottom Bracket:68mm BSA
Brake Mounts:IS brake mount front and rear, for minimum 160mm and max 180 rotors
Q-Factor145mm
Recommended maximum loading weight including rider:100 kg
