ON-DEMAND  – A new order procedure for Titanium.

You order – We manufacture – You ride

Order window See the 2024 order windows in the schedule below. Lead time is the time when production begins at our world class manufacturer in China, plus the time it takes to send the frames by sea. This time starts from when the order window closes, and takes approximately 5-6 months.

Description

The Omnium CXC stands for Cyclo Cross City, and does just that. Commute, gravel, cyclocross, world tour, or alleycat – the CXC will work for you.

With 700x45c tire clearance and triple cage fork mounts, this thing is even adventure ready! Adjustable dropouts let you run singlespeed, fixed, Internal gear hub, or a derailleur. It’s now also belt drive compatible!

We could go on about possibilities, but in short the CXC is a true Swiss Army knife. There is nothing more versatile.

Titanium On-Demand 2024 Schedule

The order window for Titanium bikes will be open in the following periods through 2024

On-Demand
Q1 2024
March 1st.March 14th.
On-Demand
Q2 2024
June 1st.June 14th.
On-Demand
Q3 2024
September 1st.September 14th.
On-Demand
Q4 2024
December 1st.December 14th.

Design

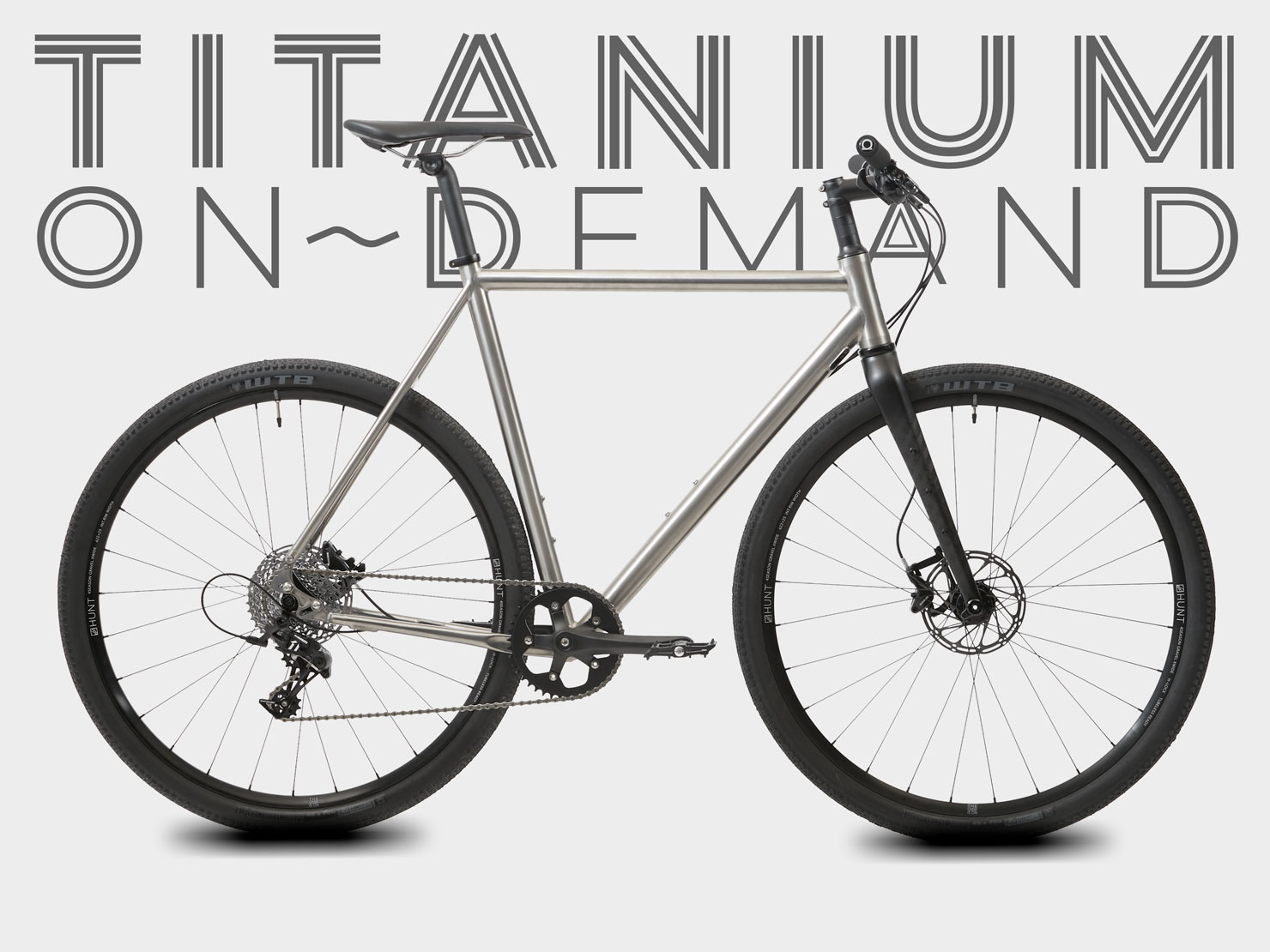

The Omnium CXC Titanium is the premium version of our classical CXC bike, improving it even further with a super-light titanium frame. All parts are carefully selected and designed for a perfect cycling experience.

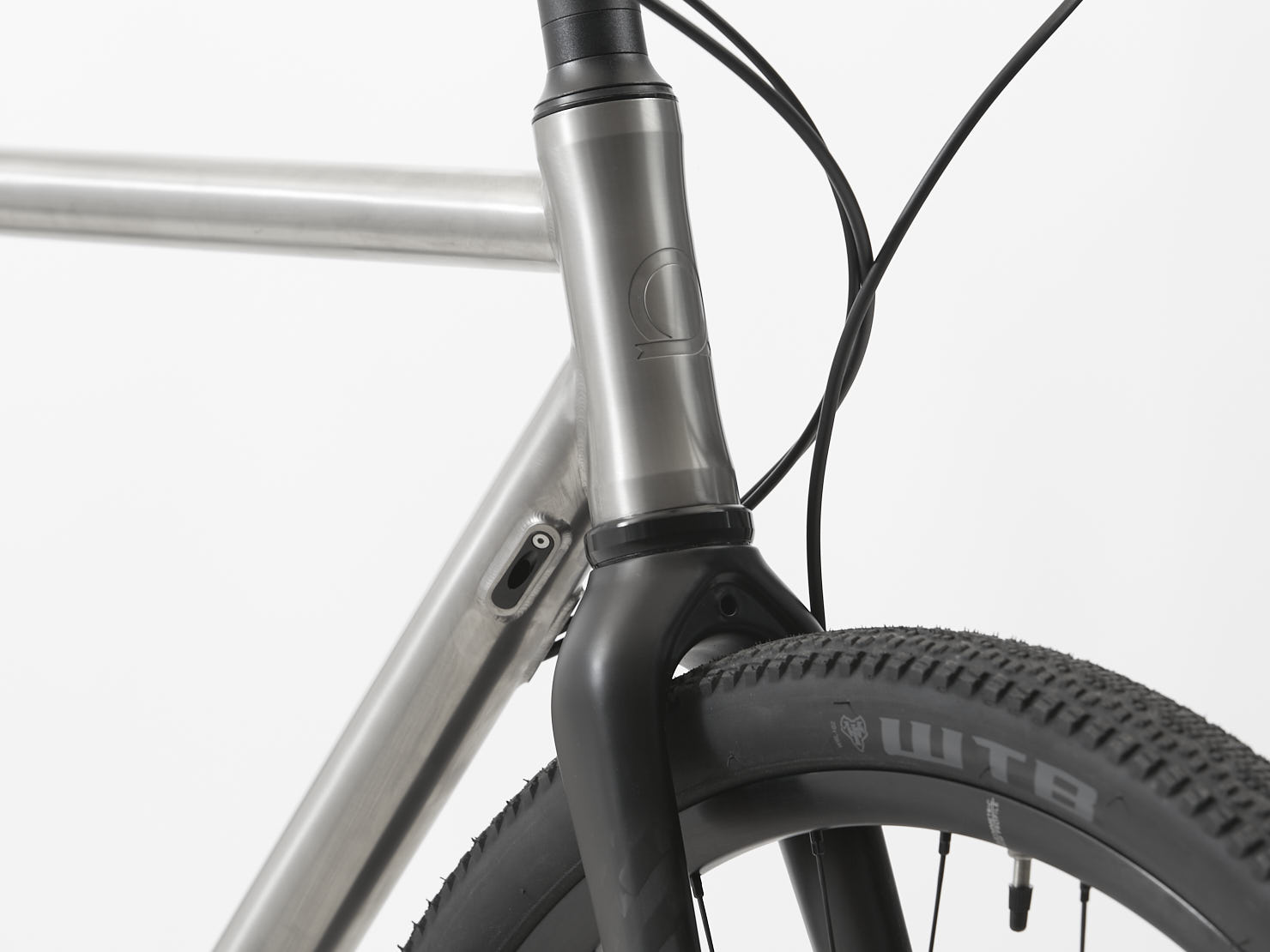

The fork features a straight blade design, matte 3k carbon weave, 100x12mm thru axle, mudguard eyelets, and triple cage mounts!

Titanium is an amazing material for bike frames due to its very unique qualities. It simply will not rust in any normal atmospheric conditions, not even with road salt, scratches or dents. It doesn’t need painting or coating, and doesn’t suffer from fatigue cracking. It’s much lighter than steel, and still really comfortable to ride with a perfect ratio of stiffness, strength and durability. Of course, it’s more expensive than steel, but then again, it will probably outlast the human race. Steel is real, but Titanium is realer!

Frame Specifications

5 SizesXS (51), S (53), M(56), L (59), XL (62)
MaterialTitanium Grade 9
GearsFor 1x rear derailleur gear system
Seat post diameter:31.6mm
Seat post clamp diameter34.9mm
Rear Wheel:TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
Fork: Carbon triple cage fork with 12x100mm thru-axle flatmount (post mount adapter included)
Front Wheel:622, 12 x 100mm spacing, disc only
Thru Axle Front 12×100, 132mm long, 1.5 pitch
Tyre clearance, front:45mm clearance with out mudguards(40mm with)
Tyre clearance, rear:45mm clearance with out mudguards (40mm with)
Thru Axle Rear12×142, 167mm long, 21mm thread length, 1,75 pitch

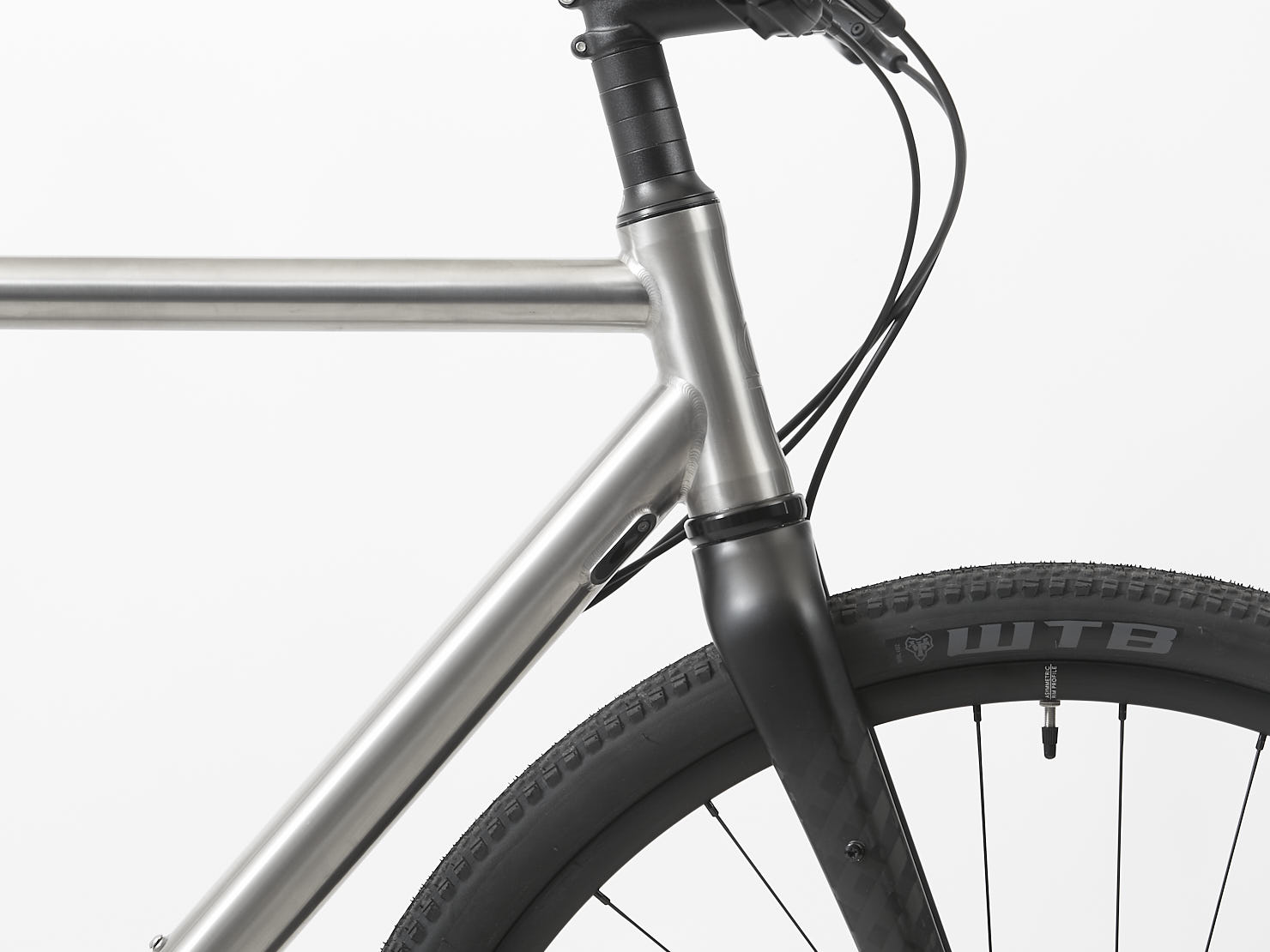

Headset:44mm Headtube for headset standard ZS44/28.6 – EC44/40
Bottom Bracket:68mm BSA
Cable Guide:Internal Routing

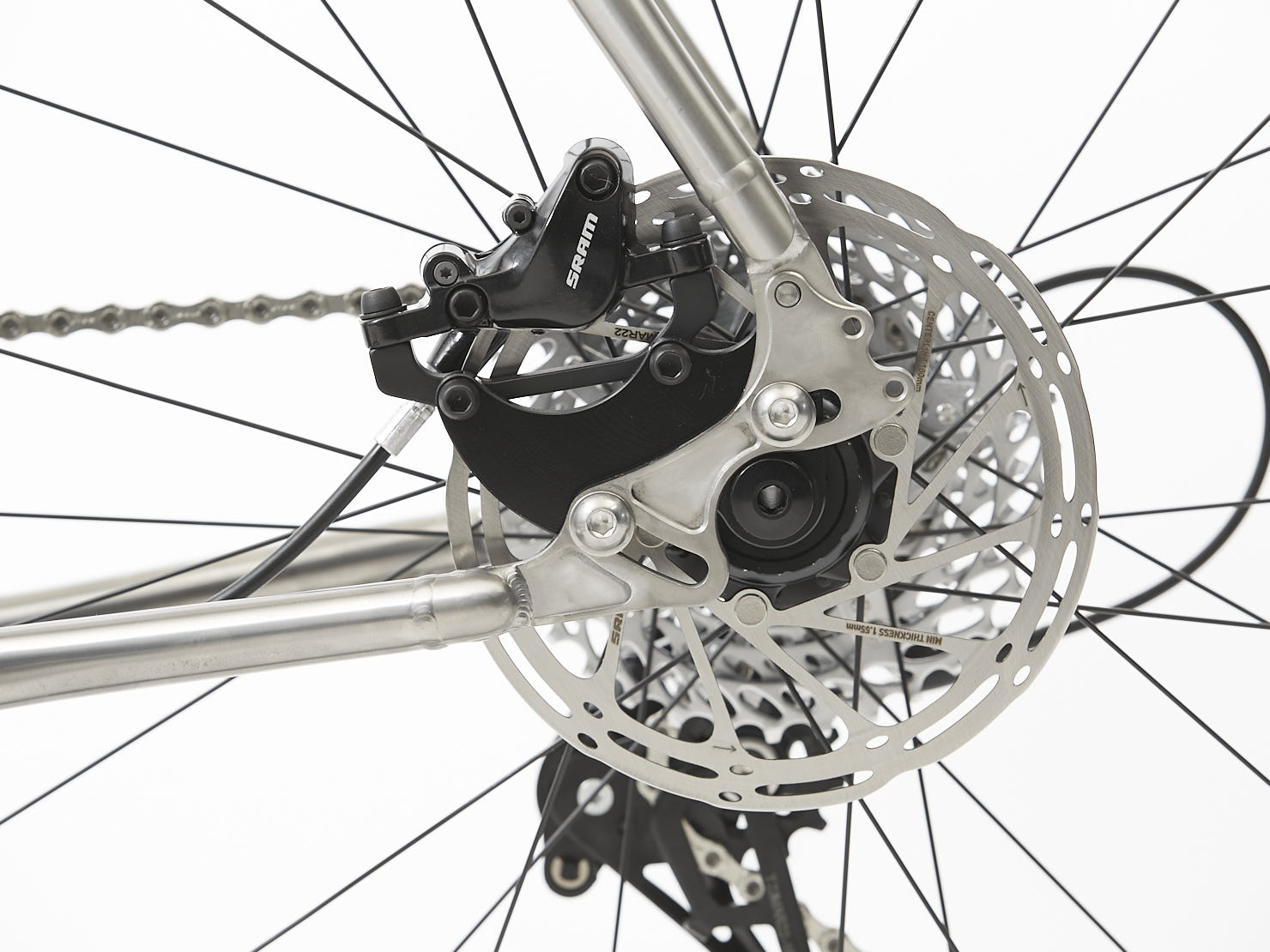

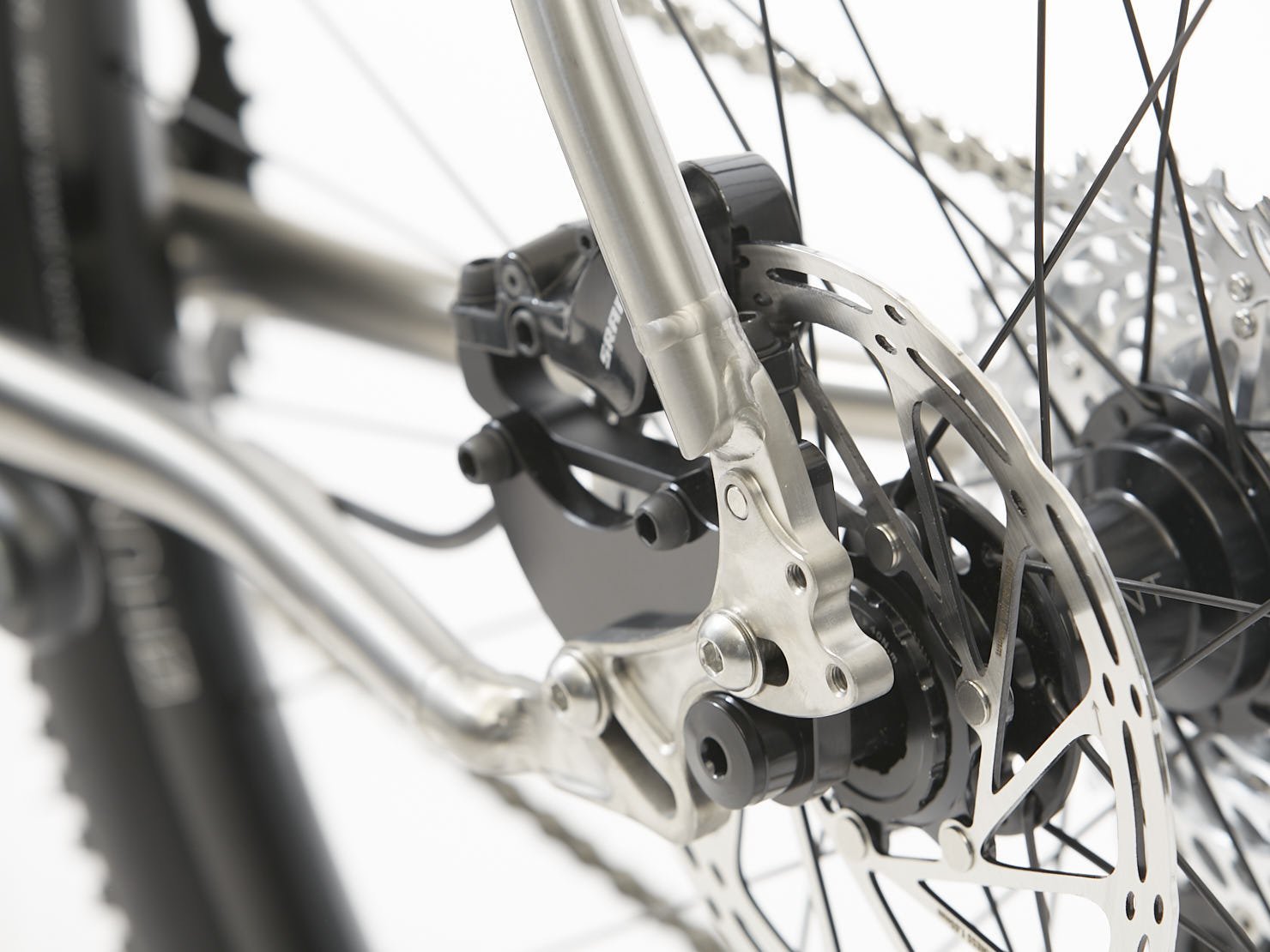

Rear Brake Mounts(Depending on inset choice):12mm Thru-Axle – IS
12mm Thru-Axle – Flatmount
10mm QR – IS
Recommended maximum loading weight including rider:100kg
Framekit weight(Large); Including Fork, Drop Outs & Axles2.7kg

Framekit includes: carbon fork, seat clamp, dropouts, front and rear axles.

No headset included

Geometry

CXC V3 (700x40c tires) (unit: millimeters) XS (51) S (53) M (56) L (59) XL (62) XXL (64)
STL – seat tube length (c-t) 510 530 560 590 620 640
TTL – top tube length (c-c / actual) 520 535 555 575 595 610
Stack 497 512 543 573 602 617
Reach 395 402 409 422 434 434
SOH – standover height 782 797 828 858 888 902
BBD – bottom bracket drop 58 58 58 58 58 58
STA – seat tube angle 76° 75.5° 75° 75° 75° 74°
HTA – head tube angle 73.5° 74° 74.5° 75° 75° 75°
HTL – head tube length 66 80 110 140 170 185
WB – wheelbase 977 985 996 1012 1032 1036
A-C – axle to crown 396 396 396 396 396 396
R – rake 45 45 45 45 45 45
T – trail 58 55 52 49 49 49
CSL – chainstay length 410-427 410-427 410-427 410-427 410-427 410-427

Size Guide

Height: 150 – 160cm — we recommend — size X-Small
Height: 160 – 175cm — we recommend — size Small
Height: 175 – 185cm — we recommend — size Medium
Height: 185 – 195cm — we recommend — size Large
Height: 195 – 205cm — we recommend — size X-Large

Component List / Ti Sram Apex 11

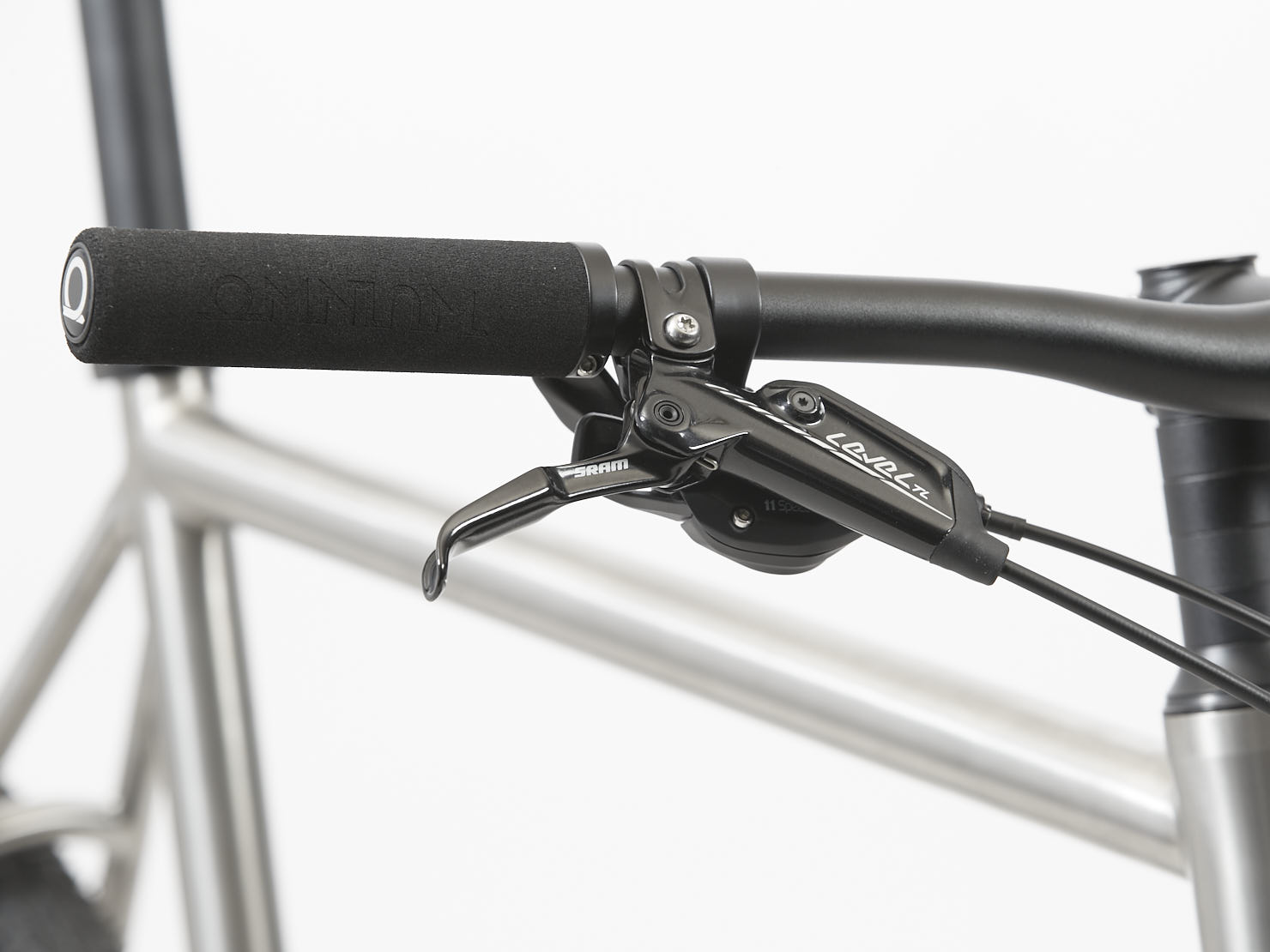

BrakesSram Level TL, IS mount, 160mm rotor front and rear
GearsSram Apex 11 SPD, Sram Force cassette 11-36, Sram PC-1130 11s chain
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seatpost31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GripsOmnium lock-on, black, foam
CranksetDriveline, 42t, CNC Narrow Wide Chainring
Bottom BracketFSA, Square Taper, 68mm BSA
Headset/sCane Creek 40 – ZS44/28,6/H8 | EC44/40/H12
SaddleVelo, leather, Chro-mo
TyresDepending on choice
WheelsDepending on choice
PedalsOmnium Platform Pedals

Component List / Ti Frame Kit

Framekit includesFrame
Carbon Fork
Seatpost clamp
Thru axles front
Comes with a choice of QR dropouts ore 12mm thru axle inserts and thru axle

Framekit Does NOT include a headset.
