V4 UPDATES
The CXC has been updated and it is now in its 4th iteration. With this new edition we have swapped the brake mounts for Flat Mount.

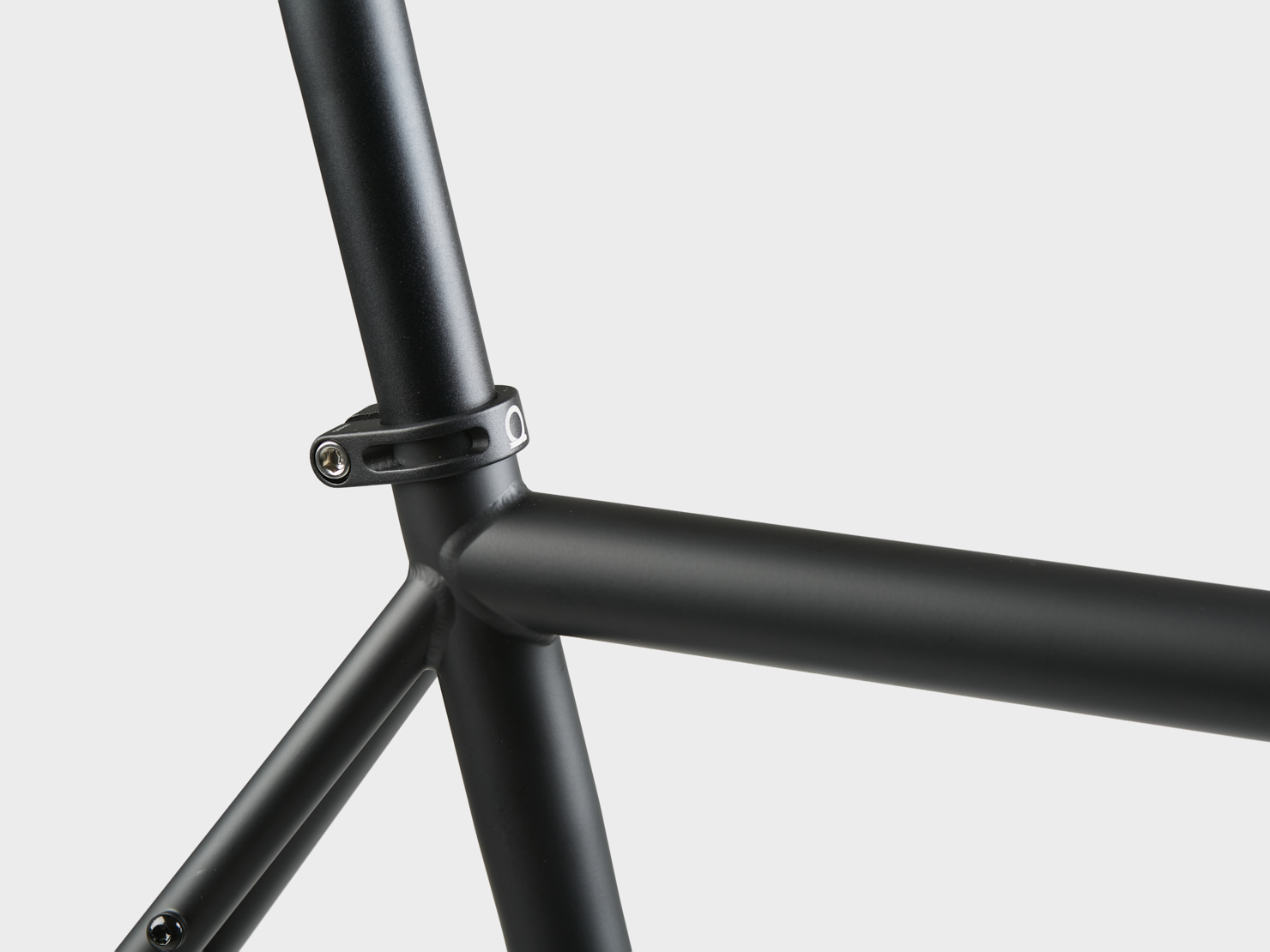

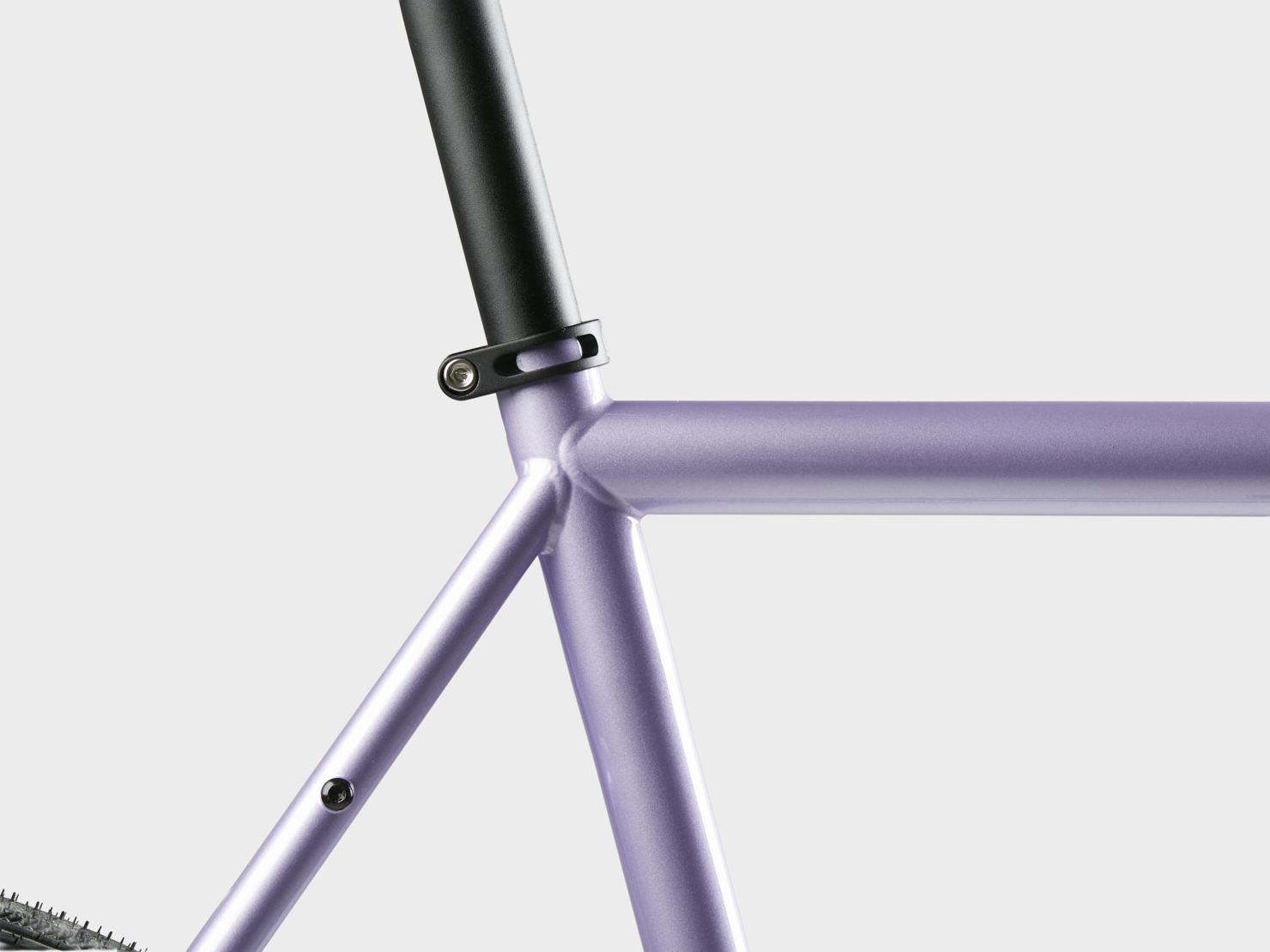

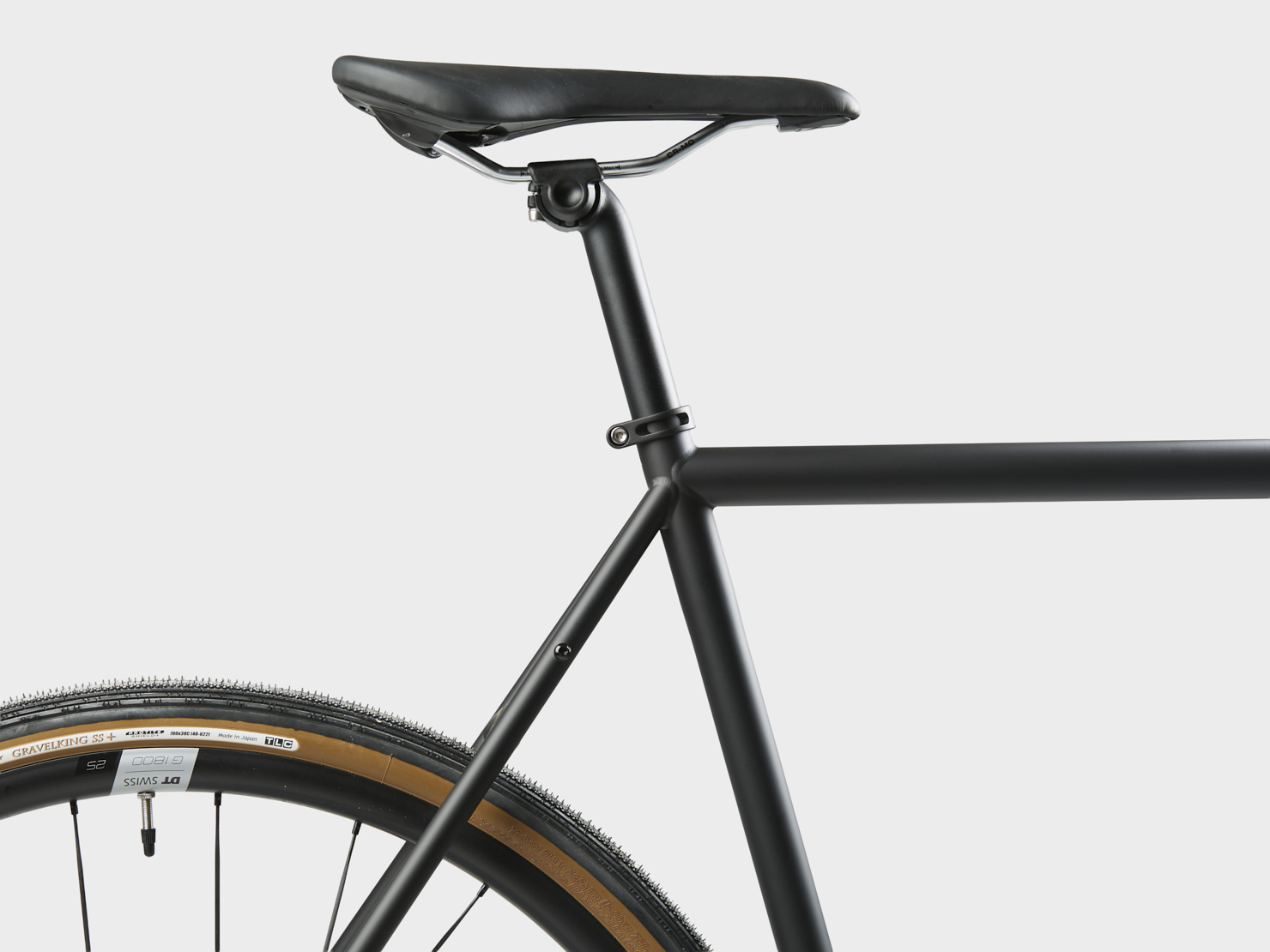

We have also swapped the traditional binder bolt for af collar that adds a more strength and replaceability should any thing brake.
A SWISS ARMY KNIFE

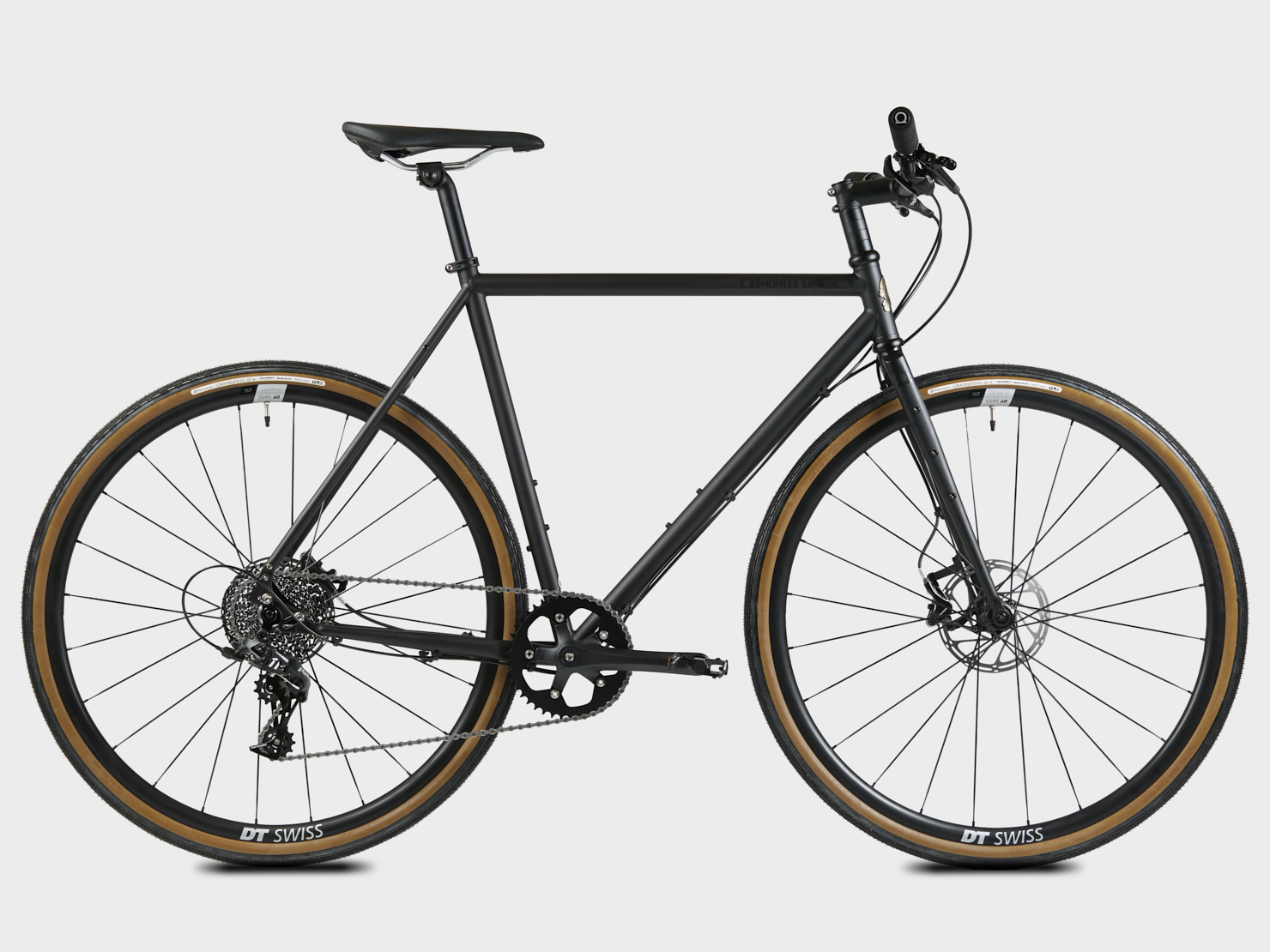

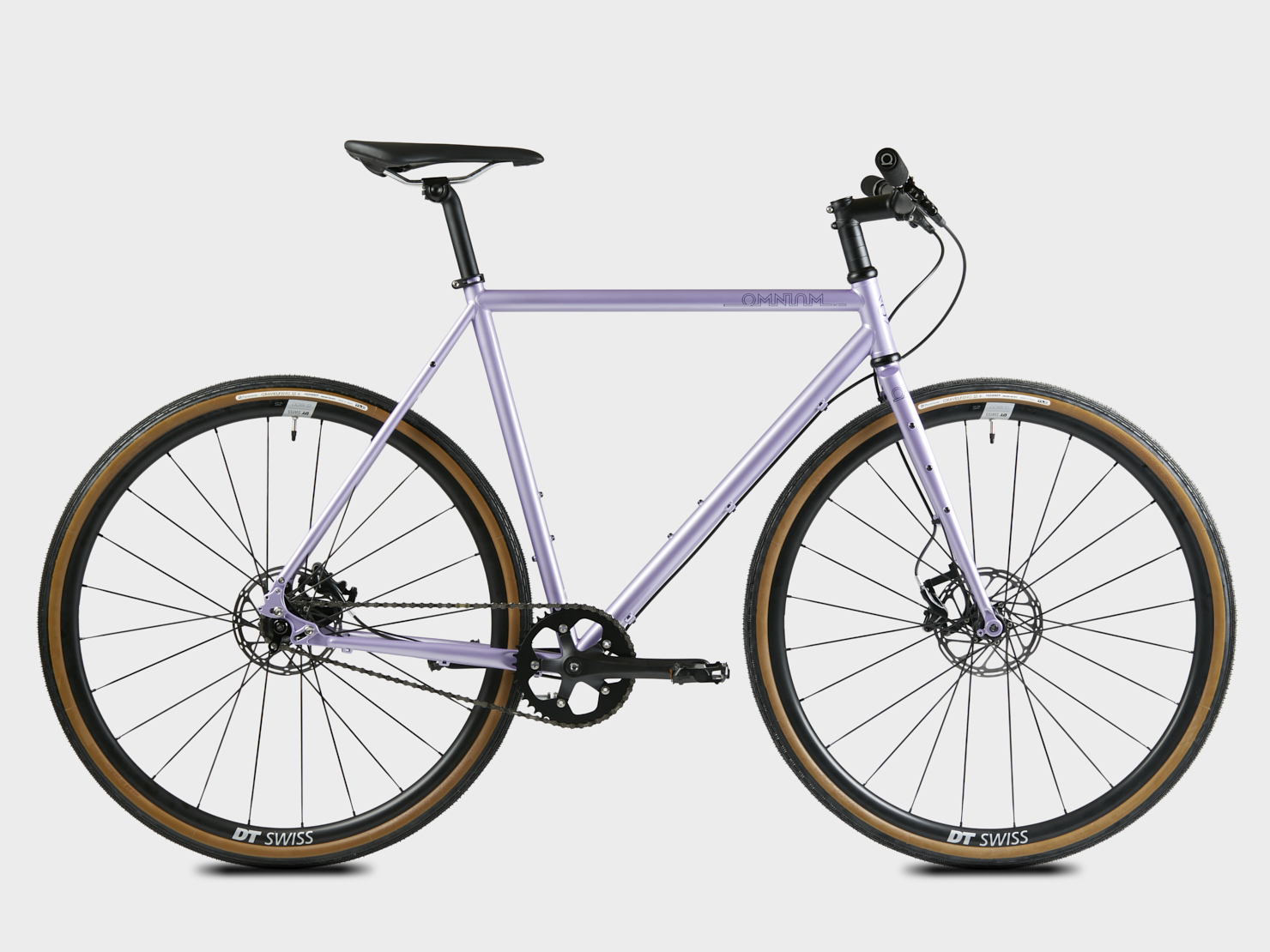

Meet the Omnium CXC, our most adaptable all-rounder. It’s built for riders who want a bike that handles city commutes, all road, and weekend adventures with ease.
The CXC combines the quick, responsive feel of a track bike with the clearance and mounts of an all road setup. It’s tough, agile, and ready to ride anywhere you want to go.

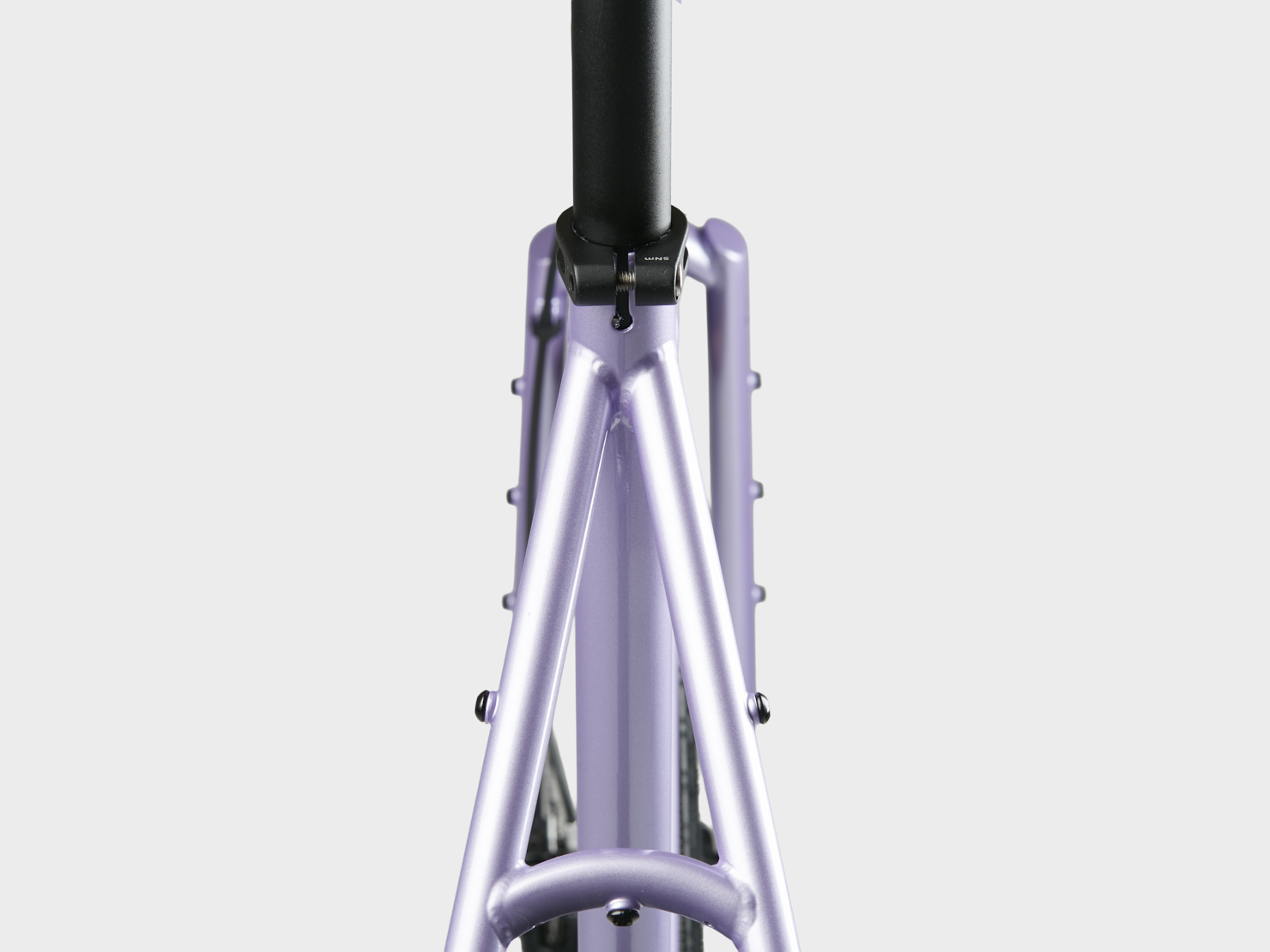

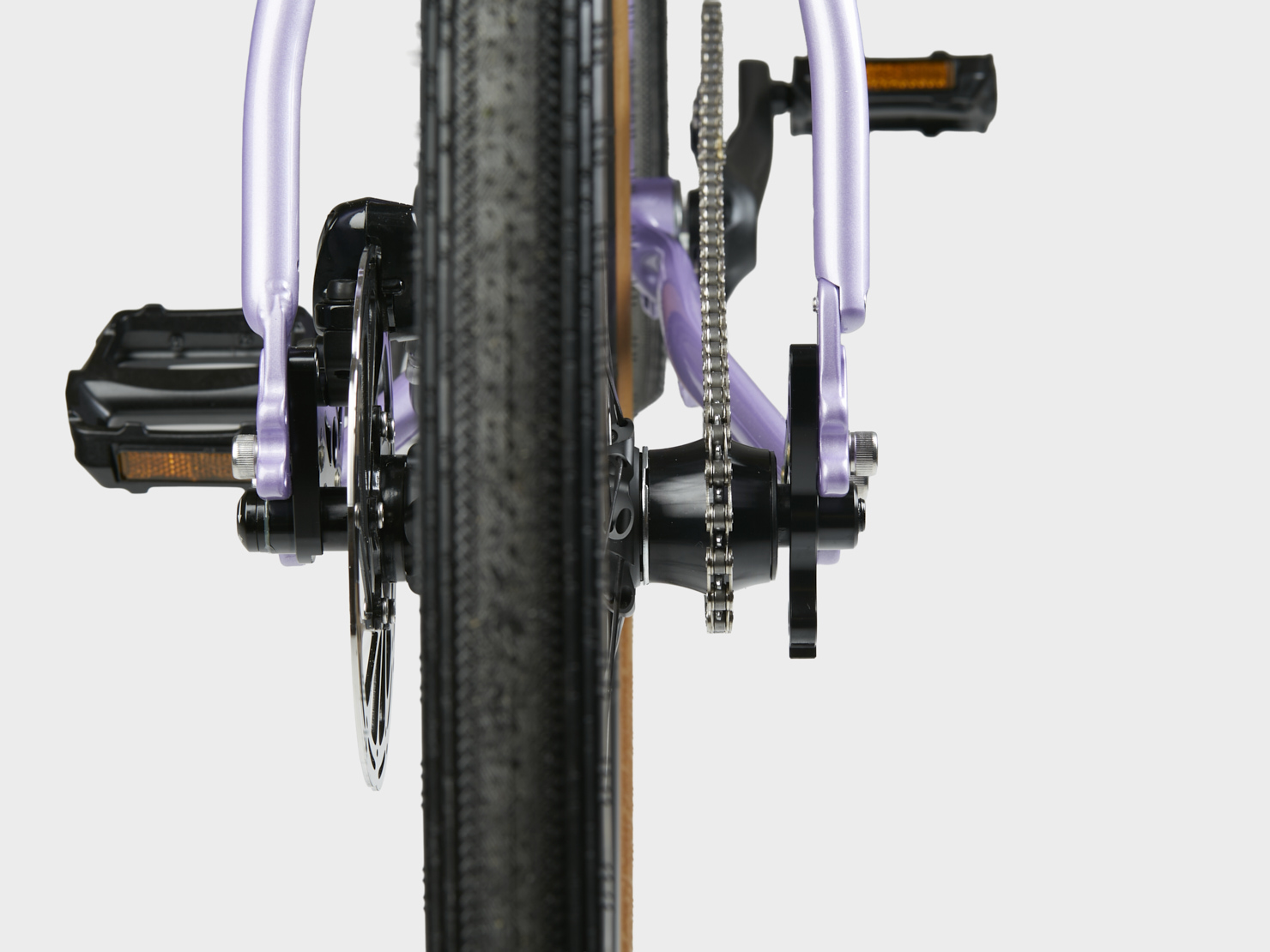

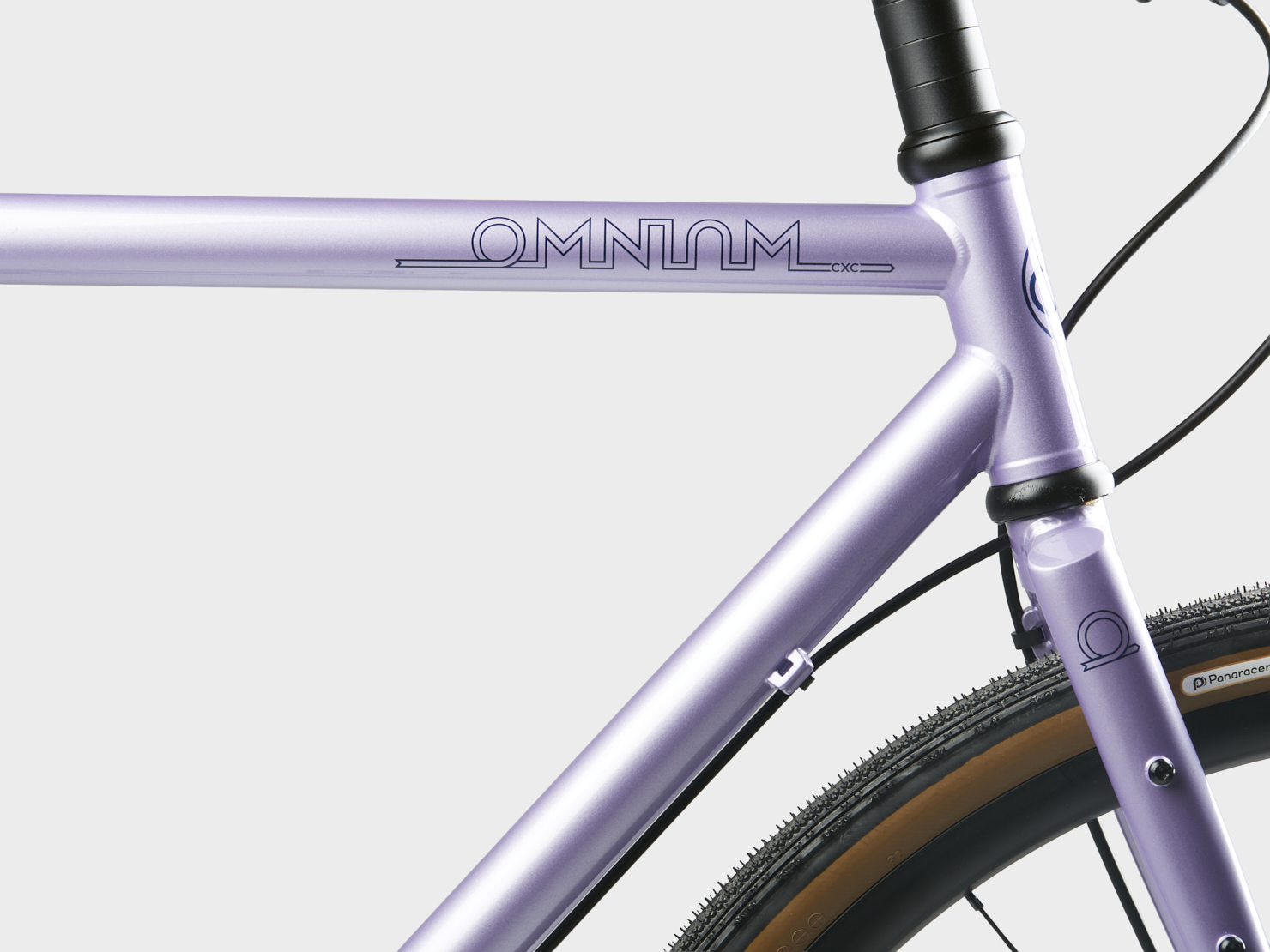

Made from double-butted steel, the frame balances everyday durability with a responsive feel. It’s ED-coated for extra protection against the elements, so you can ride year-round without worry. Adjustable rocker dropouts and a belt split let you choose your setup — geared, single-speed, or belt-drive.

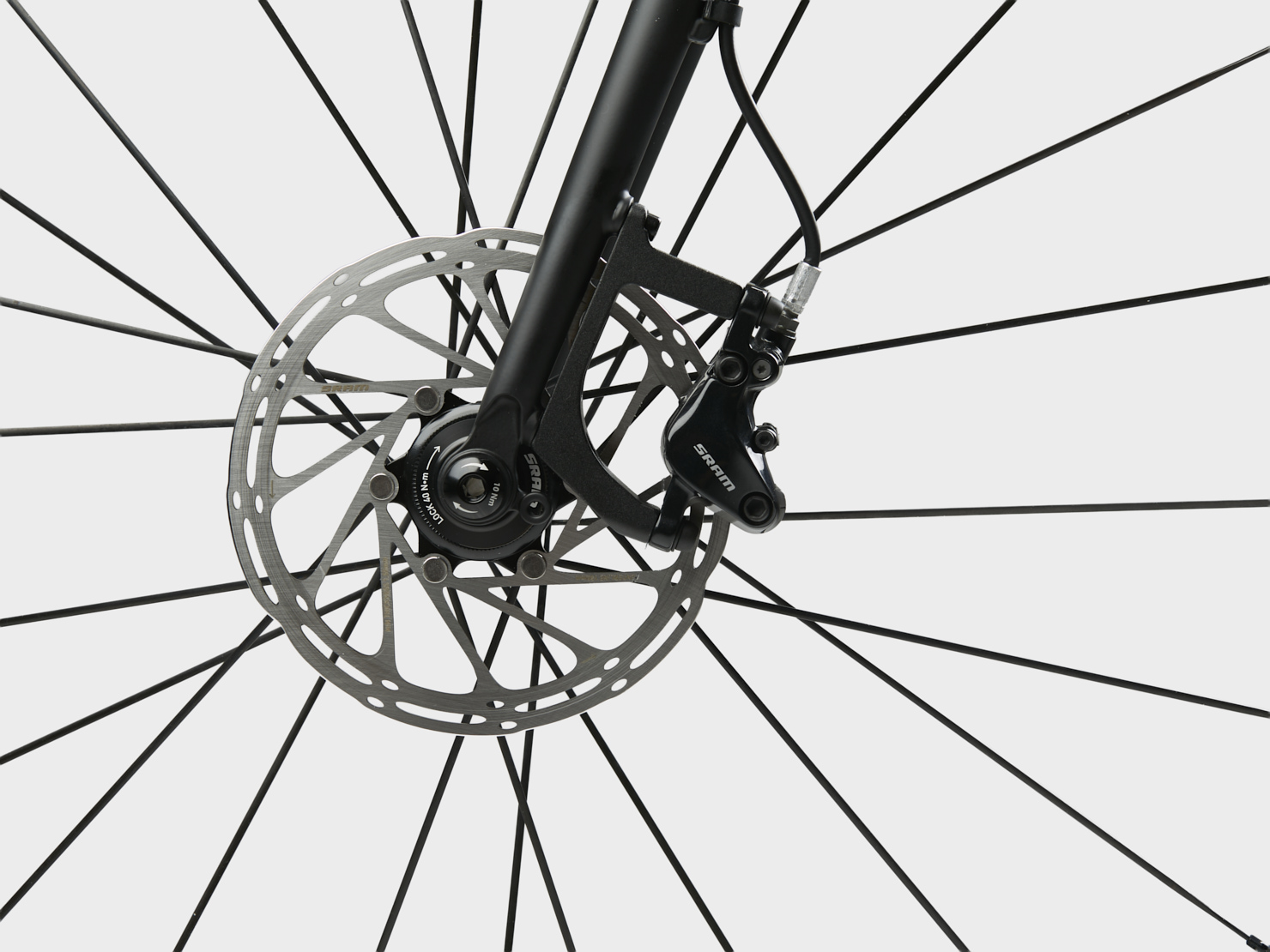

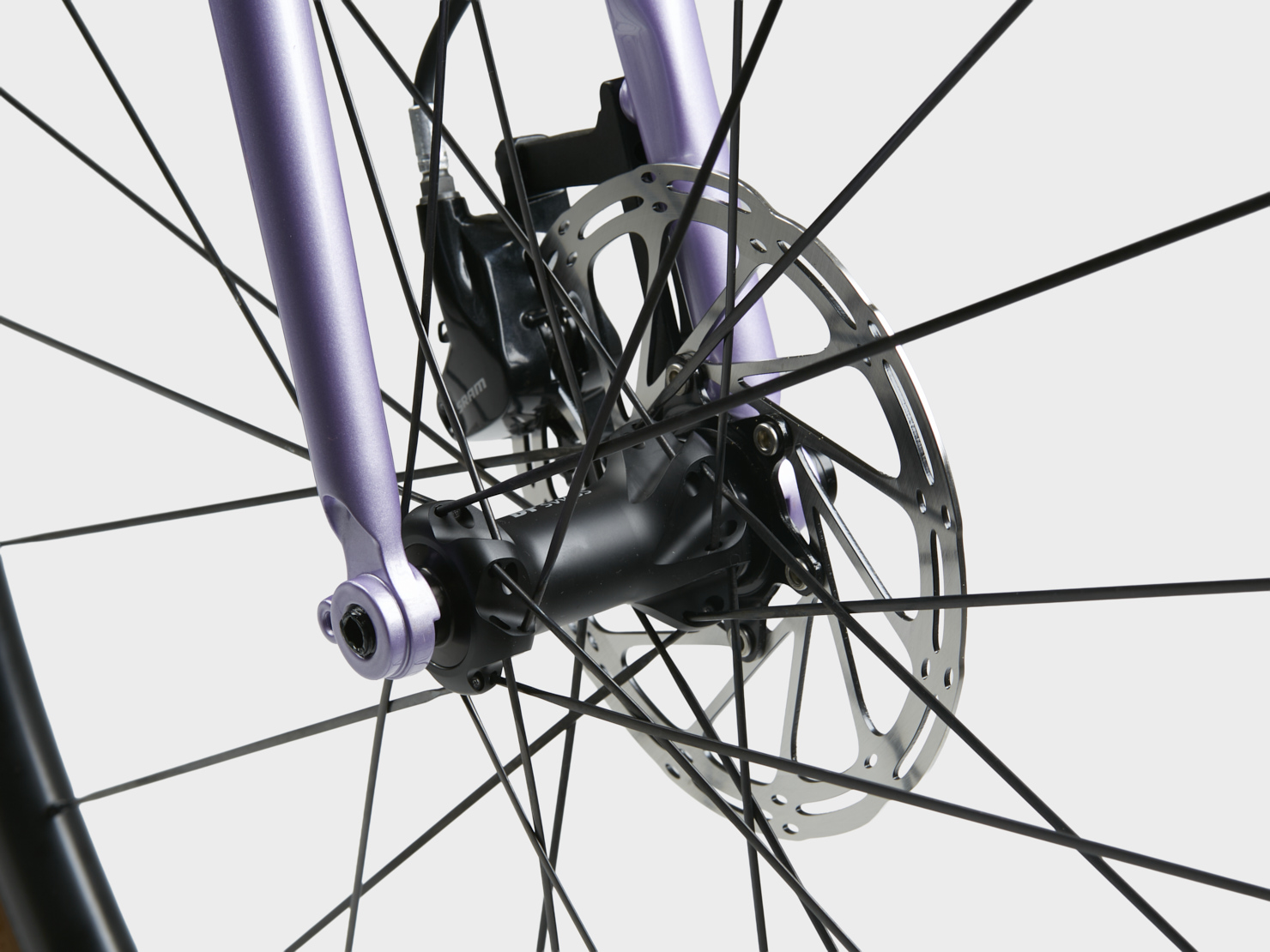

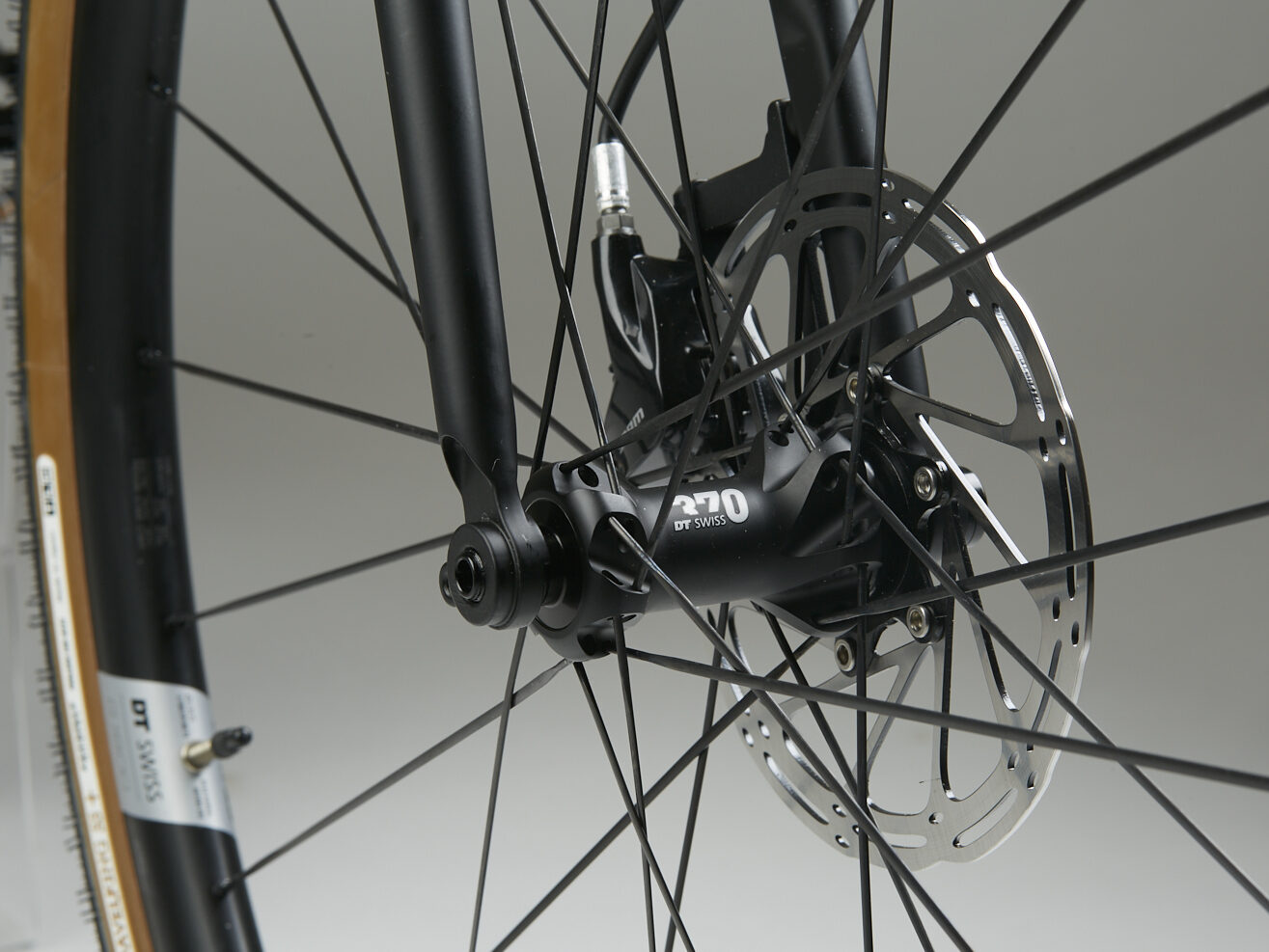

The segmented steel fork is designed for disc brakes and features triple cage mounts on both legs, giving you plenty of space for bottles or bags when you’re loading up. Add racks, fenders, and wide tires — the CXC is built to adapt to your needs.
Whether you’re tackling your daily commute, exploring back roads, or hitting the track, the CXC delivers a fast, agile, and reliable ride every time.

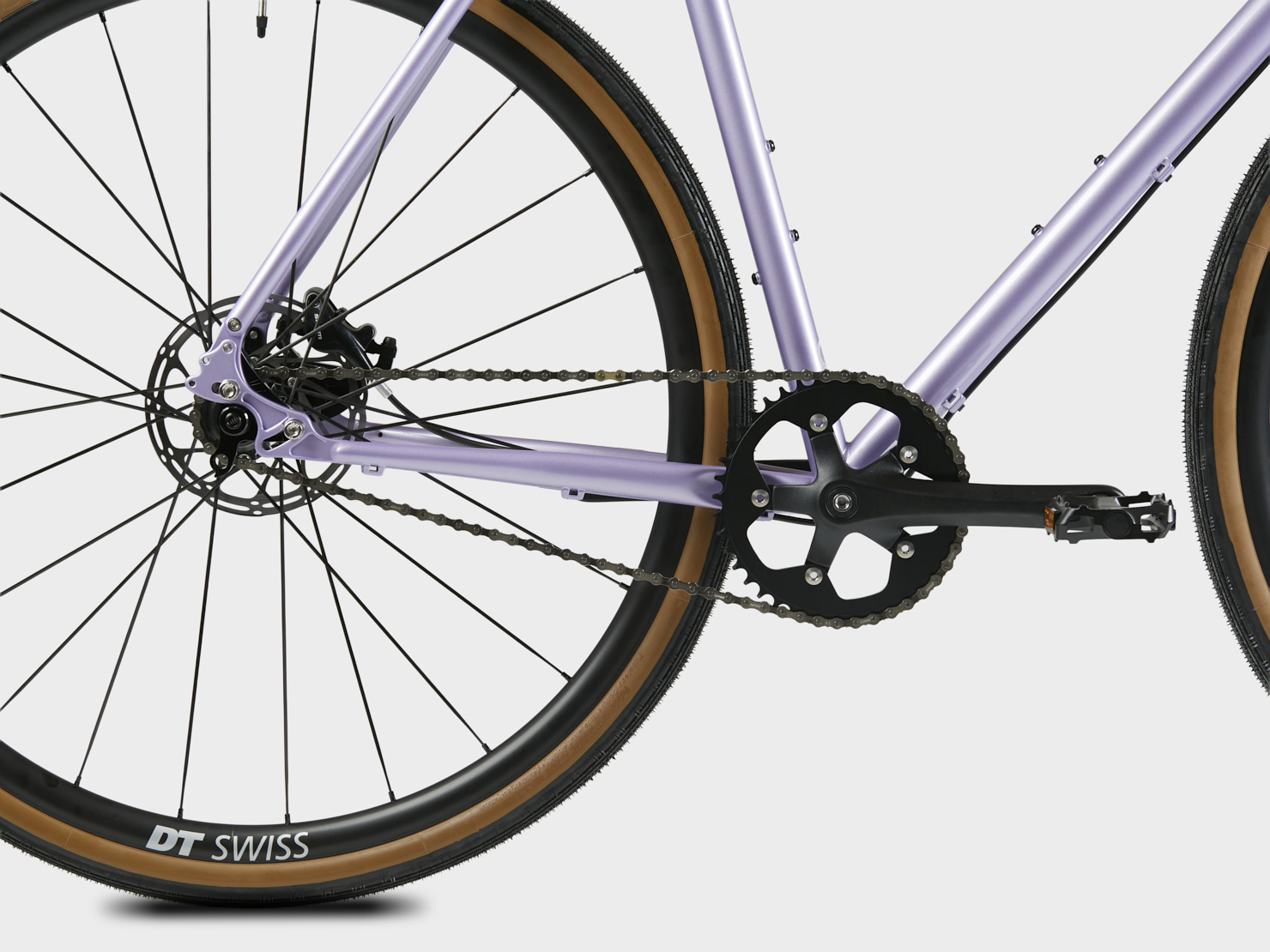

DRIVETRAIN OPTIONS
Gears are great, but they also require maintance and have moving parts that can break – When it comes to simplicity, nothing beats single speed.
With the one right gear urban commuting is as simple and enjoyable as it will ever be.
| Brakes | Sram Level TL |
| Rotors | Sram Centerline 160mm 6 Bolt |
| Rear Cog | 15t SS Adaptor |
| Chain | Sram PC830 |
| Crankset | Driveline, 42t, CNC Narrow Wide Chainring |
| Bottom Bracket | FSA, Square Taper, 68mm BSA |
| DT Swiss G1800 | Rear Wheel | Front Wheel | Dynamo Wheel |
| Supplier Name | G 1800 SPLINE db 25 12/142 mm Shimano | G 1800 SPLINE db 25 12/100 mm | G 1800 SPLINE db 25 12/100 mm Dynamo |
| Supplier SKU | W0G1800NIDMSA21294 | W0G1800AIDXSA21293 | W0G1800AIDXSA27425 |
| Net Weight | 994g | 864g | 1098g |
| Max Carrying Capacity | 130kg | 130kg | 130kg |
| Rim Material | Aluminum | Aluminum | Aluminum |
| Tire Interface | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
| Valve Hole | Presta | Presta | Presta |
| Rim Diameter | 29″ / 700C | 29″ / 700C | 29″ / 700C |
| Rim Hight | 25mm | 25mm | 25mm |
| Inner Width | 24mm | 24mm | 24mm |
| Outer Width | 28mm | 28mm | 28mm |
| Holes | 32 | 32 | 32 |
| Hub Type | 370 | 370 | 370 |
| Axle System | 12 mm Thru Axle | 12 mm Thru Axle | 12 mm Thru Axle |
| Built-In Dimension | 142mm | 100mm | 100mm |
| Brake Interface | Disc Center Lock | Disc Center Lock | Disc Center Lock |
| Cassette Interface | Shimano Road (HG) | – | – |
| Freehub Body | Shim. RD. 11SP Forged (ASF11) | – | – |
| Freehub System | Ratchet LN 18 | – | – |
| Spokes | DT aero comp® wide straightp | DT aero comp® wide straightp | DT aero comp® wide straightp |
| Spoke Pattern | Two-cross (1:1) | Two-cross (1:1) | Two-cross (1:1) |
| Nipples | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu |
| Tubeless Tape (Included) | Tubeless tape 27 mm | Tubeless tape 27 mm | Tubeless tape 27 mm |
| Tubless Valve (Included, not installed) | TL valve alu black 18-25 mm | TL valve alu black 18-25 mm | TL valve alu black 18-25 mm |
| Compatability | CXC v2.1, v3.0 & v4.0 | CXC v2.1, v3.0 & v4.0 | CXC v2.1, v3.0 & v4.0 |
| HANDLEBAR | Omnium Riserbar | Multiple Choice in Bike Builder |
| STEM | Omnium LW Stem | Multiple Choice in Bike Builder |
| GRIPS | Omnium Lock On Foam Grips | Multiple Choice in Bike Builder |
| HEADSET REAR | Omnium 1 1/8 Threadless Headset |
| HEADSET FRONT | Omnium Integrated Front Headset |
| SEATPOST | Omnium Forged Seatpost | Multiple Choice in Bike Builder |
| SADDLE | Omnium Standard Saddle | Multiple Choice in Bike Builder |
| PEDALS | Omnium Cargo Pedals | Multiple Choice in Bike Builder |
| KICKSTAND | Omnium Cargo Kickstand |
| MUDGUARDS | Omnium V3 60mm Mudguards |
| COLUMN SPACERS | Omnium Spacer 15mm x4 |
| SEATPOST CLAMP | Omnium Seatpost Clamp |

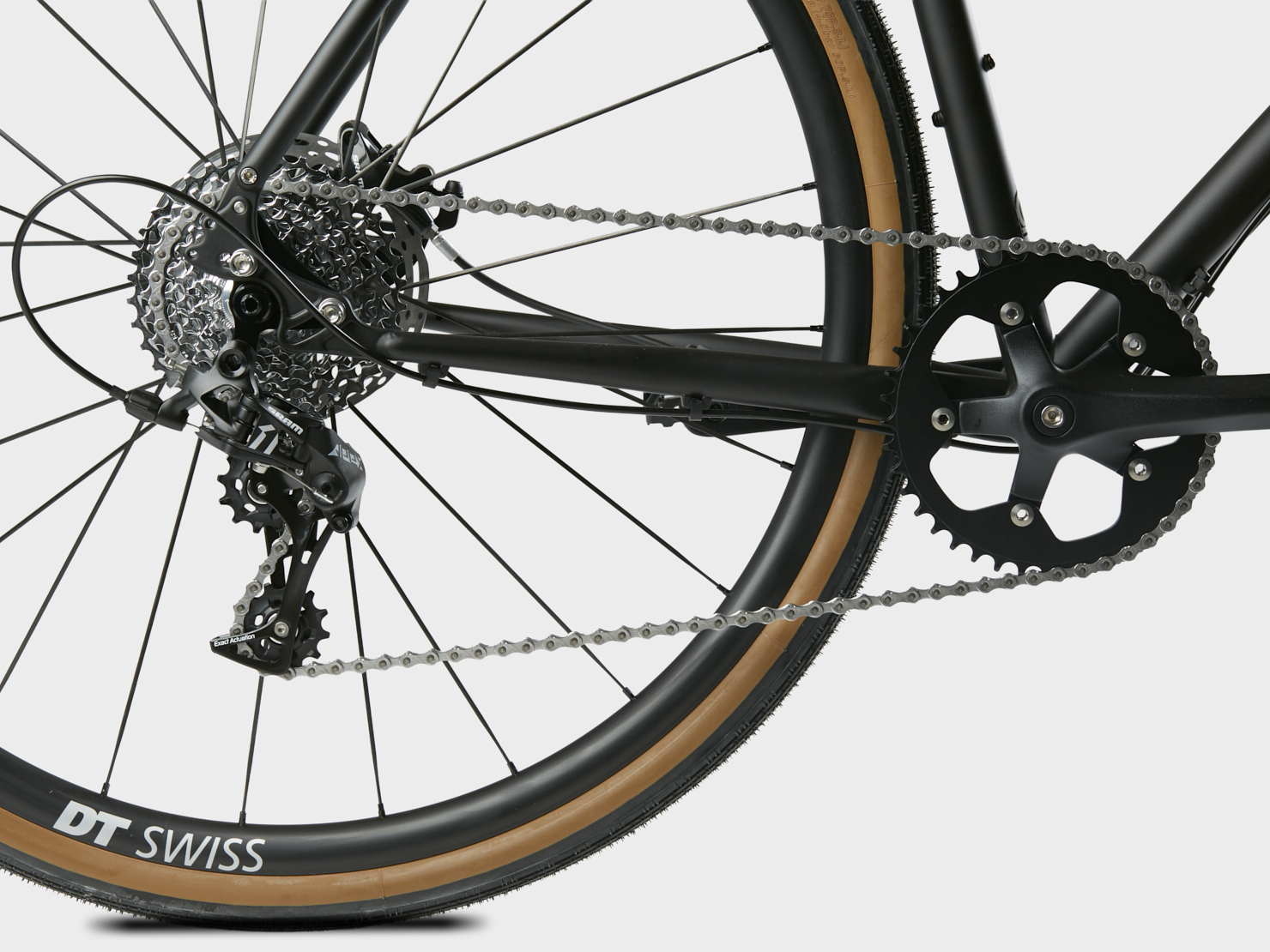

Apex is SRAM’s dedicated gravel groupset, a 1×11 groupset with wide range and is simple to use. With a long cage that fits a 42-tooth cassette and the X-HORIZON design reduces shifting force adding extra comfort. It also comes with Sram CAGE LOCK making wheel removal and maintenance much easier.
| Brakes | Sram Level TL | IS mount |
| Rotors | Sram Centerline 6 Bolt Rotor 160mm |
| Derailleur | Sram Apex 11 SPD |
| Cassette | Sram PG-1130 11-42 |
| Chain | KMC 11 Spd Chain EPT |
| Crankset | Omnium Wide Narrow Cranks 42t |
| Bottom Bracket | FSA 10,5mm Square Taper |
| DT Swiss G1800 | Rear Wheel | Front Wheel | Dynamo Wheel |
| Supplier Name | G 1800 SPLINE db 25 12/142 mm Shimano | G 1800 SPLINE db 25 12/100 mm | G 1800 SPLINE db 25 12/100 mm Dynamo |
| Supplier SKU | W0G1800NIDMSA21294 | W0G1800AIDXSA21293 | W0G1800AIDXSA27425 |
| Net Weight | 994g | 864g | 1098g |
| Max Carrying Capacity | 130kg | 130kg | 130kg |
| Rim Material | Aluminum | Aluminum | Aluminum |
| Tire Interface | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
| Valve Hole | Presta | Presta | Presta |
| Rim Diameter | 29″ / 700C | 29″ / 700C | 29″ / 700C |
| Rim Hight | 25mm | 25mm | 25mm |
| Inner Width | 24mm | 24mm | 24mm |
| Outer Width | 28mm | 28mm | 28mm |
| Holes | 32 | 32 | 32 |
| Hub Type | 370 | 370 | 370 |
| Axle System | 12 mm Thru Axle | 12 mm Thru Axle | 12 mm Thru Axle |
| Built-In Dimension | 142mm | 100mm | 100mm |
| Brake Interface | Disc Center Lock | Disc Center Lock | Disc Center Lock |
| Cassette Interface | Shimano Road (HG) | – | – |
| Freehub Body | Shim. RD. 11SP Forged (ASF11) | – | – |
| Freehub System | Ratchet LN 18 | – | – |
| Spokes | DT aero comp® wide straightp | DT aero comp® wide straightp | DT aero comp® wide straightp |
| Spoke Pattern | Two-cross (1:1) | Two-cross (1:1) | Two-cross (1:1) |
| Nipples | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu |
| Tubeless Tape (Included) | Tubeless tape 27 mm | Tubeless tape 27 mm | Tubeless tape 27 mm |
| Tubless Valve (Included, not installed) | TL valve alu black 18-25 mm | TL valve alu black 18-25 mm | TL valve alu black 18-25 mm |
| Compatability | CXC v2.1, v3.0 & v4.0 | CXC v2.1, v3.0 & v4.0 | CXC v2.1, v3.0 & v4.0 |
| HANDLEBAR | Omnium Riserbar | Multiple Choice in Bike Builder |
| STEM | Omnium LW Stem | Multiple Choice in Bike Builder |
| GRIPS | Omnium Lock On Foam Grips | Multiple Choice in Bike Builder |
| HEADSET REAR | Omnium 1 1/8 Threadless Headset |
| HEADSET FRONT | Omnium Integrated Front Headset |
| SEATPOST | Omnium Forged Seatpost | Multiple Choice in Bike Builder |
| SADDLE | Omnium Standard Saddle | Multiple Choice in Bike Builder |
| PEDALS | Omnium Cargo Pedals | Multiple Choice in Bike Builder |
| KICKSTAND | Omnium Cargo Kickstand |
| MUDGUARDS | Omnium V3 60mm Mudguards |
| COLUMN SPACERS | Omnium Spacer 15mm x4 |
| SEATPOST CLAMP | Omnium Seatpost Clamp |
SPECS
GEO
Run full mudguards and up to 45mm tires, racks, bags and go camping, or strip it down and mash out some kilometers of mixed terrain in turbo mode. There is nothing more versatile.
Getting the perfect fit makes all the difference in how your Omnium feels and performs. Use the chart to find the frame size that best matches your height.
Each Omnium frame size covers a range of rider heights, so if you’re between sizes, consider how you like your bike to feel:
- Choose the smaller size if you prefer a more agile, responsive ride.
- Choose the larger size if you want a more stable, stretched-out position.
| 6 Sizes | XS (51), S (53), M(56), L (59), XL (62), XXL (64) |
| Material | Double-Butted Chromoly Steel Frame & Fork |
| Gears | For 1x rear derailleur gear system |
| Seat post diameter: | 27.2mm |
| Rear Wheel: | TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only |
| Front Wheel: | 622, 12 x 100mm spacing, disc only |
| Tyre clearance, front: | 45mm clearance with mudguards |
| Tyre clearance, rear: | 45mm clearance with mudguards (50mm chainstay clearence) |
| Thru Axle Rear | 12×142, 172mm long, 19mm thread length, 1.75mm pitch |
| Thru Axle Front | 12×100, 125mm, 17mm thread length, 1.5mm Pitch |
| Headset: | 1 1/8″ Ahead |
| Bottom Bracket: | 68mm BSA |
| Brake Mounts: | IS brake mount front and rear, for minimum 160mm and max 180 rotors |
| Q-Factor | 145mm |
| Recommended maximum loading weight including rider: | 125 kg |
| Framekit weight(Large); Including Fork, Drop Outs & Axles | 3,7 kg |
| CXC V4 | XS (51) | S (53) | M (56) | L (59) | XL (62) | XXL (64) |
| STL – seat tube length (c-t) | 510 | 530 | 560 | 590 | 620 | 640 |
| TTL – top tube length (c-c / actual) | 520 | 535 | 555 | 575 | 595 | 610 |
| Stack | 497 | 512 | 543 | 573 | 602 | 617 |
| Reach | 395 | 402 | 409 | 422 | 434 | 434 |
| SOH – standover height | 782 | 797 | 828 | 858 | 888 | 902 |
| BBD – bottom bracket drop | 58 | 58 | 58 | 58 | 58 | 58 |
| STA – seat tube angle | 76° | 75.5° | 75° | 75° | 75° | 74° |
| HTA – head tube angle | 73.5° | 74° | 74.5° | 75° | 75° | 75° |
| HTL – head tube length | 66 | 80 | 110 | 140 | 170 | 185 |
| WB – wheelbase | 977 | 985 | 996 | 1012 | 1032 | 1036 |
| A-C – axle to crown | 396 | 396 | 396 | 396 | 396 | 396 |
| R – rake | 45 | 45 | 45 | 45 | 45 | 45 |
| T – trail | 58 | 55 | 52 | 49 | 49 | 49 |
| CSL – chainstay length | 410-427 | 410-427 | 410-427 | 410-427 | 410-427 | 410-427 |
