One Complete or Frame Per Customer!
Due to the limited stock, we are only offering one bike or frame pr customer, any orders with more than one bike will be cancelled without notice.
SUPERCARGO
A one-off OMNIUM cargo created in collaboration with Cinelli, featuring a custom paint scheme inspired by the legendary Cinelli Laser. The graphic design pays tribute to the bold aesthetic of one of cycling’s most iconic track bikes. Built f rom a unique combination of Columbus and OMNIUM tubing, the frame blends classic Italian steel heritage with modern cargo functionality. A meeting point between utility, craftsmanship and racing design.
LIMITED AVAILABILITY
Limited to only 120 frames and they are available as either completes or frame kits.

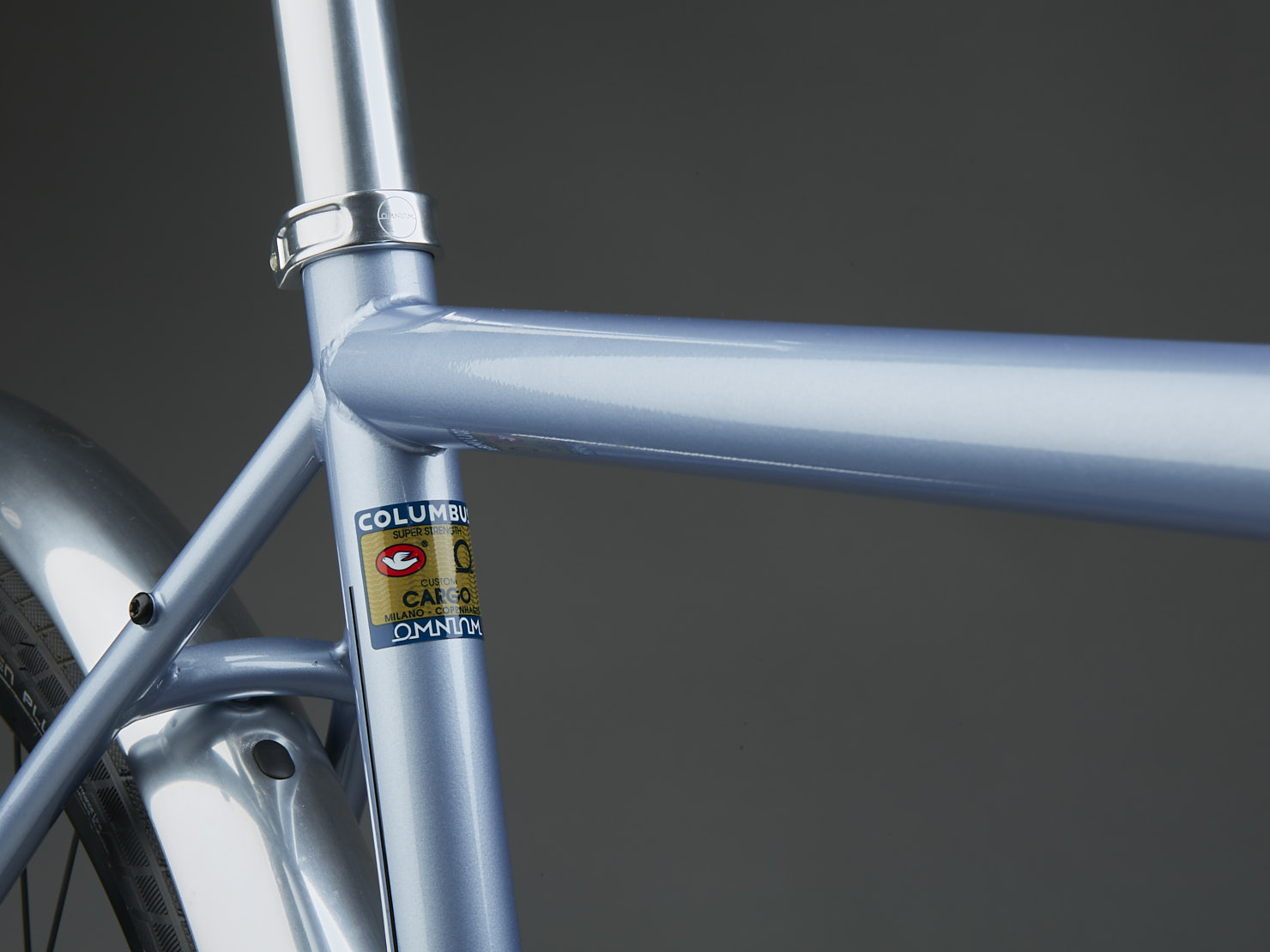

COLUMBUS TUBING
Built with a mix of Columbus and Omnium tubing, the frame carries the precision craftsmanship and ride quality that made Columbus a defining part of Italian racing history. Responsive, smooth, and dependable, it gives the bike a lively feel without losing the practicality Omnium bikes are known for.
SPECS
GEO
| Frame material | Double Butted Chromoly Steel Frame mixed with Columbus Tubings |
| 5 Sizes | S, M, L |
| Standard Rack Weight | 1320g +/- |
| Rack dimensions | 83cm x 50cm |
| Seat post diameter | 31.6 mm |
| Seat post clamp size | 34.0 mm |
| Rear Wheel | TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only |
| Front Wheel | 406, 15 x 100 mm spacing, disc only |
| Tyre clearance, front | 55mm with mudguards |
| Tyre clearance, rear | 55mm with mudguards |
| Thru Axle Rear | 12×142, 172mm long, 19mm thread length, 1.75mm pitch |
| Thru Axle Front | 15×100, 125mm long, 17mm thread length, 1.5mm pitch |
| Fork headset | 1 1/8″ Threaded Integrated with locking cap |
| Steerer headset | 1 1/8″ Ahead |
| Bottom Bracket | BSA 68mm |
| Q-Factor/Stance | 145mm |
| Gears | For 1x rear derailleur gear system |
| Standard Rack Weight | 1320g +/- |
| Rack dimensions | 83cm x 50cm |
| Rack bolt size | M15 x 15mm |
| Weight | Complete Medium bike weighs 20kg |
| Maximum loading weight on front rack | 75 kg (Total weight may never exceed maximum loading weight) |
| Maximum total loading weight incl. rider | 175 kg |
| Supercargo | S (52) | M (54.5) | L (57) |
| STL – seat tube length (c-t) | 520 mm | 545 mm | 570 mm |
| TTL – top tube length (c-c / actual) | 520 mm | 545 mm | 570 mm |
| Stack | 557 mm | 581 mm | 605.5 mm |
| Reach | 357 mm | 375 mm | 394 mm |
| SO – standover height | 769.5 mm | 793.5 mm | 818 mm |
| BBH – bottom bracket height | 288 mm | 288 mm | 288 mm |
| BBD – bottom bracket drop | 81 mm | 81 mm | 81 mm |
| STA – seat tube angle | 74° | 74° | 74° |
| HTA1 – head tube angle rear | 74.7° | 75° | 75.4° |
| HTA2 – head tube angle front | 74.6° | 74.9° | 75.4° |
| WB – wheelbase | 1590 mm | 1612 mm | 1632 mm |
| A-C – axle to crown | 298.5 mm | 298.5 mm | 298.5 mm |
| R – rake | 45 mm | 45 mm | 45 mm |
| T – trail | 25 mm | 23.5 mm | 24 mm |
| CSL – chainstay length | 462 mm | 462 mm | 462 mm |
| FL – full bike length | 2220 mm | 2241 mm | 2262 mm |
