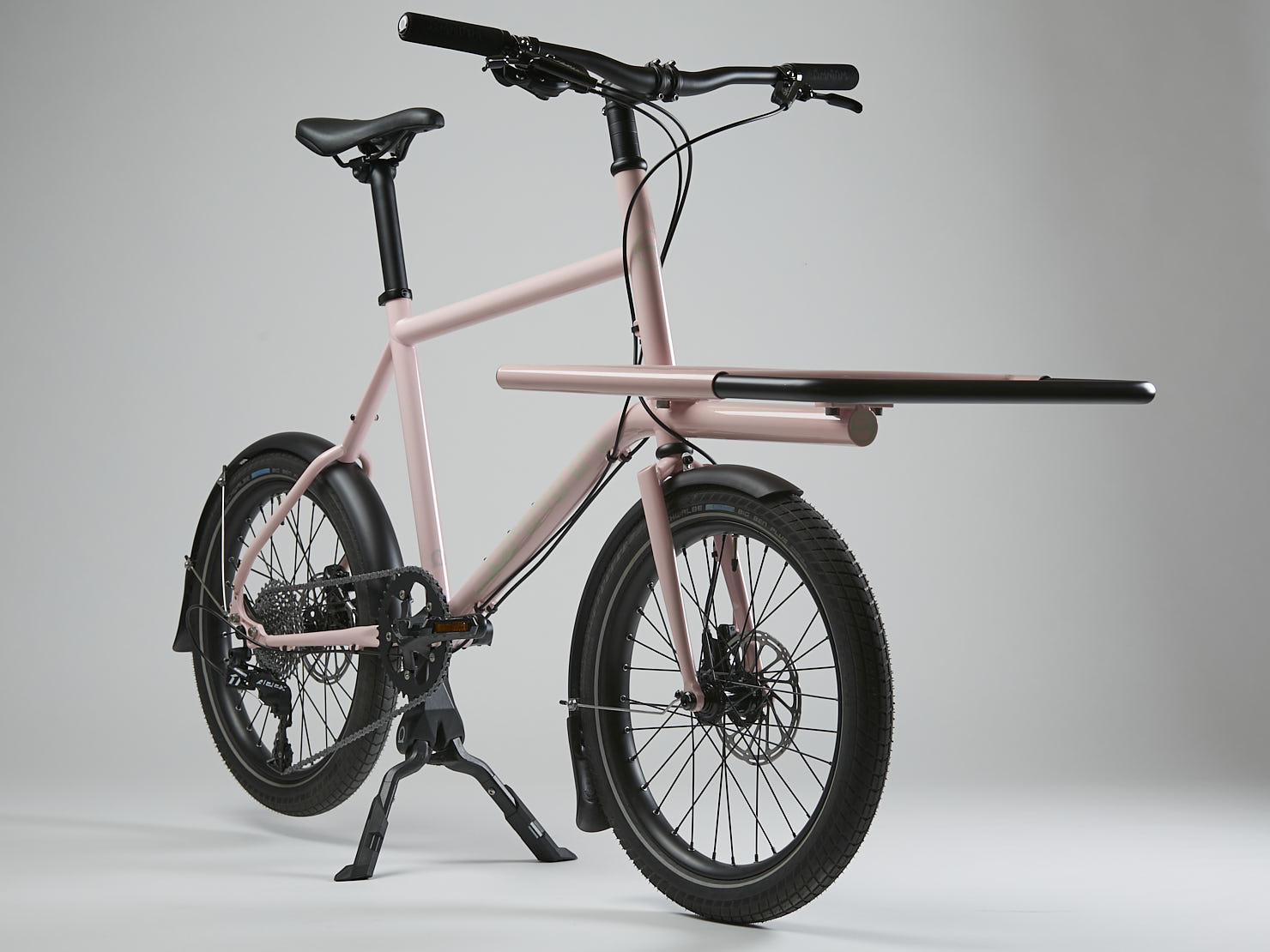

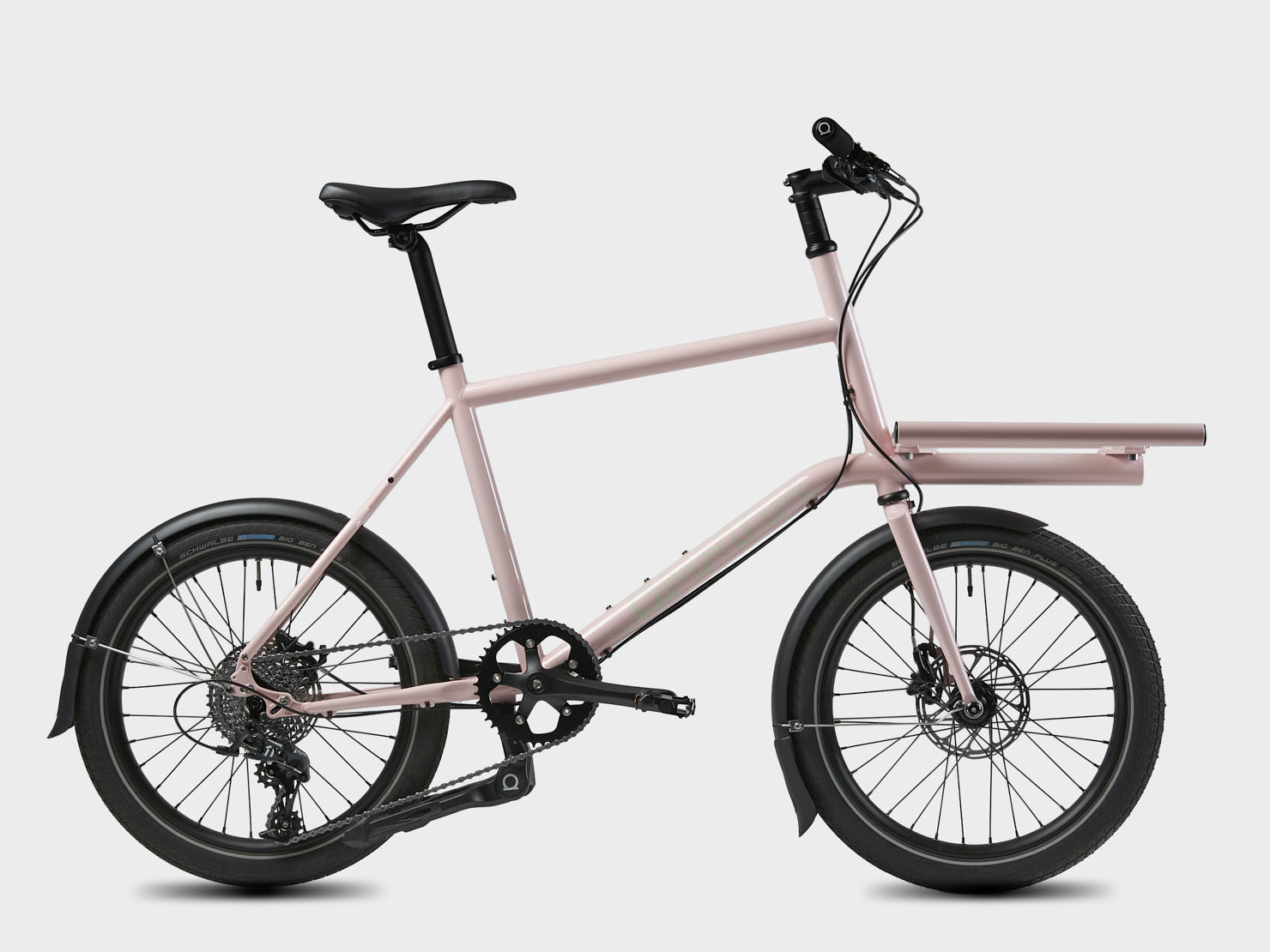

NANO
The Nano is our extra compact loader, made for
zipping around the city running your daily errands.
COMING SOON
The first batch of Nano’s are underway and we are expecting them to arrive soon.
DESCRIPTION

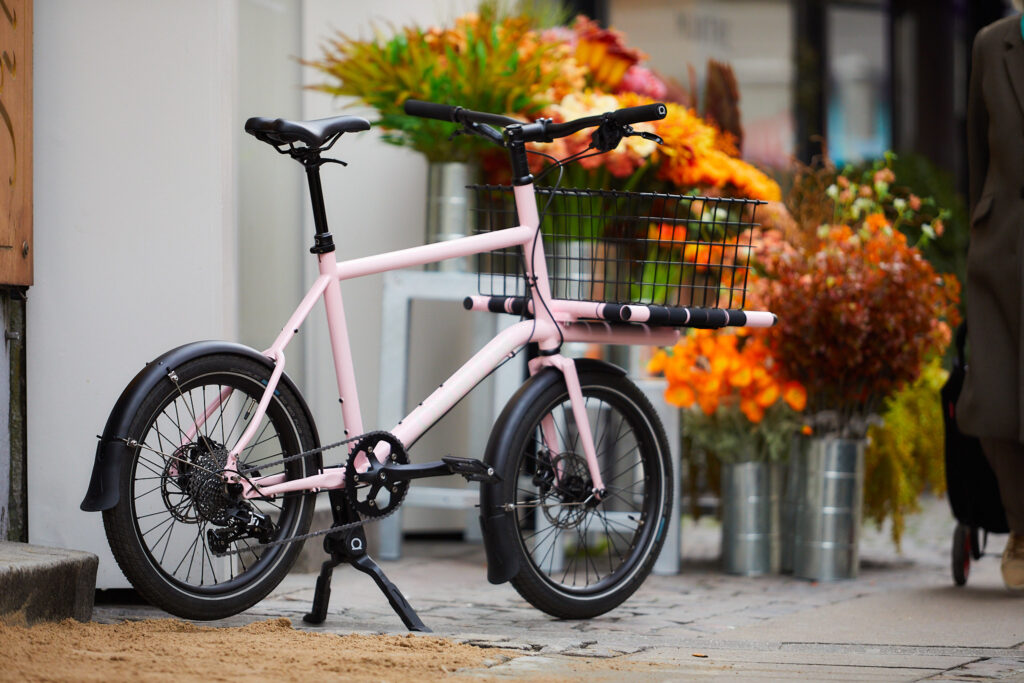

The Nano is a 2 in 1 solution for urban dwellers, the smaller footprint makes it easier to have a cargo bike in smaller, more cramped urban living quarters while the smaller wheels and shorter wheelbase encourages a fun & agile riding experience, without compromising the loading capabilities.
With a smaller footprint the Nano also makes it easier to integrate your bike with public transportation and encourage multimodal transportation making it easier to ditch your car for even bigger daily distances by bike.
The Nano is integrated with more standards from the Cargo & Mini-Max V3’s making more accessories available to the frame for instance the ability to add the Tilting Rack Bracket giving the option to make the footprint of the bike even smaller when parked.
DESIGN

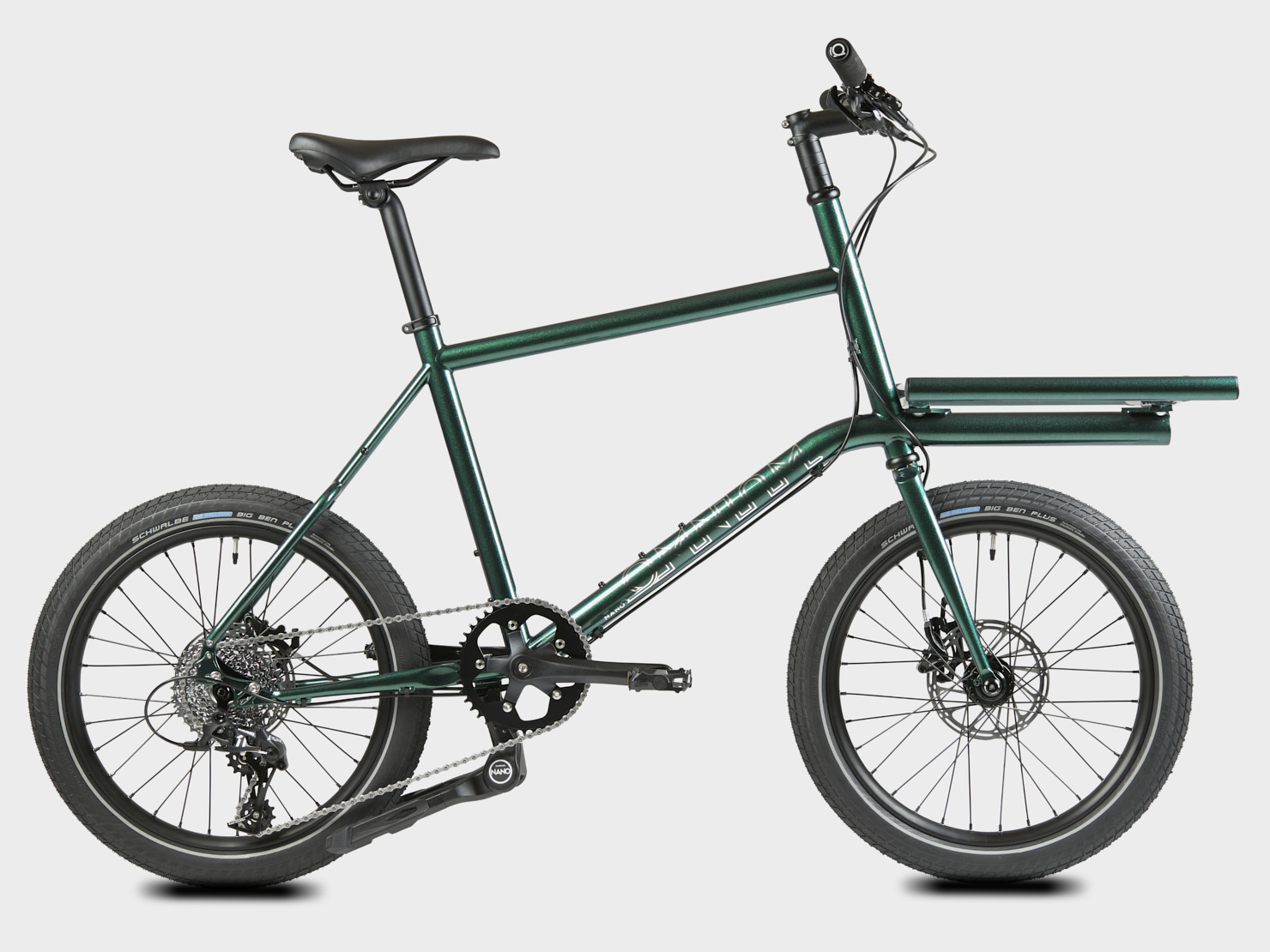

Designed around two 20” wheels with a 2.15” tyres and shorter wheelbase than our other bikes, this gives us a snappier ride and a small footprint for the overall bike – the smaller wheels also get you up to speed faster which is great for the more start and stop nature of urban riding.

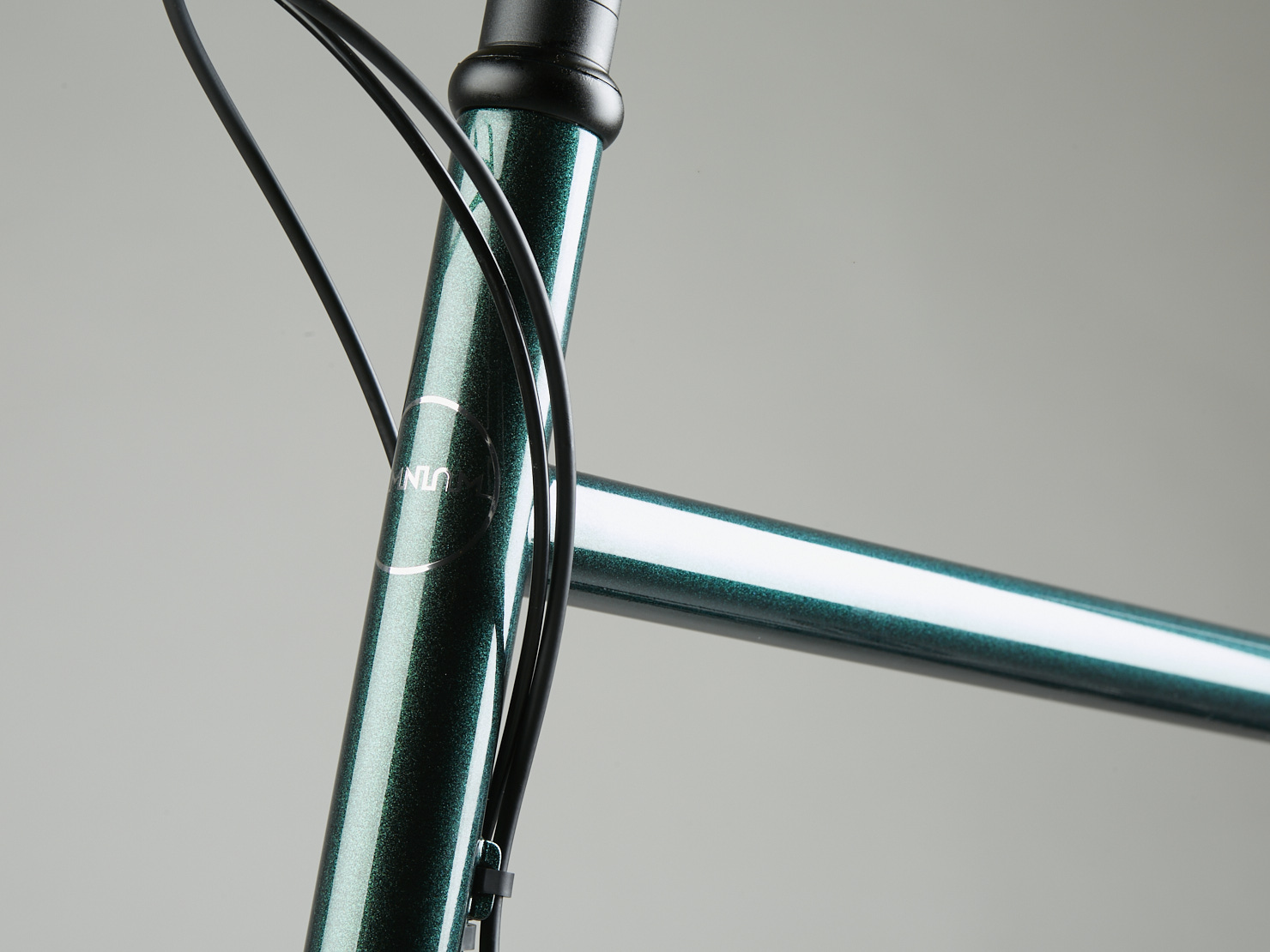

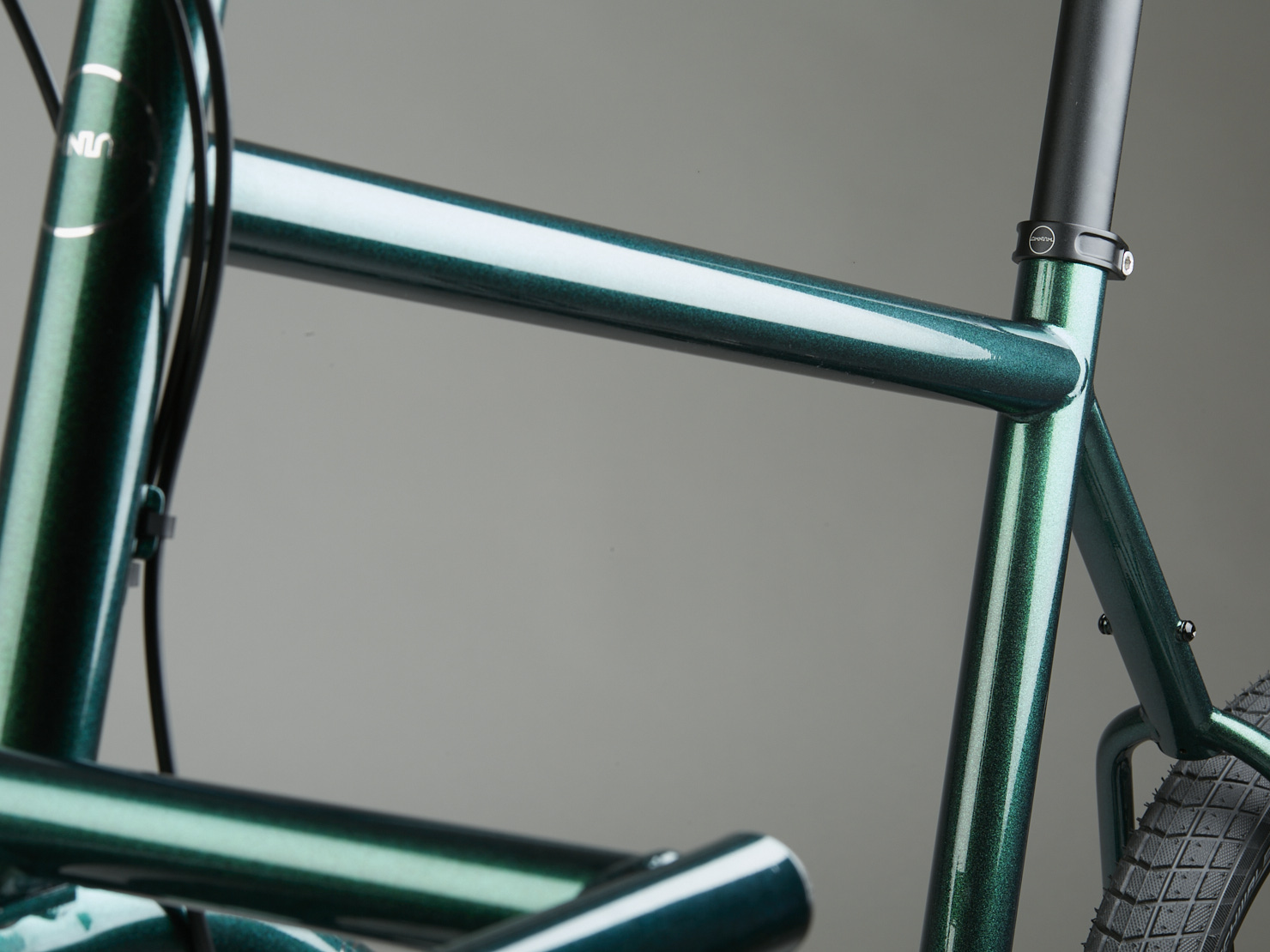

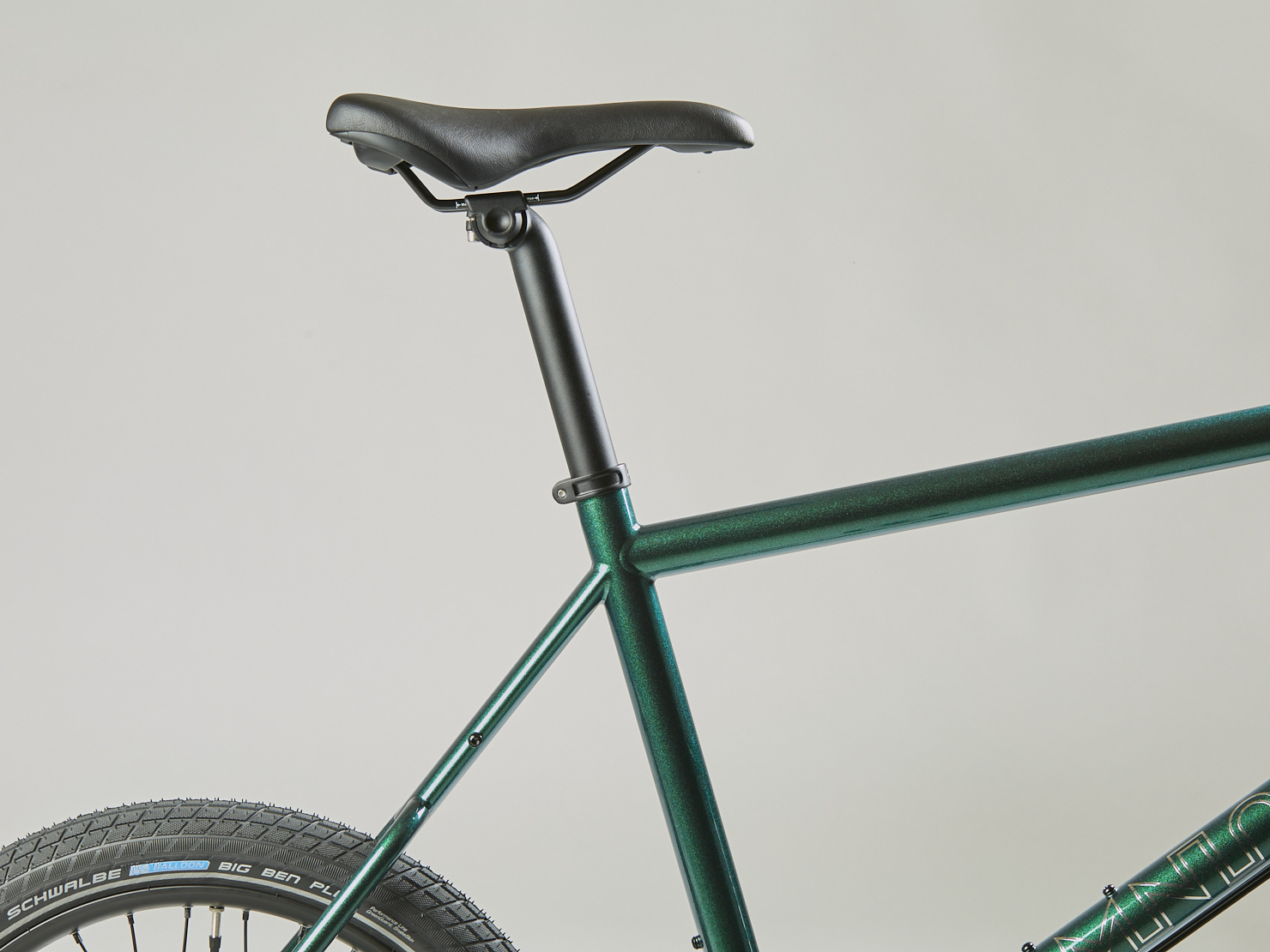

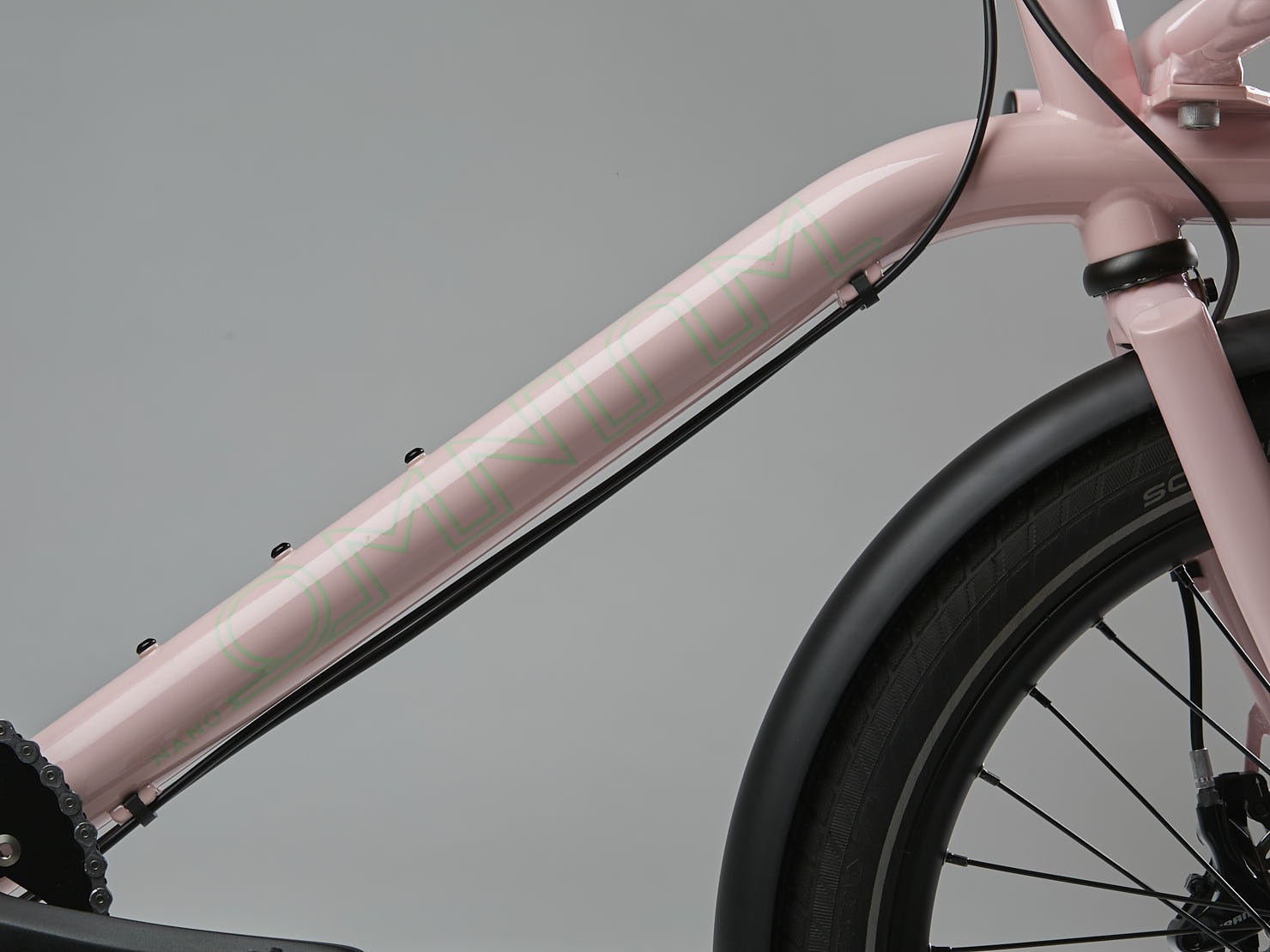

We have slopped the top tube to lower the stand over height and increase the number of people that can enjoy the bike. While only being available in one size, that lower sloped top tube makes it accessible to riders of almost any body proportion fitting riders from 160cm to 190cm and still being a great ride.
While being a small bike the Nano still retains the loading capabilities of our bigger bikes, with a max weight of 125kg you can pack the rack full with whatever you want and never need to worry about reaching its weight limit.

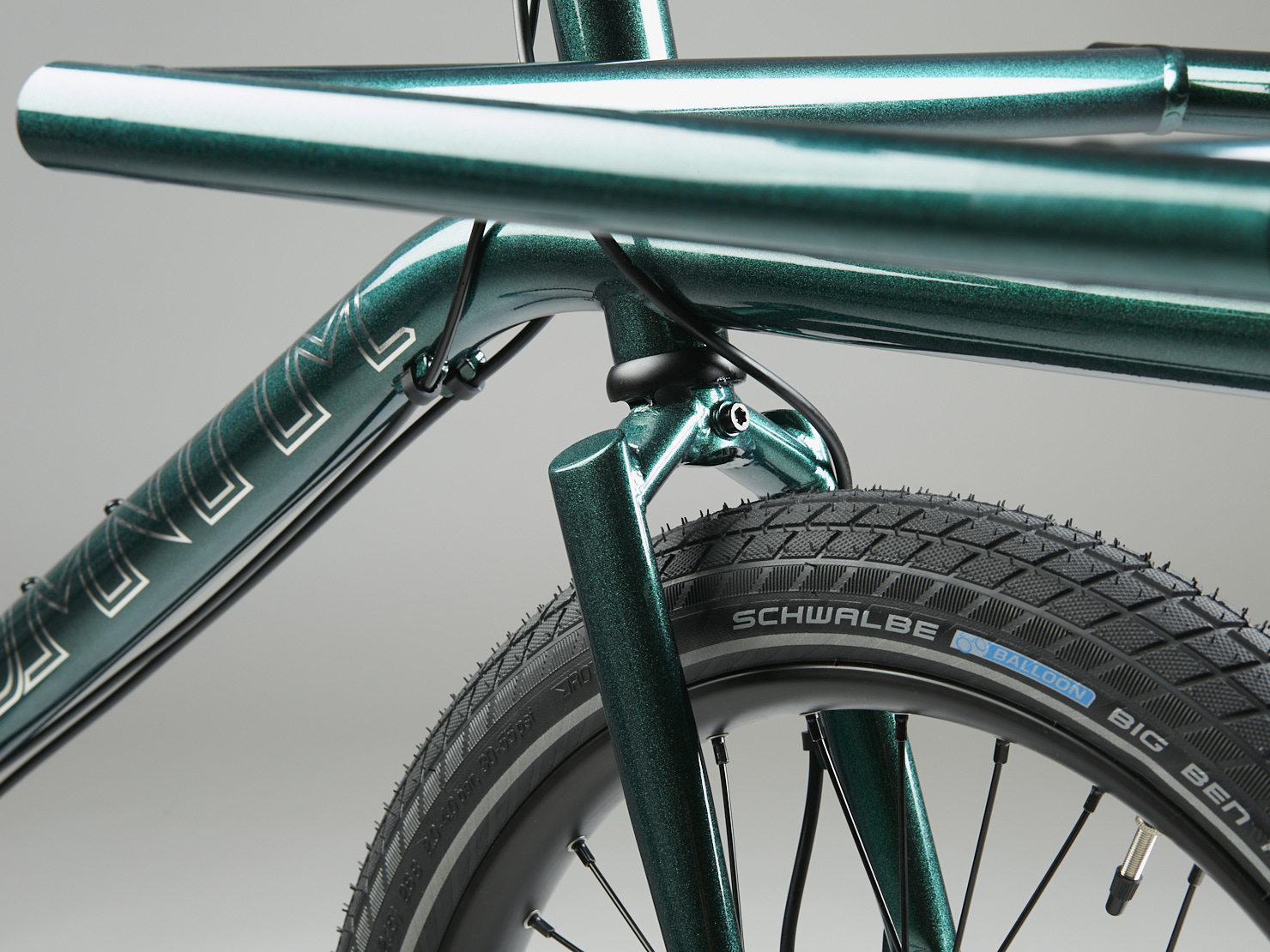

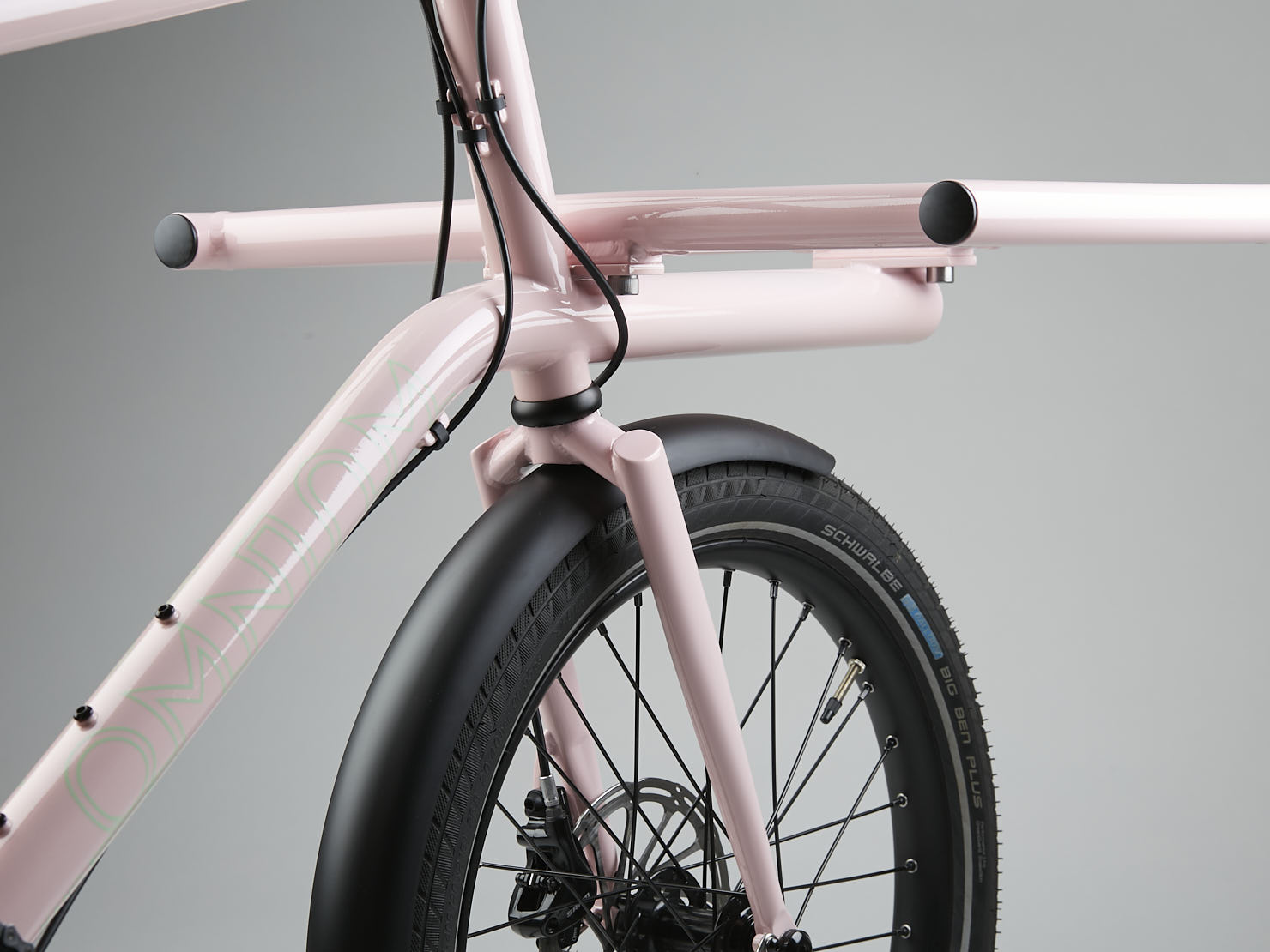

Like our other bikes we use IS brake mount which is optimal for flat bar bikes and gives the rotor adaptation for you brakes – we have also kept the 15x100mm thru axle on the fork – while the rear will depend on your choice of rocker dropouts.
NANO STORIES

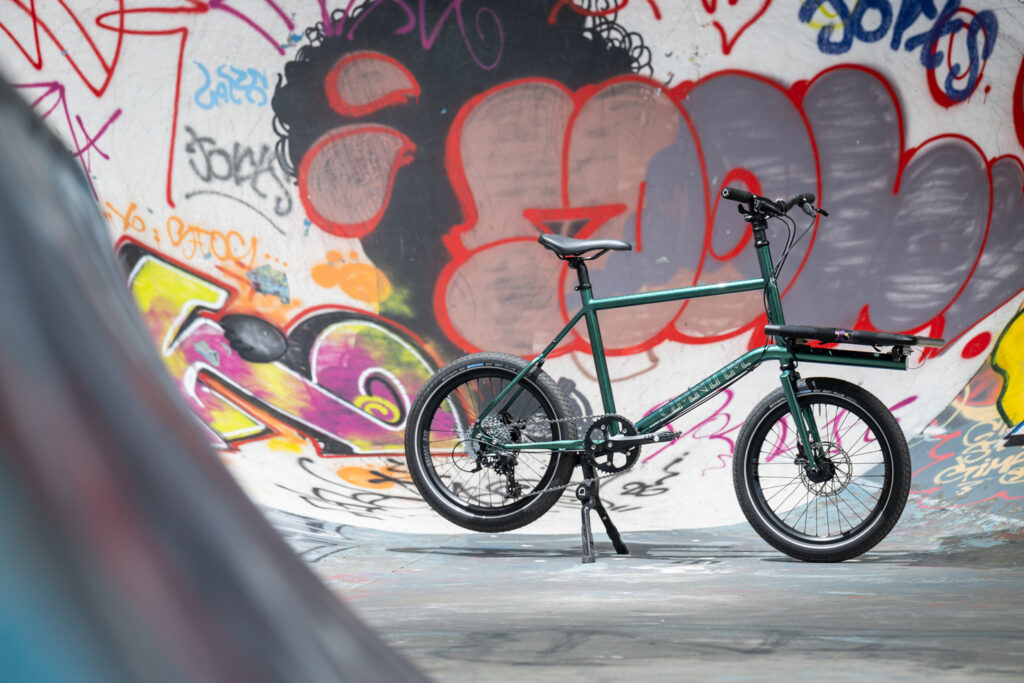

A DAY AT THE PARK

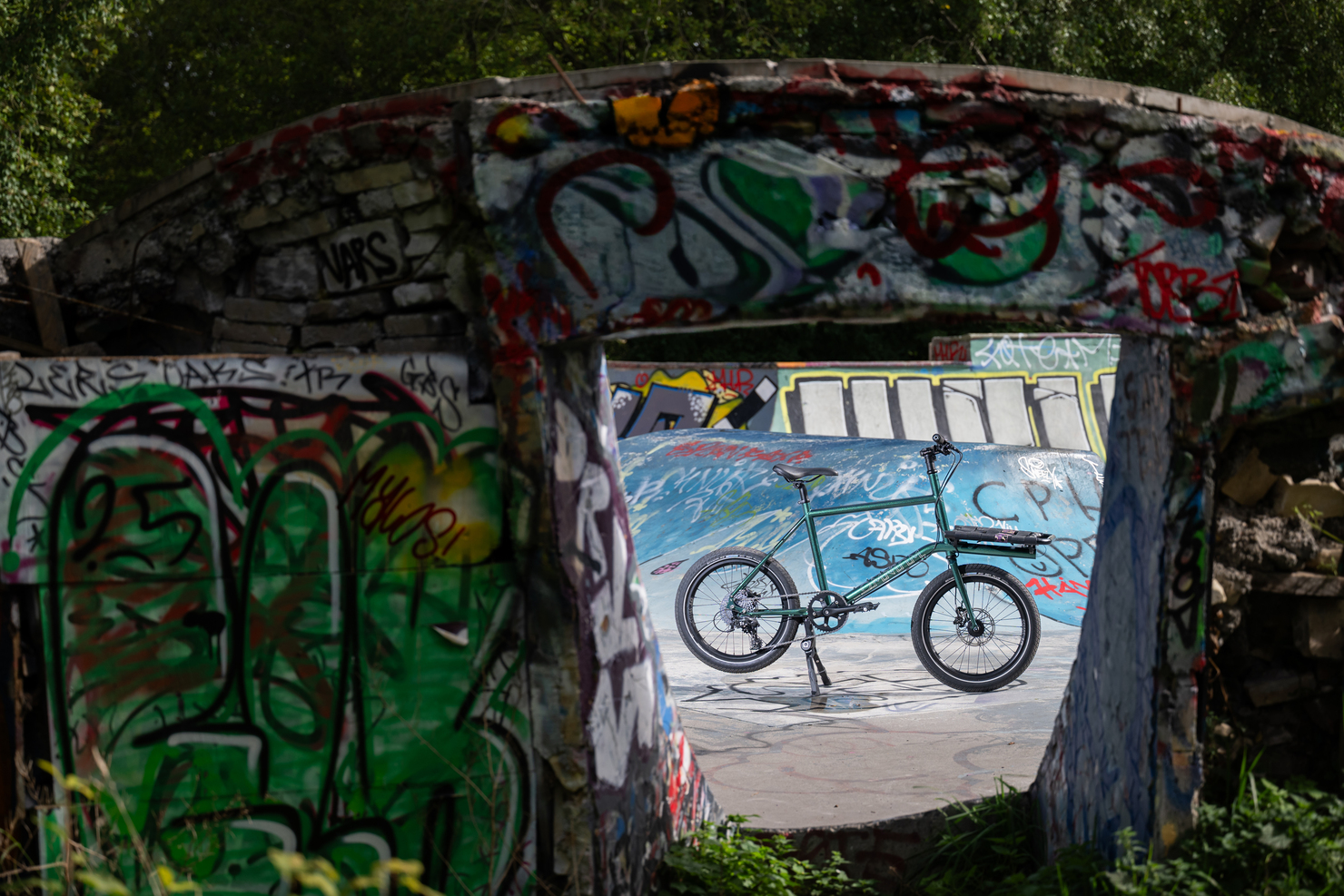

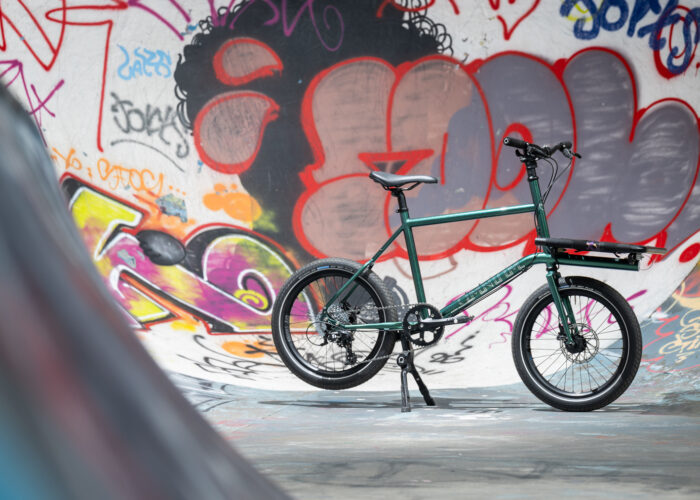

Ultra cyclist photograher Patrik Lundin teamed up with a pair of local BMX riders and took the Nano for a spin around the local skate parks, to see if we could test the Nano to its limits.
20″ FESTIVAL BERLIN
We took our Nano prototype to Berlin to get some feedback – it was an amazing festival and great to se all the 20″ bikes.
ESSENTIAL ACCESSORIES
Adapt the Nano to your needs – Webbing is essential to carry most things, but looking to boost your load add the extender, Loads of multimodal add the tilting rack bracket to minimize the footprint!

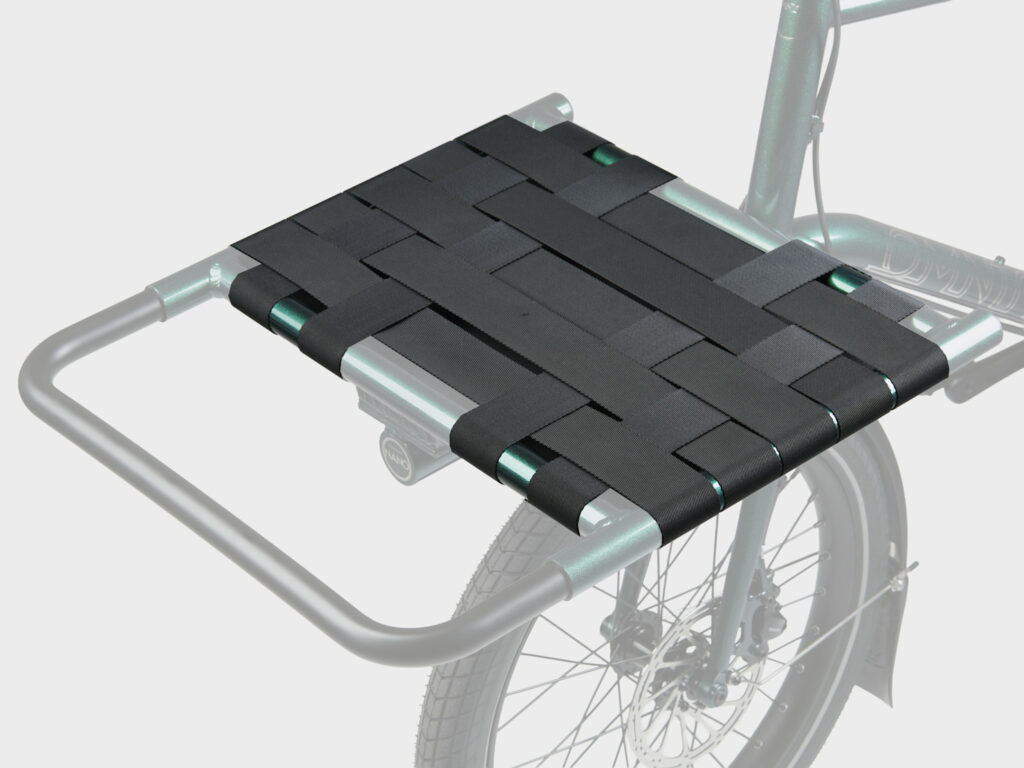

NANO WEBBING
ESSENTIAL FINISHING KIT FOR THE NANO, THE WEBBING COVERS YOUR RACK SO YOU CAN CARRY ALL YOUR STUFF.

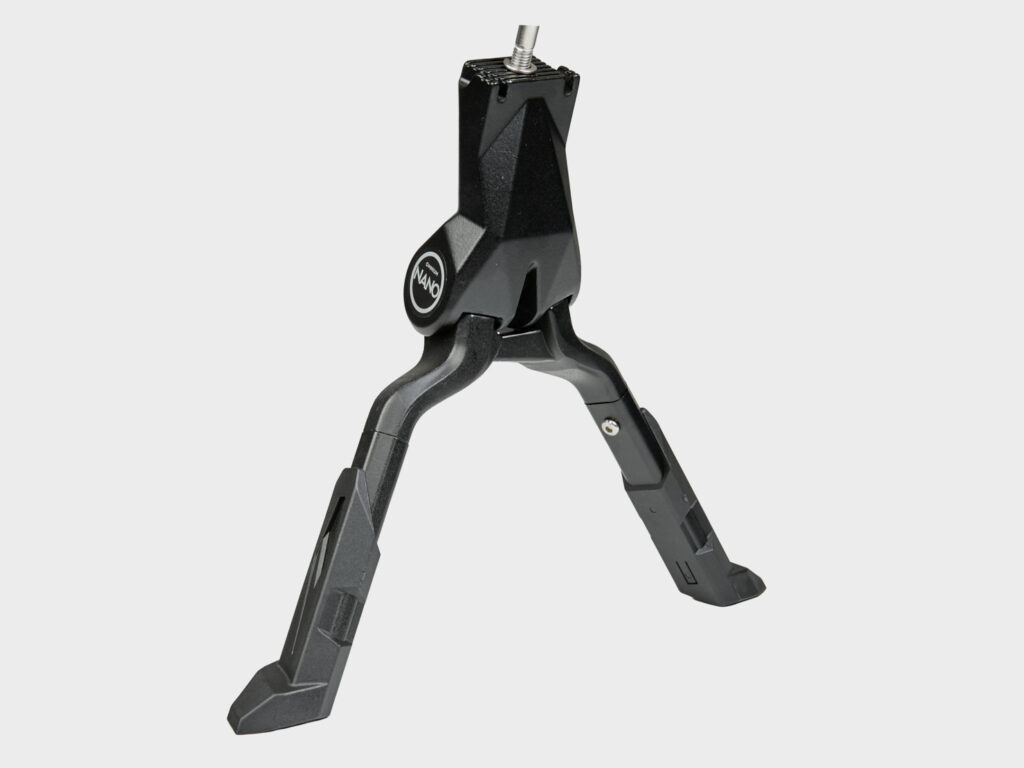

NANO KICKSTAND
WITH THE NANO COMES A NEW KICKSTAND AN ESSENTIAL AND INCLUDED WITH COMPLETES.
SUPERNOVA DYNAMO LIGHT SET
THE NANO HAS BEEN UPDATED TO ALSO BE COMPATIBLE WITH THE SUPERNOVA DYNAMO LIGHT SET.
NANO EXTENDER
THE NEW NANO RACK ALSO MAKES IT POSSIBLE TO INSTALL THE NEW NANO EXTENDER

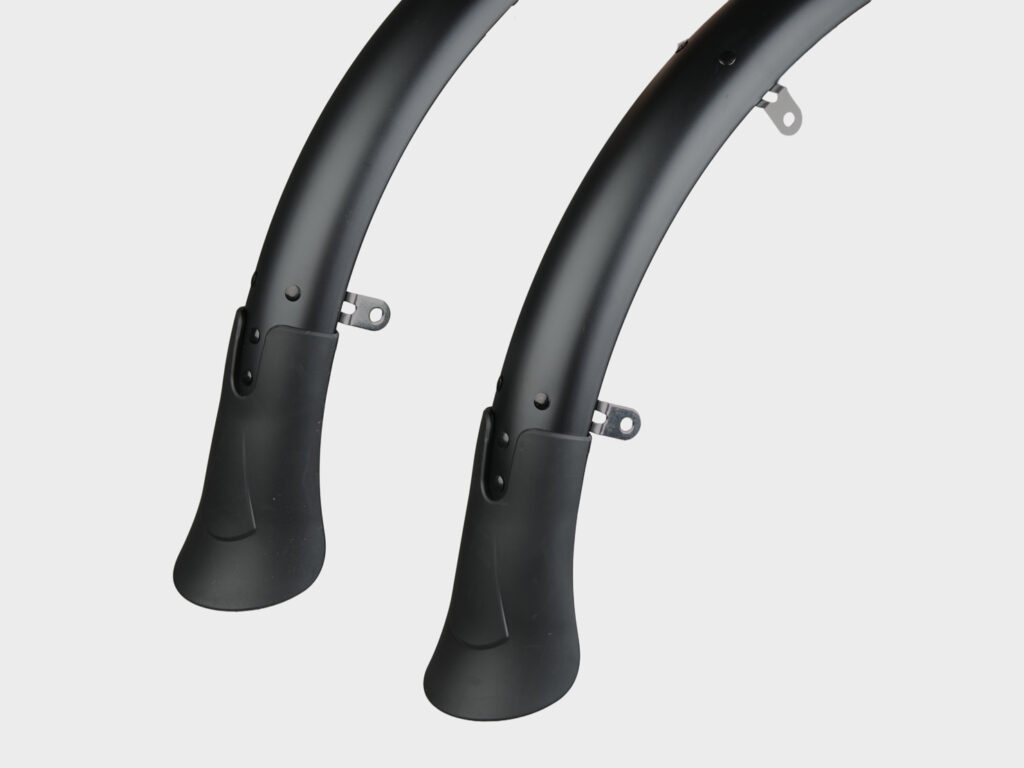

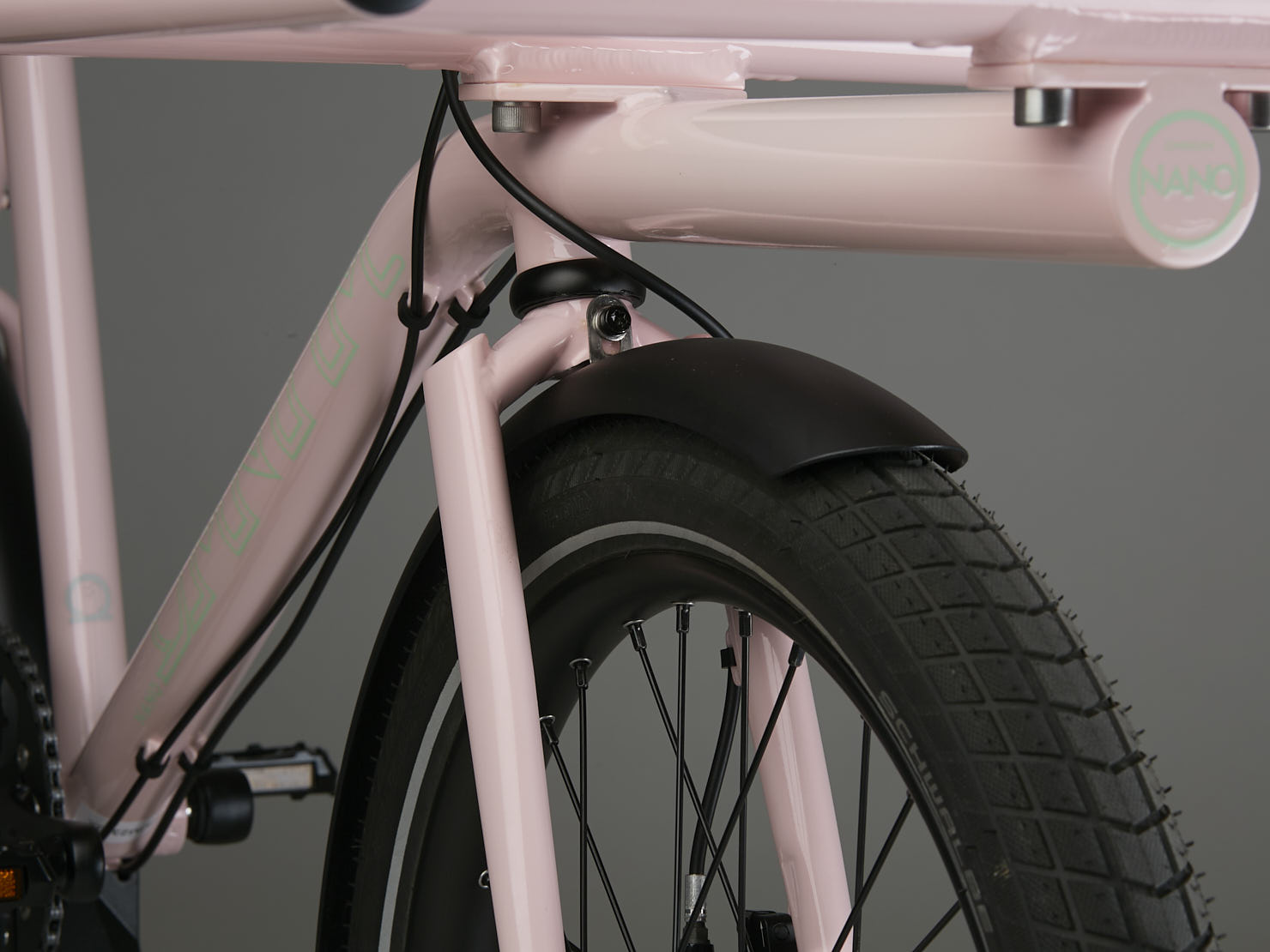

NANO MUDGUARDS
MUDGUARDS ARE A SMART ADD-ON FOR WET RIDES—THEY KEEPS YOU DRY AND PROTECT YOUR DRIVETRAIN FROM GRIME.

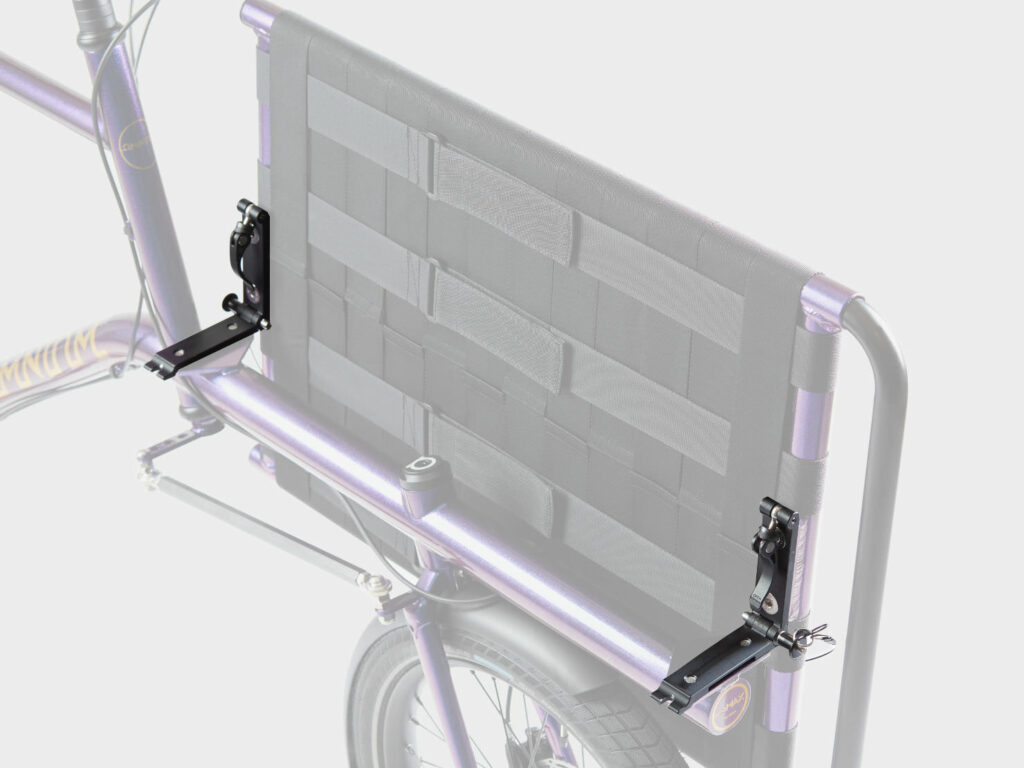

TILTING RACK BRACKET
NANO NOW HAS NEW RACK MOUNTS THAT SUPPORT A TILTING BRACKET, SHRINKING ITS FOOTPRINT FOR EASY TRANSPORT.
DRIVETRAIN
COCKPIT & FINISHING KIT
When you order a complete bike, it comes ready to ride with our standard Omnium cockpit — a solid, well-balanced setup that delivers comfort and control right out of the box. But if you want to fine-tune your fit or match your riding style, you’ve got options. In the Bike Builder, you can choose your preferred handlebar, stem, saddle, and more to create a cockpit that suits your look and feel. Whether you’re all about long rides, city cruising, or hauling with style, you can dial it in so your bike feels exactly right for you.
| HANDLEBAR | Omnium Riserbar | Multiple Choice in Bike Builder |
| STEM | Omnium LW Stem | Multiple Choice in Bike Builder |
| GRIPS | Omnium Lock On Foam Grips | Multiple Choice in Bike Builder |
| HEADSET | Omnium Headset |
| SEATPOST | Omnium Forged Seatpost | Multiple Choice in Bike Builder |
| SADDLE | Omnium Standard Saddle | Multiple Choice in Bike Builder |
| PEDALS | Omnium Cargo Pedals | Multiple Choice in Bike Builder |
| COLUMN SPACERS | Omnium Spacer 15mm x4 |
GEARS AND BRAKES
The Omnium Nano comes equipped with the SRAM Apex 11-speed groupset — a setup that delivers smooth, reliable shifting and solid performance whether you’re climbing, cruising, or carrying a load. We’ve paired the Apex derailleur with an 11–36 cassette and a 42t chainring, which, combined with the Nano’s 20” wheels, comes out to a lower effective gear range. It’s a proven combination that handles city rides and steep hills with ease, keeping the Nano responsive and ready for whatever your ride throws at it.
| Derailleur | Sram Apex 11 |
| Cassette | Sram Force 11-36 |
| Chain | KMC |
| Shifter | Sram Apex |
| Bottom Bracket | FSA 110mm Square Taper |
| Cranks | OMNIUM Narrow Wide Cranks |
| Brakes | Sram Level TL |
| Front Wheel | Omnium Nono Wheel: 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims |
| Rear Wheel | Omnium Nano Wheel: 12 x 142mm thru axle 406 (20”) rear, 38mm outer width rims |
| Tyres | Schwalbe Big Ben (55-406) |

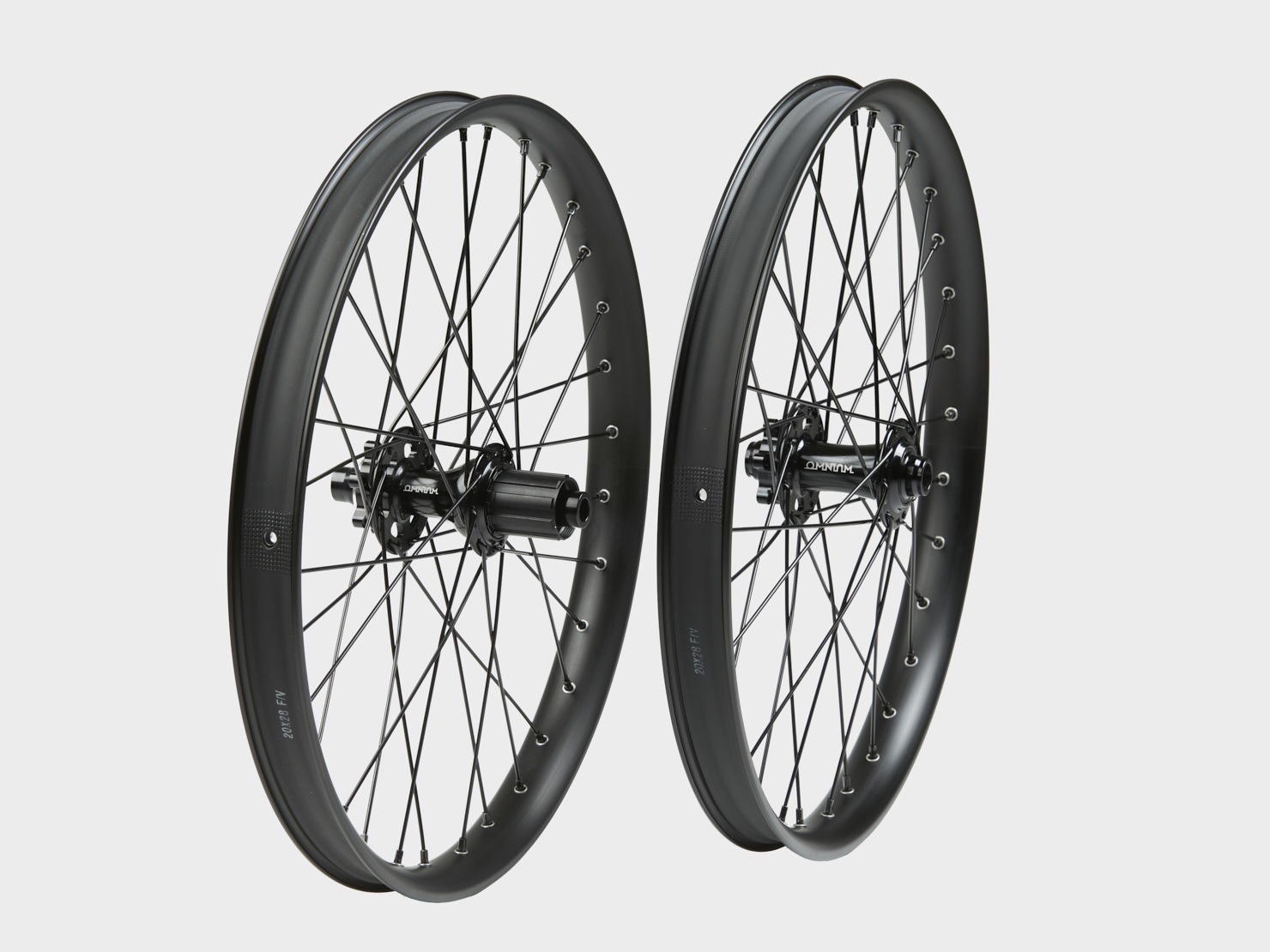

WHEELS
Every complete bike comes with a Omnium wheelset — smooth, reliable, and ready for anything. But if you’re the kind of rider who’s always on the move, day or night, you can upgrade to the Dynamo wheelset accompanied with a Supernova light set. It keeps your lights powered as you ride, no charging or batteries needed. Whether you stick with the standard setup or go for the always-on convenience of Dynamo.
| Rear Wheel | Front Wheel | Dynamo Wheel | |
| Rim Weight | 445g | 445g | 445g |
| Wheel Weight | 1030g | 790g | 1030g |
| Max Carrying Capacity | 150kg | 150kg | 150kg |
| Rim Material | Aluminum | Aluminum | Aluminum |
| Rim Model | WiFi | WiFi | WiFi |
| Tire Interface | Hooked | Hooked | Hooked |
| Valve Hole | Presta | Presta | Presta |
| Rim Diameter | 20″ / 406 | 20″ / 406 | 20″ / 406 |
| Inner Width | 32mm | 32mm | 32mm |
| Outer Width | 38mm | 38mm | 38mm |
| Holes | 32 | 32 | 32 |
| Axle System | 12 mm Thru Axle | 15 mm Thru Axle | 15 mm Thru Axle |
| Built-In Dimension | 142mm | 100mm | 100mm |
| Brake Interface | Disc 6 Bolt | Disc 6 Bolt | Disc 6 Bolt |
| Cassette Interface | Shimano Road (HG) | – | – |
| Freehub System | 3 Pawl | – | – |
| Spokes | 13 Gauge Stainless | 13 Gauge Stainless | 13 Gauge Stainless |
| Nipples | Brass nipples 2.0 x 13 | Brass nipples 2.0 x 13 | Brass nipples 2.0 x 13 |
| Compatability | Nano | Nano | Nano |
SPECS

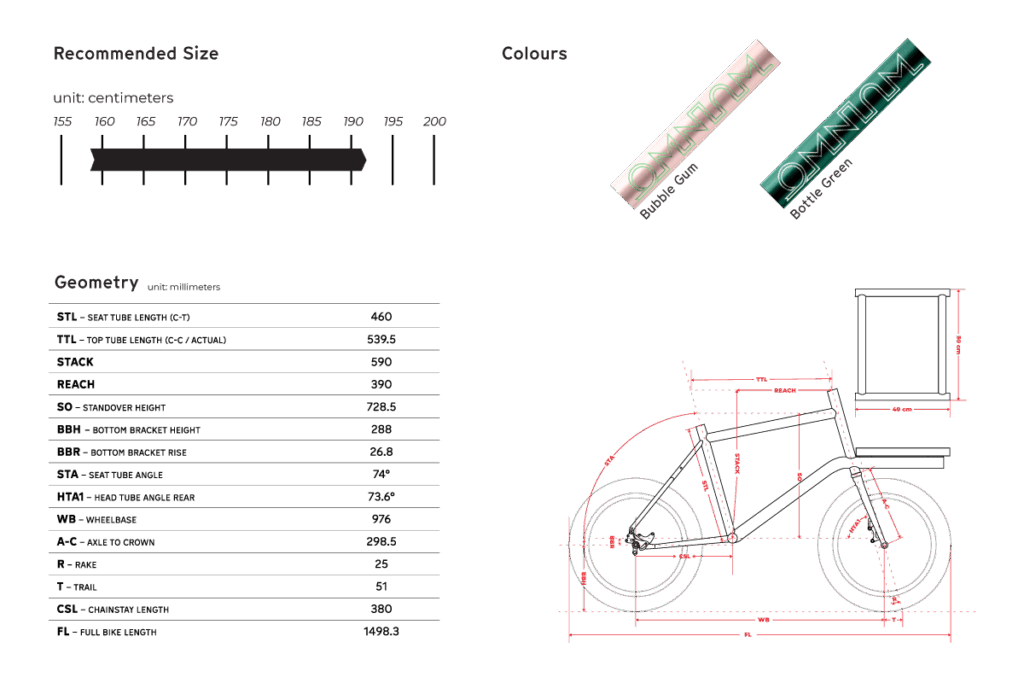

GEO
The frame comes in one size only and is able to fit riders that are between 160cm and 190cm tall.
| STL – seat tube length (c-t) | 460 |
| TTL – top tube length (c-c / actual) | 539.5 |
| Stack | 590 |
| Reach | 390 |
| SO – stand over height | 728.5 |
| BBH – bottom bracket height | 288 |
| BBD – bottom bracket rise | 26,8 |
| STA – seat tube angle | 74 |
| HTA1 – head tube angle | 73,6 |
| WB – wheelbase | 976 |
| A-C – axle to crown | 298.5 |
| R – rake | 25 |
| T – trail | 51 |
| CSL – chainstay length | 380 |
| FL – full bike length | 1498.3 |
| Frame Material | Double Butted Chromoly Steel Frame |
| Size | One Size |
| Rack Dimensions | 400x500mm |
| Seat post diameter | 31,6mm |
| Seat post clamp size | 34,9mm |
| Fork Brake Mount | IS – Disc only |
| Rear Brake Mount | Dependent on insert choice – Disc only |
| Rear Wheel | 406 x Dependant on insert choice. |
| Front Wheel | 406, 15x100mm spacing |
| Tyre Clearance Front | 55mm with mudguards |
| Tyre Clearance Rear | 55mm with mudguards* |
| Thru Axle Rear | 12×142, 172mm long, 19mm thread length, 1,5mm pitch |
| Thru Axle Front | 15x100mm, 125mm long, 17mm thread length, 1,5mm pitch |
| Headset | 1 1/8” Ahead |
| Bottom Bracket | 68mm BSA |
| Gears | For 1x rear derailleur gear, single speed or internal hub gears |
| Rack Bolt | M15 x 15mm |
| Standard Rack Weight | TBU |
| Frame Kit Weight | TBU |
| Maximum Loading Weight on Front Rack | 40kg |
| Maximum Total Loading Weight Incl. Rider | 125kg |
BUILD NOTES
IMPORTANT NOTES FOR CHOOCING COMPATIBLE COMPONENTS
WHEN BUILD UP A FRAME KIT.
1X ONLY
The bike is built for 1x only and has a max clearance for 46T chainring – When choosing your chainring size be aware that the bigger the chainring gets the wonkier the angles get and the shifting becomes less reliable.
SHIFTING
We’ve had great success with installing our apex derailleur paired with a 11-36 cassette and that is what will be installed on the completes we offer, but for the home mechanic we recommend trying out an easier set up with a short cage derailleur – Make sure to note the max cassette size compatible for the derailleur to ensure you are getting the desired gear range.
