CXC V3

from 799,00  incl. VAT

Description

The Omnium CXC stands for Cyclo Cross City, and does just that. Commute, gravel, cyclocross, world tour, or alleycat – the CXC will work for you.

With 700x45c tire clearance and triple cage fork mounts, this thing is even adventure ready! Adjustable dropouts let you run singlespeed, fixed, Internal gear hub, or a derailleur. It‘s now also belt drive compatible!

We could go on about possibilities, but in short the CXC is a true Swiss Army knife. There is nothing more versatile.

Design

Frame Kit includes: Frame, fork, axles and seat post binder. Headset not included.

The new fork now features a segmented design, significantly reducing fork judder and flex under braking. It also has triple cage mounts on the fork legs for all your bikepacking needs.

Geometry

CXC V3 (700x40c tires) (unit: millimeters) XS (51) S (53) M (56) L (59) XL (62) XXL (64)
STL – seat tube length (c-t) 510 530 560 590 620 640
TTL – top tube length (c-c / actual) 520 535 555 575 595 610
Stack 497 512 543 573 602 617
Reach 395 402 409 422 434 434
SOH – standover height 782 797 828 858 888 902
BBD – bottom bracket drop 58 58 58 58 58 58
STA – seat tube angle 76° 75.5° 75° 75° 75° 74°
HTA – head tube angle 73.5° 74° 74.5° 75° 75° 75°
HTL – head tube length 66 80 110 140 170 185
WB – wheelbase 977 985 996 1012 1032 1036
A-C – axle to crown 396 396 396 396 396 396
R – rake 45 45 45 45 45 45
T – trail 58 55 52 49 49 49
CSL – chainstay length 410-427 410-427 410-427 410-427 410-427 410-427

Frame Specifications

6 SizesXS (51), S (53), M(56), L (59), XL (62), XXL (64)
MaterialDouble-Butted Chromoly Steel Frame & Fork
GearsFor 1x rear derailleur gear system
Seat post diameter:27.2mm
Rear Wheel:TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only

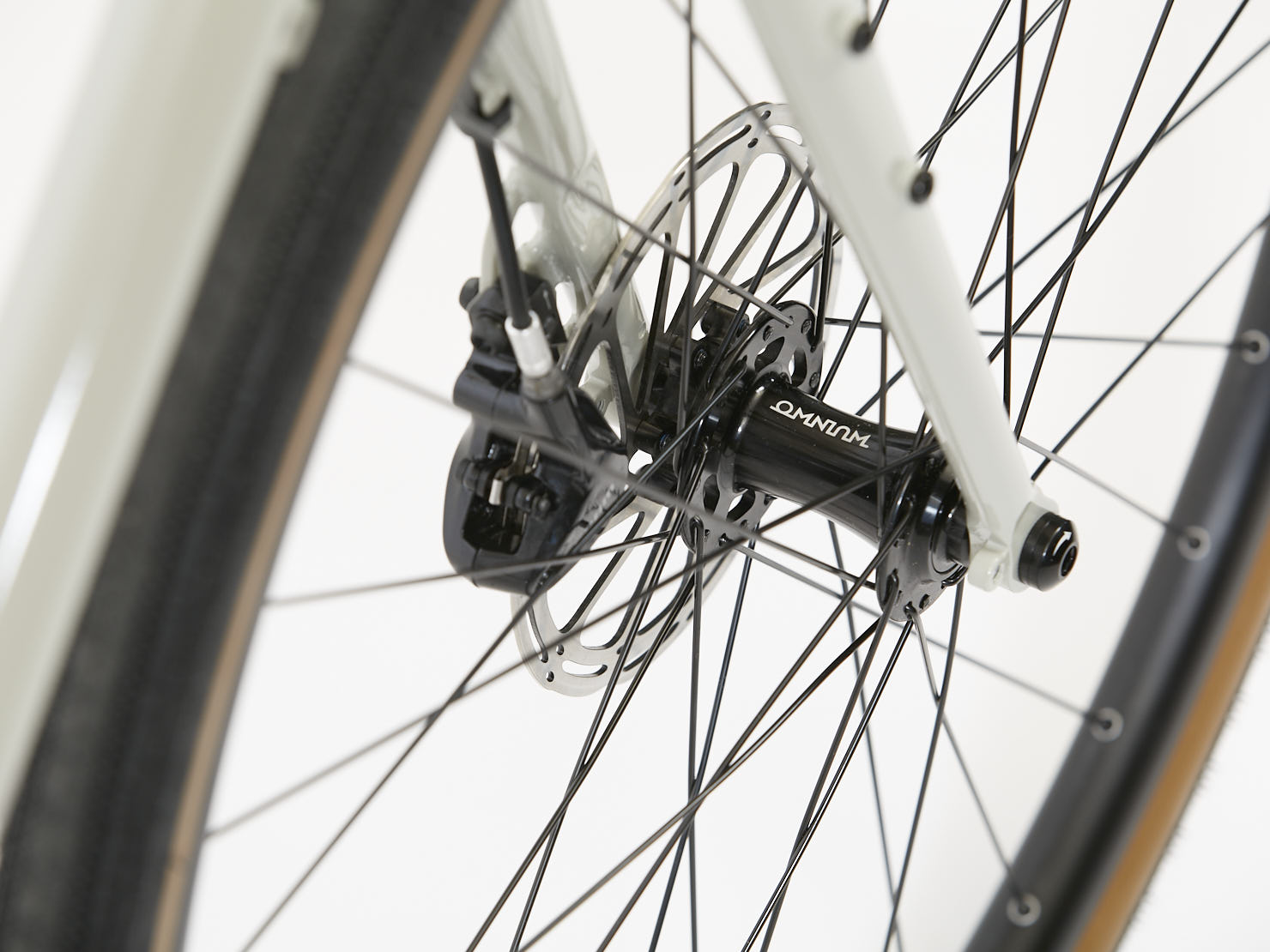

Front Wheel:622, 12 x 100mm spacing, disc only
Tyre clearance, front:45mm clearance with mudguards
Tyre clearance, rear:45mm clearance with mudguards (50mm chainstay clearence)
Thru Axle Rear12×142, 172mm long, 19mm thread length, 1.75mm pitch
Thru Axle Front12×100, 125mm, 17mm thread length, 1.5mm Pitch
Headset:1 1/8″ Ahead
Bottom Bracket:68mm BSA
Brake Mounts:IS brake mount front and rear, for minimum 160mm and max 180 rotors
Q-Factor145mm
Recommended maximum loading weight including rider:100 kg
Framekit includesFrame
Fork
Seatpost binder nut
Thru axles front
Comes with a choice of QR dropouts ore 12mm thru axle inserts and thru axle

Framekit Does NOT include a headset.

Component List CXC Singlespeed

BrakesSram Level TL, IS mount, 160mm rotor front and rear
SinglespeedSram PC830 chain & 15t SS adaptor
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seatpost27.2mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GripsOmnium lock-on, black, foam
CranksetDriveline, 42t, CNC Narrow Wide Chainring
Bottom BracketFSA, Square Taper, 68mm BSA
Headset/sVP Components, sealed bearings, 1-1/8″
SaddleVelo, leather, Chro-mo
TyresDepending on availability
WheelsOmnium Wheelset 622 (700c)
PedalsCast metal platform, black

Component List CXC Flatbar Apex 11

BrakesSram Level TL, IS mount, 160mm rotor front and rear
GearsSram Apex 11 SPD, Sram Force cassette 11-36, PYC 11s chain
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seatpost27.2mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GripsOmnium lock-on, black, foam
CranksetDriveline, 42t, CNC Narrow Wide Chainring
Bottom BracketFSA, Square Taper, 68mm BSA
Headset/sVP Components, sealed bearings, 1-1/8″
SaddleVelo, leather, Chro-mo
TyresDepending on availability
WheelsOmnium Wheelset 622 (700c)
PedalsCast metal platform, black
