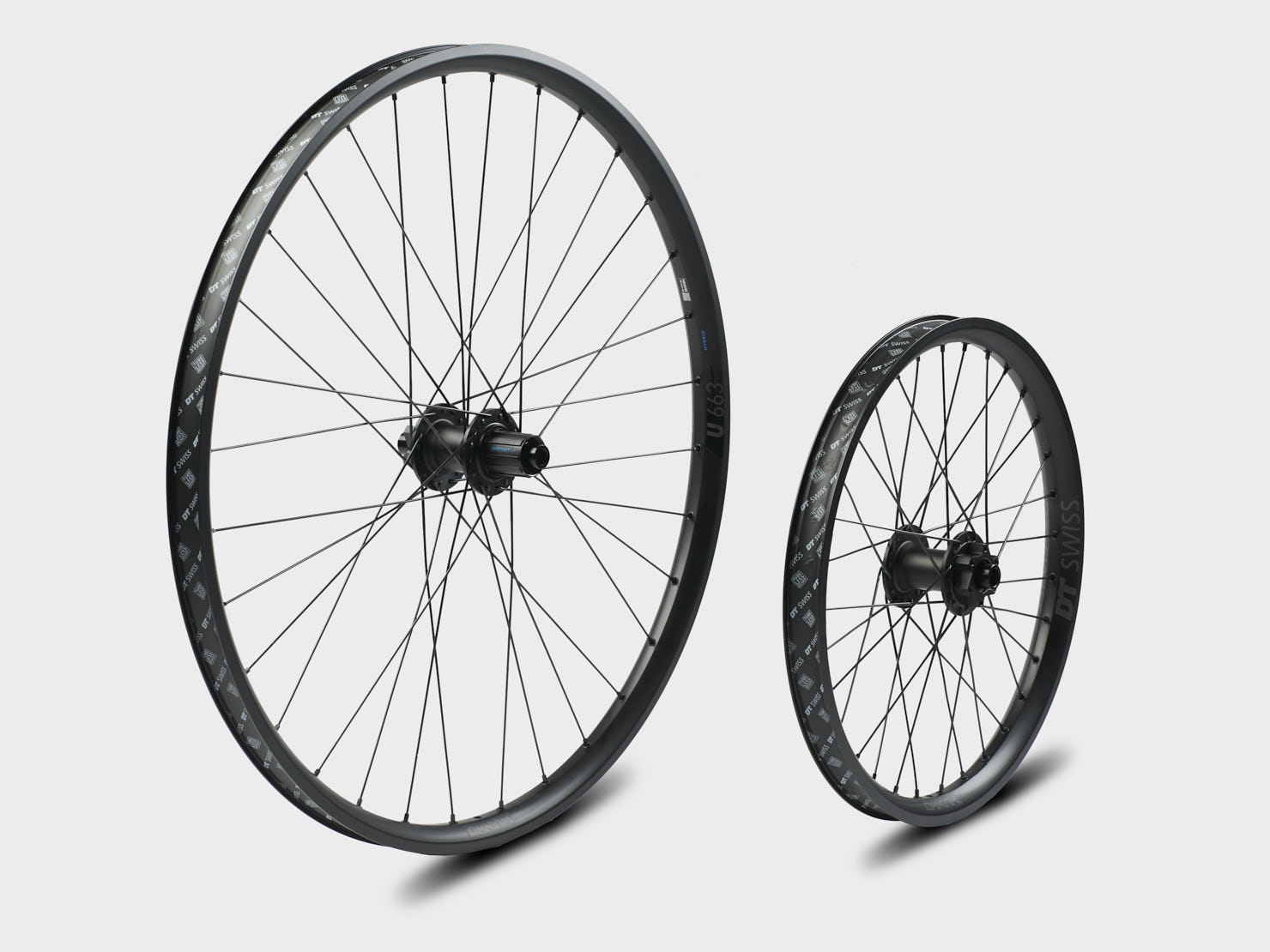

DT Swiss x Omnium: The First-Ever Cargo Wheelset Built for Urban Load-Bearing Performance

At Omnium, innovation, durability, and performance aren’t just buzzwords—they’re built into every ride. That’s why we’re thrilled to unveil our newest collaboration: the first-ever DT Swiss cargo wheelset, developed specifically for our Mini, Mini-Max, and Cargo bikes.

For over 30 years, DT Swiss has set the benchmark for premium cycling components, trusted by elite athletes and everyday riders alike. With this partnership, we’re bringing their signature precision to a new frontier—heavy-duty, utility-focused cycling.

Whether you’re hauling groceries, deliveries, gear, or crushing two-wheeled transport, this wheelset delivers uncompromising strength and stability without sacrificing performance. Built to handle urban weight and wear, every component — from the reinforced U663 aluminum rims to the Alpine II spokes and 370 hubs — is designed to meet the high demands of cargo riding.



Specifications

Rear WheelFront WheelDynamo Wheel
Rim Weight760g500g 500g
Wheel Weight1414g880g1150g
Max Carrying Capacity180kg180kg180kg
Rim MaterialAluminum Aluminum Aluminum
Rim ModelU663U663U663
Tire InterfaceHooked / Crotchet tubeless TCHooked / Crotchet tubeless TCHooked / Crotchet tubeless TC
Valve HolePrestaPrestaPresta
Rim Diameter29″ / 700C 20″ / 406 20″ / 406
Rim ERD599mm383mm383mm
Rim Hight22mm22mm22mm
Inner Width30mm30mm30mm
Outer Width35mm35mm35mm
Holes323232
Hub Type370370SP PD-6
Axle System12 mm Thru Axle15 mm Thru Axle15 mm Thru Axle
Built-In Dimension142mm100mm100mm
Brake InterfaceDisc 6 BoltDisc 6 BoltDisc 6 Bolt
Cassette InterfaceShimano Road (HG)
Freehub BodyShim. RD. 11SP Forged (ASF11)
Freehub SystemRatchet LN 18
SpokesAlpine II Spokes 2.34 / 291 + 289 mmAlpine II Spokes 2.34 / 174mm + 176mm13 Gauge Stainless
NipplesDT Brass Standard Pro Head 2.0 x 14DT Brass Standard Pro Head 2.0 x 14Brass nipples 2.0 x 13
CompatabilityWiFi, V3 & V3.1WiFi, V3 & V3.1WiFi, V3 & V3.1

Compatibility

CompatibilityClassicWiFiV3V3.1
CargoNoYesYesYes
Mini-MaxNoYesYesYes
MiniNoYesYesYes
CXCNo

Installation & Instruction

Scope of Delivery

  • Front wheel
  • Rear wheel
  • Rim tape(installed)
