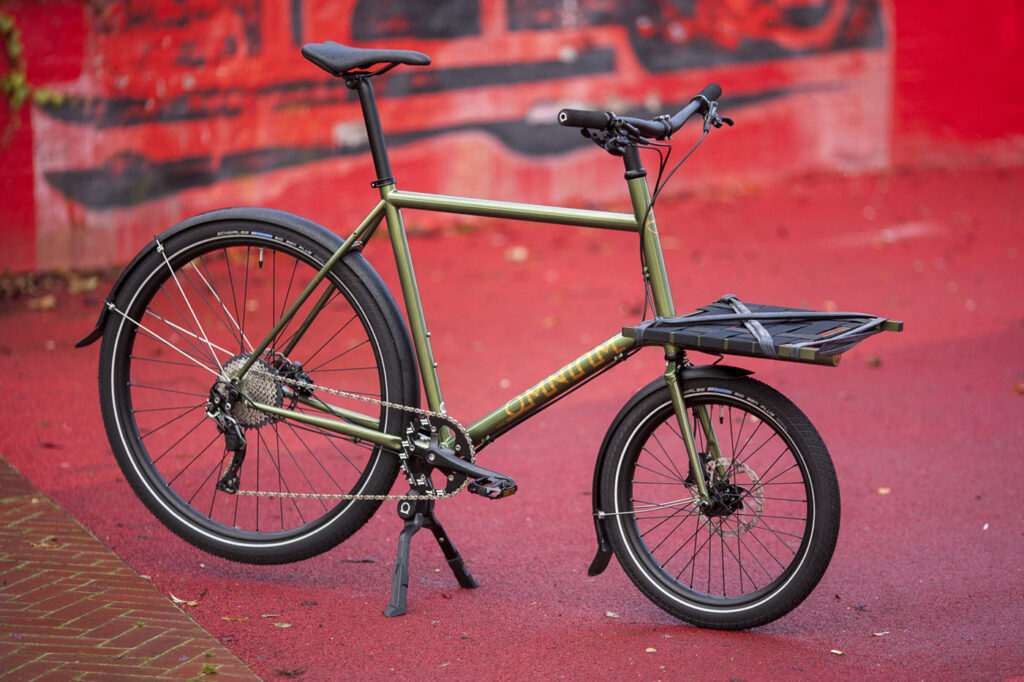

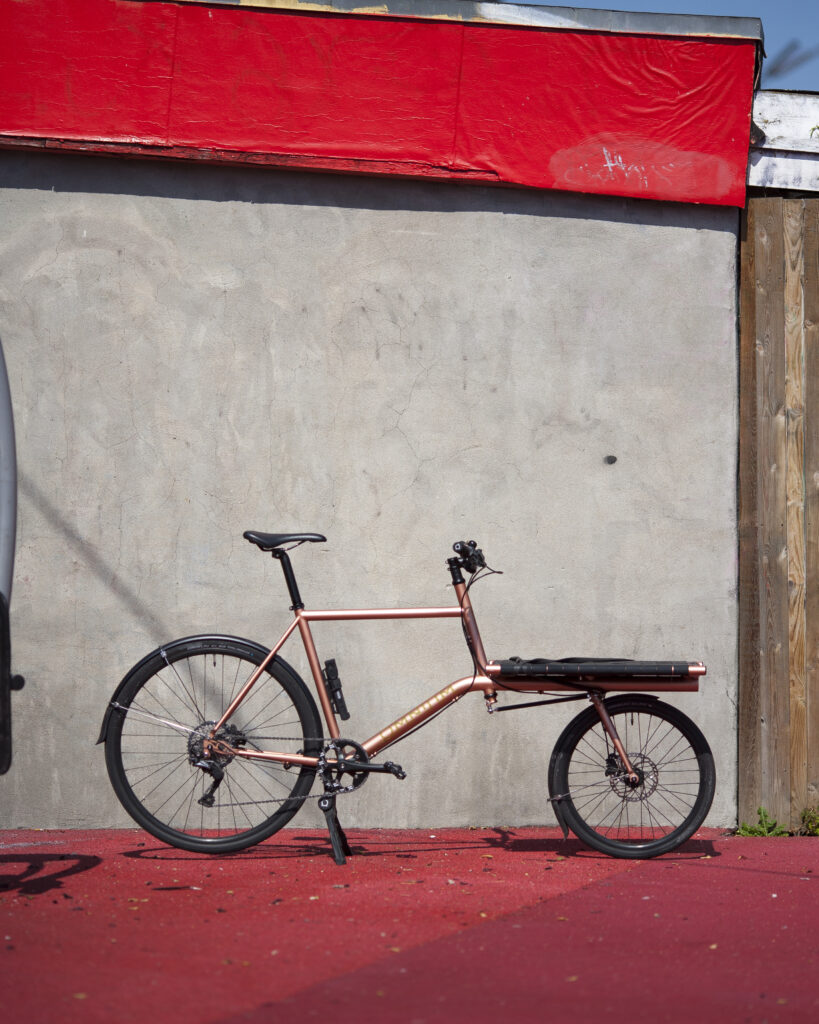

Nano

DESCRIPTION

The Nano is a 2 in 1 solution for urban dwellers, the smaller footprint makes it easier to have a cargo bike in smaller, more cramped urban living quarters while the smaller wheels and shorter wheelbase encourages a fun & agile riding experience, without compromising the loading capabilities.

With a smaller footprint the Nano also makes it easier to integrate your bike with public transportation and encourage multimodal transportation making it easier to ditch your car for even bigger daily distances by bike.

The Nano is integrated with more standards from the Cargo & Mini-Max V3’s making more accessories available to the frame for instance the ability to add the Tilting Rack Bracket giving the option to make the footprint of the bike even smaller when parked.

DESIGN

Designed around two 20” wheels with a 2.15” tyres and shorter wheelbase than our other bikes, this gives us a snappier ride and a small footprint for the overall bike – the smaller wheels also get you up to speed faster which is great for the more start and stop nature of urban riding.

We have slopped the top tube to lower the stand over height and increase the number of people that can enjoy the bike. While only being available in one size, that lower sloped top tube makes it accessible to riders of almost any body proportion fitting riders from 160cm to 190cm and still being a great ride.

While being a small bike the Nano still retains the loading capabilities of our bigger bikes, with a max weight of 125kg you can pack the rack full with whatever you want and never need to worry about reaching its weight limit.

Like our other bikes we use IS brake mount which is optimal for flat bar bikes and gives the rotor adaptation for you brakes – we have also kept the 15x100mm thru axle on the fork – while the rear will depend on your choice of rocker dropouts.

NANO STORIES

The Nano Goes the Distance — From Prototype to Podium

When we finally got our hands on the first brand new Omnium Nano, we took it to the other side of the world to test it out at the Cycle Messenger World Championships. Spoiler alert — the Nano crossed the line in first place.

READ MORE

A DAY AT THE PARK

Photograher Patrik Lundin teamed up with a pair of local BMX riders and took the Nano for a spin around the local skate parks, to see if we could test the Nano to its limits.

READ MORE

20″ FESTIVAL BERLIN

We took our Nano prototype to Berlin to get some feedback – it was an amazing festival and great to se all the 20″ bikes.

READ MORE

ESSENTIAL ACCESSORIES

Adapt the Nano to your needs – Webbing is essential to carry most things, but looking to boost your load add the extender, Loads of multimodal add the tilting rack bracket to minimize the footprint!

NANO WEBBING

ESSENTIAL FINISHING KIT FOR THE NANO, THE WEBBING COVERS YOUR RACK SO YOU CAN CARRY ALL YOUR STUFF.

SHOP

NANO KICKSTAND

WITH THE NANO COMES A NEW KICKSTAND AN ESSENTIAL AND INCLUDED WITH COMPLETES.

SHOP

SUPERNOVA DYNAMO LIGHT SET

THE NANO HAS BEEN DESIGNED TO ALSO BE COMPATIBLE WITH THE SUPERNOVA DYNAMO LIGHT SET.

SHOP

NANO EXTENDER

THE NANO RACK ALSO MAKES IT POSSIBLE TO INSTALL THE NEW NANO EXTENDER

SHOP

NANO MUDGUARDS

MUDGUARDS ARE A SMART ADD-ON FOR WET RIDES—THEY KEEPS YOU DRY AND PROTECT YOUR DRIVETRAIN FROM GRIME.

SHOP

TILTING RACK BRACKET

NANO NOW HAS NEW RACK MOUNTS THAT SUPPORT A TILTING BRACKET, SHRINKING ITS FOOTPRINT FOR EASY TRANSPORT.

SHOP

DRIVETRAIN

COCKPIT & FINISHING KIT

When you order a complete bike, it comes ready to ride with our standard Omnium cockpit — a solid, well-balanced setup that delivers comfort and control right out of the box. But if you want to fine-tune your fit or match your riding style, you’ve got options. In the Bike Builder, you can choose your preferred handlebar, stem, saddle, and more to create a cockpit that suits your look and feel. Whether you’re all about long rides, city cruising, or hauling with style, you can dial it in so your bike feels exactly right for you.

HANDLEBAROmnium Riserbar | Multiple Choice in Bike Builder
STEMOmnium LW Stem | Multiple Choice in Bike Builder
GRIPSOmnium Lock On Foam Grips | Multiple Choice in Bike Builder
HEADSETOmnium Headset
SEATPOSTOmnium Forged Seatpost | Multiple Choice in Bike Builder
SADDLEOmnium Standard Saddle | Multiple Choice in Bike Builder
PEDALSOmnium Cargo Pedals | Multiple Choice in Bike Builder
COLUMN SPACERSOmnium Spacer 15mm x4

GEARS AND BRAKES

The Omnium Nano comes equipped with the SRAM Apex 11-speed groupset — a setup that delivers smooth, reliable shifting and solid performance whether you’re climbing, cruising, or carrying a load. We’ve paired the Apex derailleur with an 11–36 cassette and a 42t chainring, which, combined with the Nano’s 20” wheels, comes out to a lower effective gear range. It’s a proven combination that handles city rides and steep hills with ease, keeping the Nano responsive and ready for whatever your ride throws at it.

DerailleurSram Apex 11
CassetteSram Force 11-36
ChainKMC
ShifterSram Apex
Bottom BracketFSA 110mm Square Taper
CranksOMNIUM Narrow Wide Cranks
BrakesSram Level TL
Front WheelOmnium Nono Wheel: 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
Rear WheelOmnium Nano Wheel: 12 x 142mm thru axle 406 (20”) rear, 38mm outer width rims
TyresSchwalbe Big Ben (55-406)
Complete Build Weight16,5kg

WHEELS

Every complete bike comes with a Omnium wheelset — smooth, reliable, and ready for anything. But if you’re the kind of rider who’s always on the move, day or night, you can upgrade to the Dynamo wheelset accompanied with a Supernova light set. It keeps your lights powered as you ride, no charging or batteries needed. Whether you stick with the standard setup or go for the always-on convenience of Dynamo.

Rear WheelFront WheelDynamo Wheel
Rim Weight445g445g445g
Wheel Weight1030g790g1030g
Max Carrying Capacity150kg150kg150kg
Rim MaterialAluminum Aluminum Aluminum
Rim ModelWiFiWiFiWiFi
Tire InterfaceHooked Hooked Hooked
Valve HolePrestaPrestaPresta
Rim Diameter20″ / 406 20″ / 406 20″ / 406
Inner Width32mm32mm32mm
Outer Width38mm38mm38mm
Holes323232
Axle System12 mm Thru Axle15 mm Thru Axle15 mm Thru Axle
Built-In Dimension142mm100mm100mm
Brake InterfaceDisc 6 BoltDisc 6 BoltDisc 6 Bolt
Cassette InterfaceShimano Road (HG)––
Freehub System3 Pawl––
Spokes13 Gauge Stainless13 Gauge Stainless13 Gauge Stainless
NipplesBrass nipples 2.0 x 13Brass nipples 2.0 x 13Brass nipples 2.0 x 13
CompatabilityNanoNanoNano


SHOP COMPLETE
SHOP FRAME KIT

SPECS

GEO

The frame comes in one size only and is able to fit riders that are between 160cm and 190cm tall.

Nano V1One Size
STL – seat tube length (c-t)460
TTL – top tube length (c-c / actual)539.5
Stack590
Reach390
SO – stand over height728.5
BBH – bottom bracket height288
BBD – bottom bracket rise26,8
STA – seat tube angle74
HTA1 – head tube angle73,6
WB – wheelbase976
A-C – axle to crown298.5
R – rake25
T – trail51
CSL – chainstay length380
FL – full bike length1498.3
Nano – All Measurements In MM

Frame MaterialDouble Butted Chromoly Steel Frame
SizeOne Size
Rack Dimensions400x500mm
Seat post diameter31,6mm
Seat post clamp size34,9mm
Fork Brake MountIS – Disc only
Rear Brake MountDependent on insert choice – Disc only
Rear Wheel406 x Dependant on insert choice.
Front Wheel406, 15x100mm spacing
Tyre Clearance Front55mm with mudguards
Tyre Clearance Rear55mm with mudguards*
Thru Axle Rear12×142, 172mm long, 19mm thread length, 1,5mm pitch
Thru Axle Front15x100mm, 125mm long, 17mm thread length, 1,5mm pitch
Headset1 1/8” Ahead
Bottom Bracket68mm BSA
GearsFor 1x rear derailleur gear, single speed or internal hub gears
Frame SplitYes
Rack BoltM15 x 15mm
Standard Rack WeightTBU
Frame Kit Weight7kg
Maximum Loading Weight on Front Rack50kg
Maximum Total Loading Weight Incl. Rider125kg
*Rear tyre clearance is restricted by chain line compatibility

Frame Kit7kg
Complete Apex Build16,5kg

Weight includes pedals and kickstsand, but are with out accessories(Webbing, Extender, ETC)

BUILD NOTES

IMPORTANT NOTES FOR CHOOCING COMPATIBLE COMPONENTS
WHEN BUILD UP A FRAME KIT.

SHOP FRAME KIT

1X ONLY

The bike is built for 1x only and has a max clearance for 46T chainring – When choosing your chainring size be aware that the bigger the chainring gets the wonkier the angles get and the shifting becomes less reliable.

SHIFTING

We’ve had great success with installing our apex derailleur paired with a 11-36 cassette and that is what will be installed on the completes we offer, but for the home mechanic we recommend trying out an easier set up with a short cage derailleur – Make sure to note the max cassette size compatible for the derailleur to ensure you are getting the desired gear range.

SINGLE SPEED

You could also run the Nano single speed with our SS kit and wide narrow crank set, that will get you a really comfortable 42-15 gear range.

RECOMMENDATIONS

We recommend getting parts to try out or consult with your local mechanic before investing in you dream set up as, the trickier nature of the 20” rear wheel makes installing some drivetrain options difficult.

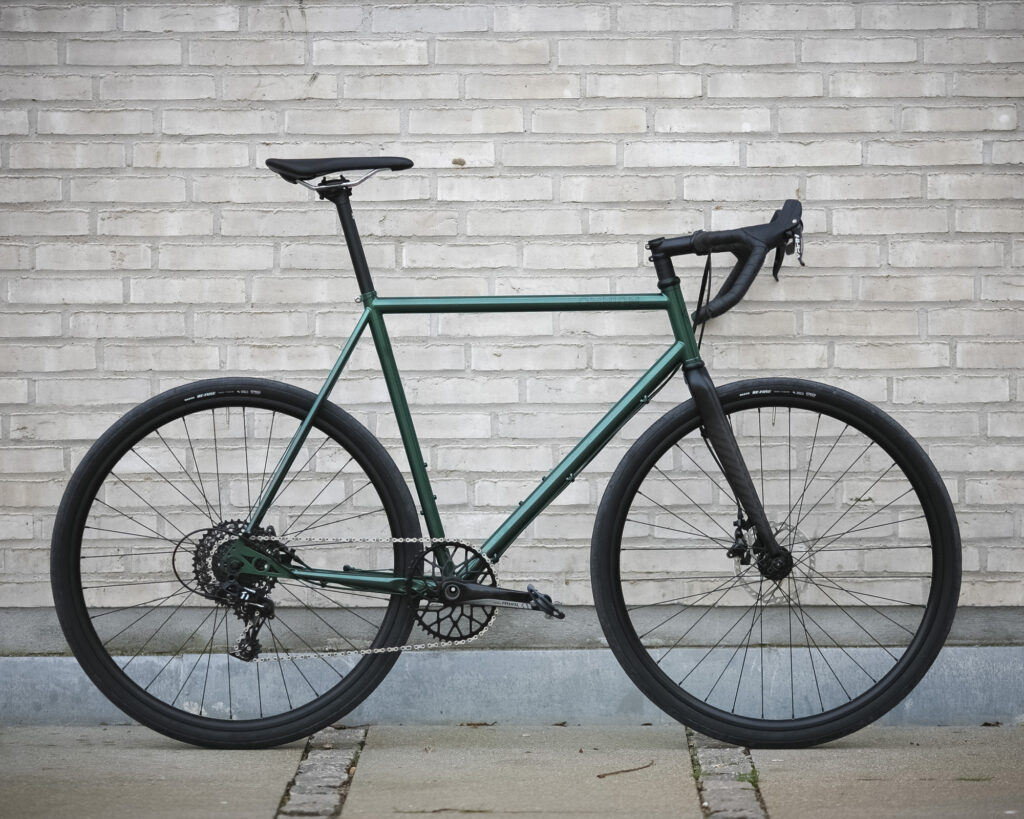

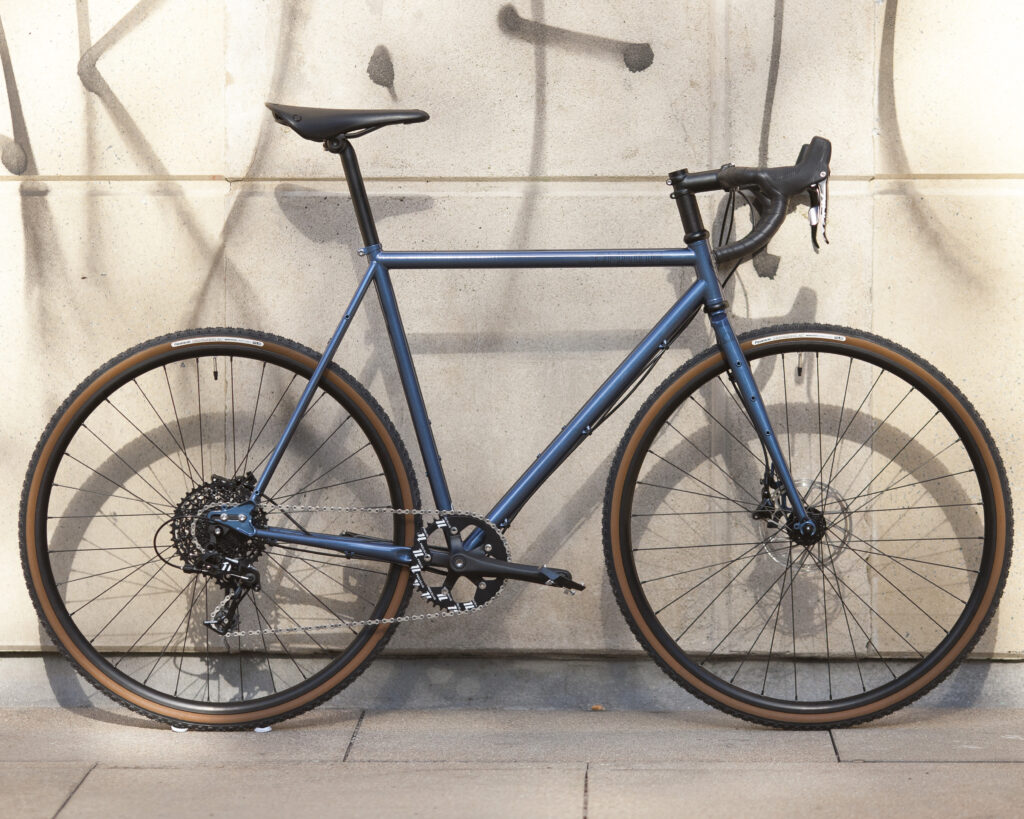

CXC V4

V4 UPDATES

The CXC has been updated and it is now in its 4th iteration. With this new edition we have swapped the brake mounts for Flat Mount, this will make it easier to equip the cxc with the newest drop bar groupsets.

We have also swapped the traditional binder bolt for af collar that adds a more strength and replaceability should any thing brake.

A SWISS ARMY KNIFE

Meet the Omnium CXC, our most adaptable all-rounder. It’s built for riders who want a bike that handles city commutes, all road, and weekend adventures with ease.

The CXC combines the quick, responsive feel of a track bike with the clearance and mounts of an all road setup. It’s tough, agile, and ready to ride anywhere you want to go.

Made from triple-butted steel, the frame balances everyday durability with a responsive feel. It’s ED-coated for extra protection against the elements, so you can ride year-round without worry. Adjustable rocker dropouts and a belt split let you choose your setup — geared, single-speed, or belt-drive.

The segmented steel fork is designed for disc brakes and features triple cage mounts on both legs, giving you plenty of space for bottles or bags when you’re loading up. Add racks, fenders, and wide tires — the CXC is built to adapt to your needs.

Whether you’re tackling your daily commute, exploring back roads, or hitting the track, the CXC delivers a fast, agile, and reliable ride every time.

CXC STORIES

Allan In Mexico – Again

It’s always summer somewhere. This January our resident adventure Cowboy Allan Shaw took a break from the Nordic winter to travel back to Mexico City and rediscover the epic cycling of the place he’s called home more than once in his life.

READ MORE

SHOP FRAME KIT

CXC BIKE PACKING

Looping around the Baltic states on a couple of touring set up CXC’s

READ MORE

SHOP CXC

SHOP CXC DROPBAR

Frame

Kit

The CXC is as versitile a frame as you can think of – Ideal for customizing your own set up.

SHOP FRAME KIT

BUILD NOTES

Brake Standards

CXC frame kits come standard as flatmount – Inserts can be swapped for post mount – this will not change the front brakes mount that will still be flat mount, but you can easily buy a flat to post mount adaptor.

Headset & Fork Compatibility

Frame kits requires a standard 1 1/8 headset for straight steerers, make sure to check the spec sheet for the correct sizing of the headset and take note that replacing the fork whilst most carbon forks have a tapered steerer straight steerer carbon forks are still available, so make sure to check the specs for a replacement fork to ensure compatibility.

Drivetrain

Any 1×11 speed and newer gravel drivetrain from Shimano or Sram will provide compatibility and great shifting. Avoid MTB specific cranksets.

Shimano Cues or Microshift Sword are also great options for a 1×10 speeds groupset.

Made for 1x: whilst we offer a derailleur stop for 2x there is no routing for it on the frame, and you will have to figure out compatibility for the parts you want to install.

Tyre Clearence

CXC’s have a max tyre clearence of 45mm.

If you are in doubt contact you local bike shop

DRIVETRAIN OPTIONS

Gears are great, but they also require maintance and have moving parts that can break – When it comes to simplicity, nothing beats single speed.
With the one right gear urban commuting is as simple and enjoyable as it will ever be.

Brakes Sram Level TL
Rotors Sram Centerline 160mm 6 Bolt
Rear Cog 15t SS Adaptor
Chain Sram PC830
Crankset Driveline, 42t, CNC Narrow Wide Chainring
Bottom Bracket FSA, Square Taper, 68mm BSA

DT Swiss G1800 Rear Wheel Front Wheel Dynamo Wheel
Supplier Name G 1800 SPLINE db 25 12/142 mm Shimano G 1800 SPLINE db 25 12/100 mm G 1800 SPLINE db 25 12/100 mm Dynamo
Supplier SKU W0G1800NIDMSA21294 W0G1800AIDXSA21293 W0G1800AIDXSA27425
Net Weight 994g 864g 1098g
Max Carrying Capacity 130kg 130kg 130kg
Rim Material Aluminum  Aluminum  Aluminum
Tire Interface Hooked / Crotchet tubeless TC Hooked / Crotchet tubeless TC Hooked / Crotchet tubeless TC
Valve Hole Presta Presta Presta
Rim Diameter 29″ / 700C  29″ / 700C  29″ / 700C
Rim Hight 25mm 25mm 25mm
Inner Width 24mm 24mm 24mm
Outer Width 28mm 28mm 28mm
Holes 32 32 32
Hub Type 370 370 370
Axle System 12 mm Thru Axle 12 mm Thru Axle 12 mm Thru Axle
Built-In Dimension 142mm 100mm 100mm
Brake Interface Disc Center Lock Disc Center Lock Disc Center Lock
Cassette Interface Shimano Road (HG) – –
Freehub Body Shim. RD. 11SP Forged (ASF11) – –
Freehub System Ratchet LN 18  – –
Spokes DT aero comp® wide straightp DT aero comp® wide straightp DT aero comp® wide straightp
Spoke Pattern Two-cross (1:1) Two-cross (1:1) Two-cross (1:1)
Nipples DT ProLock Squorx ProHead alu DT ProLock Squorx ProHead alu DT ProLock Squorx ProHead alu
Tubeless Tape (Included) Tubeless tape 27 mm Tubeless tape 27 mm Tubeless tape 27 mm
Tubless Valve (Included, not installed) TL valve alu black 18-25 mm  TL valve alu black 18-25 mm  TL valve alu black 18-25 mm
Compatability CXC v2.1, v3.0 & v4.0 CXC v2.1, v3.0 & v4.0 CXC v2.1, v3.0 & v4.0

HANDLEBAR Omnium Riserbar | Multiple Choice in Bike Builder
STEM Omnium LW Stem | Multiple Choice in Bike Builder
GRIPS Omnium Lock On Foam Grips | Multiple Choice in Bike Builder
HEADSET REAR Omnium 1 1/8 Threadless Headset
HEADSET FRONT Omnium Integrated Front Headset
SEATPOST Omnium Forged Seatpost | Multiple Choice in Bike Builder
SADDLE Omnium Standard Saddle | Multiple Choice in Bike Builder
PEDALS Omnium Cargo Pedals | Multiple Choice in Bike Builder
KICKSTAND Omnium Cargo Kickstand
MUDGUARDS Omnium V3 60mm Mudguards
COLUMN SPACERS Omnium Spacer 15mm x4
SEATPOST CLAMP Omnium Seatpost Clamp

Apex is SRAM’s dedicated gravel groupset, a 1×11 groupset with wide range and is simple to use. With a long cage that fits a 42-tooth cassette and the X-HORIZON design reduces shifting force adding extra comfort. It also comes with Sram CAGE LOCK making wheel removal and maintenance much easier.

APEX comes as both flatbar compatible, as well as a dropbar version, we offer both.

Brakes Sram Level TL | IS mount
Rotors Sram Centerline 6 Bolt Rotor 160mm
Derailleur Sram Apex 11 SPD
Cassette Sram PG-1130 11-42
Chain KMC 11 Spd Chain EPT
Crankset Omnium Wide Narrow Cranks 42t
Bottom Bracket FSA 10,5mm Square Taper

DT Swiss G1800 Rear Wheel Front Wheel Dynamo Wheel
Supplier Name G 1800 SPLINE db 25 12/142 mm Shimano G 1800 SPLINE db 25 12/100 mm G 1800 SPLINE db 25 12/100 mm Dynamo
Supplier SKU W0G1800NIDMSA21294 W0G1800AIDXSA21293 W0G1800AIDXSA27425
Net Weight 994g 864g 1098g
Max Carrying Capacity 130kg 130kg 130kg
Rim Material Aluminum  Aluminum  Aluminum
Tire Interface Hooked / Crotchet tubeless TC Hooked / Crotchet tubeless TC Hooked / Crotchet tubeless TC
Valve Hole Presta Presta Presta
Rim Diameter 29″ / 700C  29″ / 700C  29″ / 700C
Rim Hight 25mm 25mm 25mm
Inner Width 24mm 24mm 24mm
Outer Width 28mm 28mm 28mm
Holes 32 32 32
Hub Type 370 370 370
Axle System 12 mm Thru Axle 12 mm Thru Axle 12 mm Thru Axle
Built-In Dimension 142mm 100mm 100mm
Brake Interface Disc Center Lock Disc Center Lock Disc Center Lock
Cassette Interface Shimano Road (HG) – –
Freehub Body Shim. RD. 11SP Forged (ASF11) – –
Freehub System Ratchet LN 18  – –
Spokes DT aero comp® wide straightp DT aero comp® wide straightp DT aero comp® wide straightp
Spoke Pattern Two-cross (1:1) Two-cross (1:1) Two-cross (1:1)
Nipples DT ProLock Squorx ProHead alu DT ProLock Squorx ProHead alu DT ProLock Squorx ProHead alu
Tubeless Tape (Included) Tubeless tape 27 mm Tubeless tape 27 mm Tubeless tape 27 mm
Tubless Valve (Included, not installed) TL valve alu black 18-25 mm  TL valve alu black 18-25 mm  TL valve alu black 18-25 mm
Compatability CXC v2.1, v3.0 & v4.0 CXC v2.1, v3.0 & v4.0 CXC v2.1, v3.0 & v4.0

HANDLEBAR Omnium Riserbar | Multiple Choice in Bike Builder
STEM Omnium LW Stem | Multiple Choice in Bike Builder
GRIPS Omnium Lock On Foam Grips | Multiple Choice in Bike Builder
HEADSET REAR Omnium 1 1/8 Threadless Headset
HEADSET FRONT Omnium Integrated Front Headset
SEATPOST Omnium Forged Seatpost | Multiple Choice in Bike Builder
SADDLE Omnium Standard Saddle | Multiple Choice in Bike Builder
PEDALS Omnium Cargo Pedals | Multiple Choice in Bike Builder
KICKSTAND Omnium Cargo Kickstand
MUDGUARDS Omnium V3 60mm Mudguards
COLUMN SPACERS Omnium Spacer 15mm x4
SEATPOST CLAMP Omnium Seatpost Clamp

Apex is SRAM’s dedicated gravel groupset, a 1×11 groupset with wide range and is simple to use. With a long cage that fits a 42-tooth cassette and the X-HORIZON design reduces shifting force adding extra comfort. It also comes with Sram CAGE LOCK making wheel removal and maintenance much easier.

The dropbar version of the APEX drivetrain.

Brakes Sram Level TL | IS mount
Rotors Sram Centerline 6 Bolt Rotor 160mm
Derailleur Sram Apex 11 SPD
Cassette Sram PG-1130 11-42
Chain KMC 11 Spd Chain EPT
Crankset Omnium Wide Narrow Cranks 42t
Bottom Bracket FSA 10,5mm Square Taper

DT Swiss G1800 Rear Wheel Front Wheel Dynamo Wheel
Supplier Name G 1800 SPLINE db 25 12/142 mm Shimano G 1800 SPLINE db 25 12/100 mm G 1800 SPLINE db 25 12/100 mm Dynamo
Supplier SKU W0G1800NIDMSA21294 W0G1800AIDXSA21293 W0G1800AIDXSA27425
Net Weight 994g 864g 1098g
Max Carrying Capacity 130kg 130kg 130kg
Rim Material Aluminum  Aluminum  Aluminum
Tire Interface Hooked / Crotchet tubeless TC Hooked / Crotchet tubeless TC Hooked / Crotchet tubeless TC
Valve Hole Presta Presta Presta
Rim Diameter 29″ / 700C  29″ / 700C  29″ / 700C
Rim Hight 25mm 25mm 25mm
Inner Width 24mm 24mm 24mm
Outer Width 28mm 28mm 28mm
Holes 32 32 32
Hub Type 370 370 370
Axle System 12 mm Thru Axle 12 mm Thru Axle 12 mm Thru Axle
Built-In Dimension 142mm 100mm 100mm
Brake Interface Disc Center Lock Disc Center Lock Disc Center Lock
Cassette Interface Shimano Road (HG) – –
Freehub Body Shim. RD. 11SP Forged (ASF11) – –
Freehub System Ratchet LN 18  – –
Spokes DT aero comp® wide straightp DT aero comp® wide straightp DT aero comp® wide straightp
Spoke Pattern Two-cross (1:1) Two-cross (1:1) Two-cross (1:1)
Nipples DT ProLock Squorx ProHead alu DT ProLock Squorx ProHead alu DT ProLock Squorx ProHead alu
Tubeless Tape (Included) Tubeless tape 27 mm Tubeless tape 27 mm Tubeless tape 27 mm
Tubless Valve (Included, not installed) TL valve alu black 18-25 mm  TL valve alu black 18-25 mm  TL valve alu black 18-25 mm
Compatability CXC v2.1, v3.0 & v4.0 CXC v2.1, v3.0 & v4.0 CXC v2.1, v3.0 & v4.0

HANDLEBAR Omnium Riserbar | Multiple Choice in Bike Builder
STEM Omnium LW Stem | Multiple Choice in Bike Builder
GRIPS Omnium Lock On Foam Grips | Multiple Choice in Bike Builder
HEADSET REAR Omnium 1 1/8 Threadless Headset
HEADSET FRONT Omnium Integrated Front Headset
SEATPOST Omnium Forged Seatpost | Multiple Choice in Bike Builder
SADDLE Omnium Standard Saddle | Multiple Choice in Bike Builder
PEDALS Omnium Cargo Pedals | Multiple Choice in Bike Builder
KICKSTAND Omnium Cargo Kickstand
MUDGUARDS Omnium V3 60mm Mudguards
COLUMN SPACERS Omnium Spacer 15mm x4
SEATPOST CLAMP Omnium Seatpost Clamp

SHOP COMPLETES

SPECS

GEO

The CXC is available in two versions: the trusted Cro-Mo 4130 version in a variety of different colours and the Titanium version with a tapered carbon fork. Run full mudguards and up to 45mm tires, racks, bags and go camping, or strip it down and mash out some kilometers of mixed terrain in turbo mode. There is nothing more versatile.

Getting the perfect fit makes all the difference in how your Omnium feels and performs. Use the chart to find the frame size that best matches your height.

Each Omnium frame size covers a range of rider heights, so if you’re between sizes, consider how you like your bike to feel:

  • Choose the smaller size if you prefer a more agile, responsive ride.
  • Choose the larger size if you want a more stable, stretched-out position.

6 Sizes XS (51), S (53), M(56), L (59), XL (62), XXL (64)
Material Double-Butted Chromoly Steel Frame & Fork
Gears For 1x rear derailleur gear system
Seat post diameter: 27.2mm
Seatpost Binder: TBU
Rear Wheel: TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
Front Wheel: 622, 12 x 100mm spacing, disc only
Tyre clearance, front: 45mm clearance with mudguards
Tyre clearance, rear: 45mm clearance with mudguards (50mm chainstay clearence)
Thru Axle Rear 12×142, 172mm long, 19mm thread length, 1.75mm pitch
Thru Axle Front 12×100, 125mm, 17mm thread length, 1.5mm Pitch
Headset: 1 1/8″ Ahead
Bottom Bracket: 68mm BSA
Gears: For 1x rear derailleur gear, single speed or internal hub gears
Frame Split: Yes
Brake Mounts: FM brake mount front and rear, for minimum 160mm and max 180 rotors
Q-Factor 145mm
Recommended maximum loading weight including rider: 125 kg
Framekit weight(Large); Including Fork, Drop Outs & Axles 3,7 kg

CXC V4 XS (51) S (53) M (56) L (59) XL (62) XXL (64)
STL – seat tube length (c-t) 510 530 560 590 620 640
TTL – top tube length (c-c / actual) 520 535 555 575 595 610
Stack 497 512 543 573 602 617
Reach 395 402 409 422 434 434
SOH – standover height 782 797 828 858 888 902
BBD – bottom bracket drop 58 58 58 58 58 58
STA – seat tube angle 76° 75.5° 75° 75° 75° 74°
HTA – head tube angle 73.5° 74° 74.5° 75° 75° 75°
HTL – head tube length 66 80 110 140 170 185
WB – wheelbase 977 985 996 1012 1032 1036
A-C – axle to crown 396 396 396 396 396 396
R – rake 45 45 45 45 45 45
T – trail 58 55 52 49 49 49
CSL – chainstay length 410-427 410-427 410-427 410-427 410-427 410-427
All units in millimeters (700x40c tires)

Frame
Fork
Seatpost clamp
Thru axles front and rear
Choice of dropouts
Framekit Does NOT include a headset.

Getting the perfect fit makes all the difference in how your Omnium feels and performs. Use the chart to find the frame size that best matches your height.

Each Omnium frame size covers a range of rider heights, so if you’re between sizes, consider how you like your bike to feel:

  • Choose the smaller size if you prefer a more agile, responsive ride.
  • Choose the larger size if you want a more stable, stretched-out position.

6 Sizes XS (51), S (53), M(56), L (59), XL (62), XXL (64)
Material Double-Butted Chromoly Steel Frame & Fork
Gears For 1x rear derailleur gear system
Seat post diameter: 27.2mm
Rear Wheel: TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
Front Wheel: 622, 12 x 100mm spacing, disc only
Tyre clearance, front: 45mm clearance with mudguards
Tyre clearance, rear: 45mm clearance with mudguards (50mm chainstay clearence)
Thru Axle Rear 12×142, 172mm long, 19mm thread length, 1.75mm pitch
Thru Axle Front 12×100, 125mm, 17mm thread length, 1.5mm Pitch
Headset: 1 1/8″ Ahead
Bottom Bracket: 68mm BSA
Brake Mounts: IS brake mount front and rear, for minimum 160mm and max 180 rotors
Q-Factor 145mm
Recommended maximum loading weight including rider: 125 kg
Framekit weight(Large); Including Fork, Drop Outs & Axles 3,7 kg

CXC V3 XS (51) S (53) M (56) L (59) XL (62) XXL (64)
STL – seat tube length (c-t) 510 530 560 590 620 640
TTL – top tube length (c-c / actual) 520 535 555 575 595 610
Stack 497 512 543 573 602 617
Reach 395 402 409 422 434 434
SOH – standover height 782 797 828 858 888 902
BBD – bottom bracket drop 58 58 58 58 58 58
STA – seat tube angle 76° 75.5° 75° 75° 75° 74°
HTA – head tube angle 73.5° 74° 74.5° 75° 75° 75°
HTL – head tube length 66 80 110 140 170 185
WB – wheelbase 977 985 996 1012 1032 1036
A-C – axle to crown 396 396 396 396 396 396
R – rake 45 45 45 45 45 45
T – trail 58 55 52 49 49 49
CSL – chainstay length 410-427 410-427 410-427 410-427 410-427 410-427
All units in millimeters (700x40c tires)

Frame
Fork
Seatpost Binder
Thru axles front & rear
Choice of dropouts
Framekit Does NOT include a headset.

Getting the perfect fit makes all the difference in how your Omnium feels and performs. Use the chart to find the frame size that best matches your height.

Each Omnium frame size covers a range of rider heights, so if you’re between sizes, consider how you like your bike to feel:

  • Choose the smaller size if you prefer a more agile, responsive ride.
  • Choose the larger size if you want a more stable, stretched-out position.

5 Sizes XS (51), S (53), M(56), L (59), XL (62)
Material Titanium
Gears For 1x rear derailleur gear system
Seat post diameter: 31.6mm
Rear Wheel: TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
Fork:  12x100mm thru-axle flatmount (post mount adapter included)
Front Wheel: 622, 12 x 100mm spacing, disc only
Thru Axle Front 12×100, 132mm long, 1.5 pitch
Tyre clearance, front: 45mm clearance with mudguards
Tyre clearance, rear: 45mm clearance with mudguards (50mm chainstay clearence)
Thru Axle Rear 12×142, 167mm long, 21mm thread length, 1,75 pitch
Headset: 1 1/8″ Ahead
Bottom Bracket: 68mm BSA
Brake Mounts: FM brake mount front and rear (Dependent on rear insert), for minimum 160mm and max 180 rotors
Q-Factor 145mm
Recommended maximum loading weight including rider: 100 kg
Framekit weight 2,6 kg



CXC V3 XS (51) S (53) M (56) L (59) XL (62) XXL (64)
STL – seat tube length (c-t) 510 530 560 590 620 640
TTL – top tube length (c-c / actual) 520 535 555 575 595 610
Stack 497 512 543 573 602 617
Reach 395 402 409 422 434 434
SOH – standover height 782 797 828 858 888 902
BBD – bottom bracket drop 58 58 58 58 58 58
STA – seat tube angle 76° 75.5° 75° 75° 75° 74°
HTA – head tube angle 73.5° 74° 74.5° 75° 75° 75°
HTL – head tube length 66 80 110 140 170 185
WB – wheelbase 977 985 996 1012 1032 1036
A-C – axle to crown 396 396 396 396 396 396
R – rake 45 45 45 45 45 45
T – trail 58 55 52 49 49 49
CSL – chainstay length 410-427 410-427 410-427 410-427 410-427 410-427
All units in millimeters (700x40c tires)

Frame
Carbon Fork
Seatpost clamp
Thru axles front & rear
Choice of dropouts
Framekit Does NOT include a headset.

Please Note: The Titanium CXC is only sold under our On-Demand concept – Read More Here

Omnium Specifications Archive

On this page, you will find specification sheets for previous Omnium models and iterations.

Before the introduction of the WiFi and Classic models, there was no standardisation across frames, and each production batch could include small, undocumented changes. As a result, some batches may not be shown in these charts. If your bike does not fall into any of the categories listed below, please get in touch and we will do our best to locate the relevant frame specifications for you.

Please note that the reference names used here are simply nicknames from our workshop, created to help identify these early generations. They are not official designations, and not all variations are represented.

Jump To Model

Cargo

Mini-Max

Mini

CXC

Other

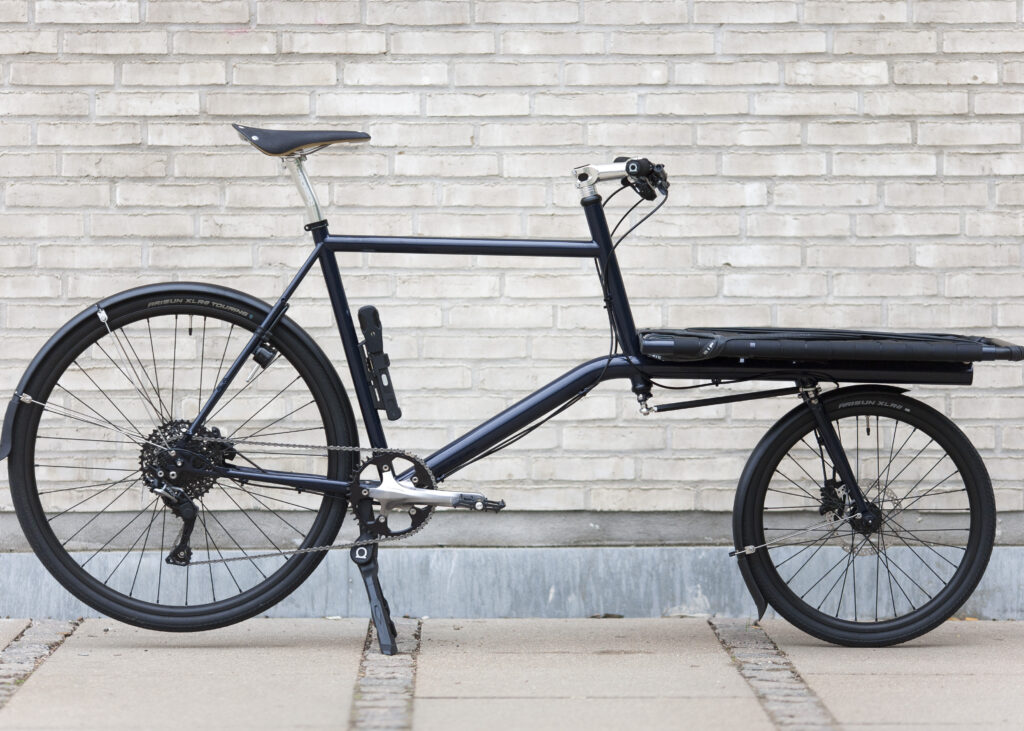

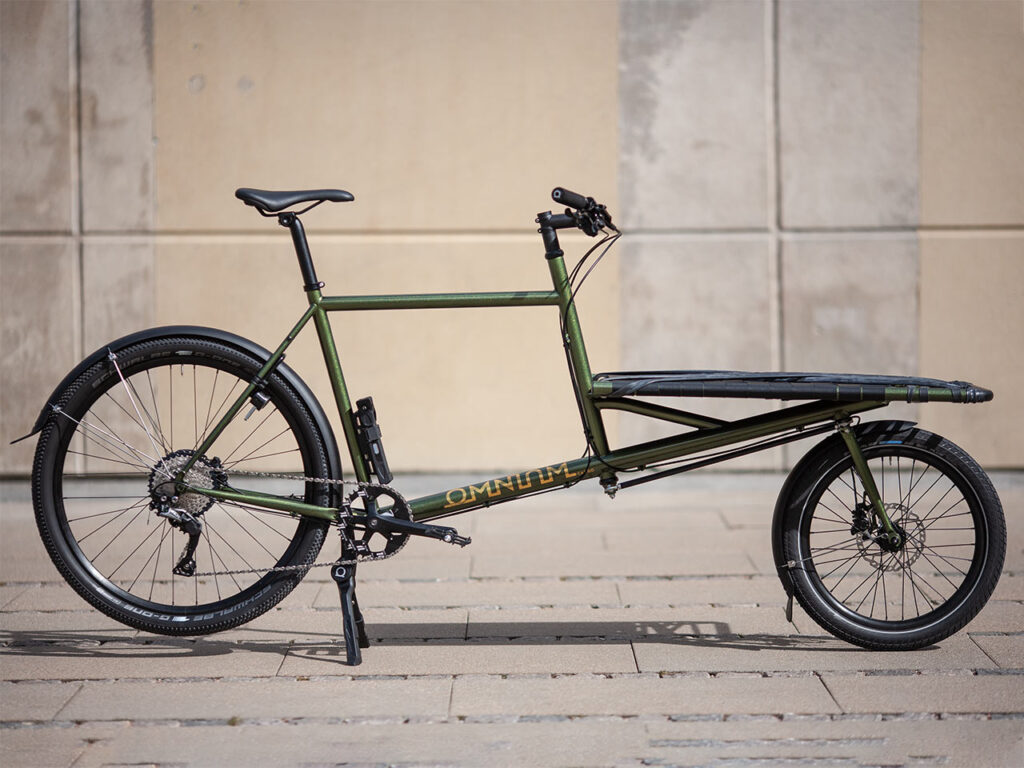

CARGO

CARGO

Frame Specifications Cargo Gen 1 „OG“ Cargo Gen 2 „OG“ Cargo Gen 3 „OG“ Cargo Gen 4 „Classic“ Cargo WiFi Gen 1 „Flat Mount“ Cargo WiFi Cargo Classic Cargo V3
Tyre Cleareance Rear 40mm 40mm 40mm 40mm 55mm 55mm 40mm 55mm
Tyre Clearence Front 50mm(406) | 37mm(451) 50mm(406) | 37mm(451) 50mm(406) | 37mm(451) 50mm(406) | 37mm(451) 55mm (406) 55mm (406) 50mm(406) | 37mm(451) 55mm (406)
Seat Tube Diameter 27mm 27,2mm 27,2mm 31,6mm 31,6mm 31,6mm 31,6mm 31,6mm
Seat Post Clamp Size 28,9mm 28,9mm 28,9mm 34mm 34mm 34mm 34mm 34mm
Brake Mount Rear IS IS IS IS FM IS IS IS
Brake Mount Front IS IS IS IS IS IS IS IS
Headset Front 1 1/8″ Threaded Non-Integreated With Locking Cap 1 1/8″ Threaded Non-Integreated With Locking Cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap
Headset Rear 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead
Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork
Fork Steerer Length 83mm 83mm 83mm 66mm 66mm 66mm 66mm 66mm
Derailleur Hanger / Inserts N/A N/A N/A N/A WiFi Gen 1 Hanger Modular WiFi Drop Out Inserts N/A V3 Inserts
Mudguard Width 40mm 40mm 40mm 40mm 60mm 60mm 40mm 60mm
Axles Rear Horizontal QR O.L.D. 135mm Horizontal QR O.L.D. 135mm Horizontal QR O.L.D. 135mm Vertical QR O.L.D. 135mm 12×142mm 12×142mm Vertical QR O.L.D. 135mm 12×142mm
Axles Front QR O.L.D. 100mm QR O.L.D. 100mm QR O.L.D. 100mm QR O.L.D. 100mm 15×100mm 15×100mm 15×100mm 15×100mm
Original Wheel Size 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/406 Front & 29″/700c Rear 20″/406 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/406 Front & 29″/700c Rear
Compatible Rear Wheel Size 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c
Compatible Front Wheel Size 20″/451 & 20″/406 20″/451 & 20″/406 20″/451 & 20″/406 20″/451 & 20″/406 20″/406 20″/406 20″/451 & 20″/406 20″/406
Belt Split No No No No No No No Yes
Bottom Bracket Shell 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA
Rack Bolt Size M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm
Available Sizes Medium Medium Medium XS-XL XS-XL XS-XL Medium XS-XL

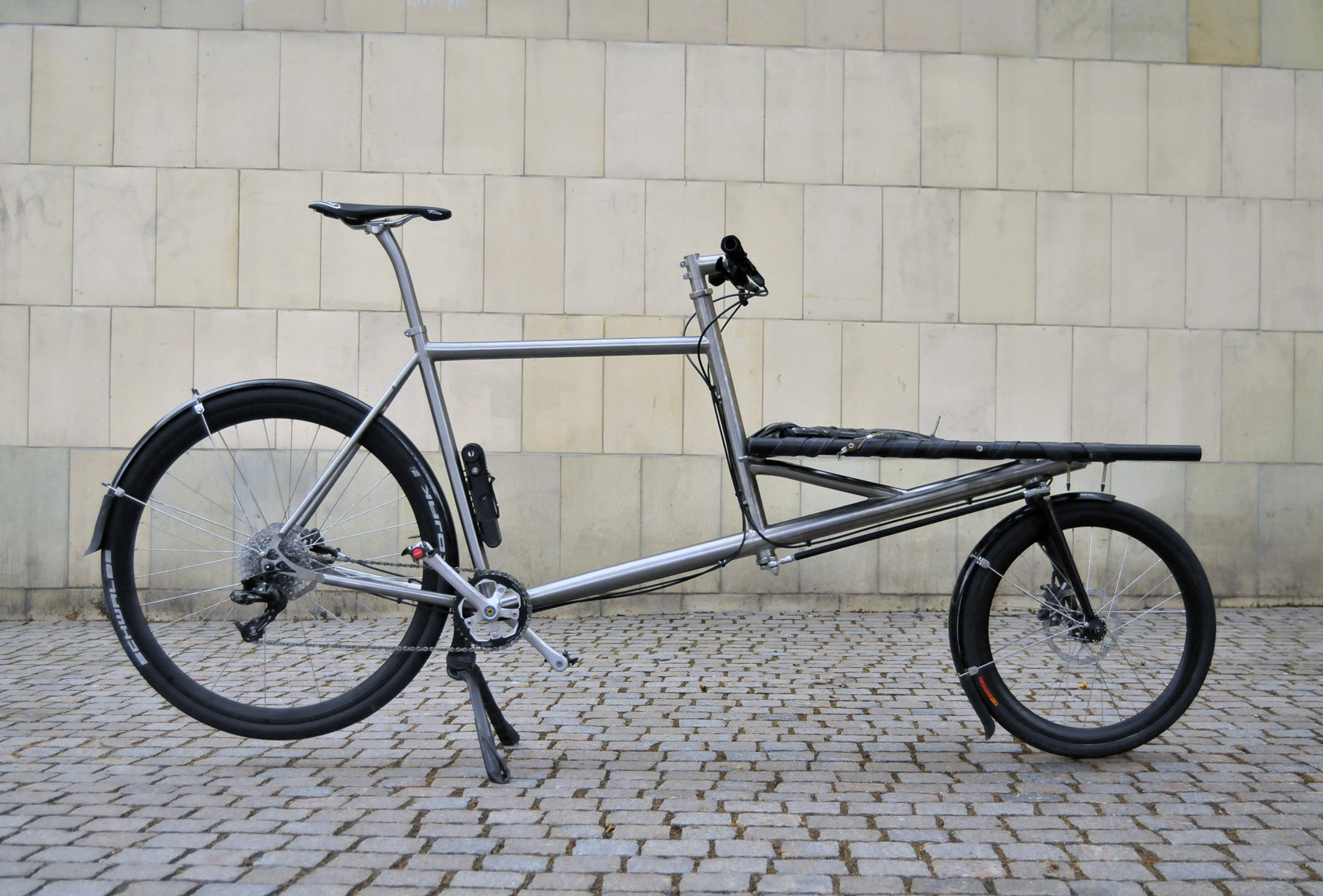

TITANIUM CARGO

Frame Specifications Titanium Cargo Gen 1 „Classic“ Titanium Cargo Gen 2 „Classic TA“ Titanium Cargo WiFi Gen 1 Titanium Cargo V3
Tyre Cleareance Rear 38mm 38mm 55mm 55mm
Tyre Clearence Front 55mm (406) | 37mm (451) 55mm (406) | 37mm (451) 55mm (406) 55mm (406)
Seat Tube Diameter 27,2mm 27,2mm 31,6mm 31,6mm
Seat Post Clamp Size 28,9mm 34,9mm 34,9mm 34,9mm
Brake Mount Rear IS IS FM IS
Brake Mount Front IS IS IS IS
Headset Front 1 1/8″ Threaded Non-Integreated With Locking Cap 1 1/8″ Threaded Non-Integreated With Locking Cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap
Headset Rear 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead
Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork
Fork Steerer Length
Derailleur Hanger / Inserts N/A Ti Derailleur Hanger 12mm Ti Derailleur Hanger 12mm V3 Inserts
Mudguard Width 50mm 50mm 60mm 60mm
Axles Rear Horizontal QR O.L.D. 135mm Vertical QR O.L.D. 135mm 12×142mm 12×142mm
Axles Front QR O.L.D. 100mm QR O.L.D. 100mm 15×100mm 15×100mm
Original Wheel Size 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/406 Front & 29″/700c Rear 20″/406 Front & 29″/700c Rear
Compatible Rear Wheel Size 29″/700c 29″/700c 29″/700c 29″/700c
Compatible Front Wheel Size 20″/451 & 20″/406 20″/451 & 20″/406 20″/406 20″/406
Belt Split No No No Yes
Bottom Bracket Shell 68mm BSA 68mm BSA 68mm BSA 68mm BSA
Rack Bolt Size M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm
Available Sizes Medium Medium XS-XL XS-XL

Titanium Cargo Gen 1
Side view of an Omnium Cargo WiFi bike
Cargo WiFi
Cargo Classic

Mini-Max

MINI-MAX

Frame Specifications Mini-Max Gen 1 „OG“ Mini-Max Gen 2 „OG“ Mini-Max Gen 3 „OG“ Mini-Max Gen 4 „Classic“ Mini-Max WiFi Mini-Max Classic Mini-Max V3
Tyre Cleareance Rear 38mm 38mm 38mm 38mm 55mm 38mm 55mm
Tyre Clearence Front 55mm (406) | 37mm (451) 55mm (406) | 37mm (451) 55mm (406) | 37mm (451) 55mm (406) | 37mm (451) 55mm (406) 55mm (406) | 37mm (451) 55mm (406)
Seat Tube Diameter 27,2mm 31,6mm 31,6mm 31,6mm 31,6mm 31,6mm 31,6mm
Seat Post Clamp Size 28,9mm 34mm 34mm 34mm 34mm 34mm 34mm
Brake Mount Rear IS IS IS IS IS IS IS
Brake Mount Front IS IS IS IS IS IS IS
Headset Front 1 1/8″ Threaded Non-Integreated With Locking Cap 1 1/8″ Threaded Non-Integreated With Locking Cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap
Headset Rear 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead
Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork
Fork Steerer Length 83mm 83mm 83mm 66mm 66mm 66mm 66mm
Derailleur Hanger / Inserts N/A N/A N/A N/A Modular WiFi Drop Out Inserts N/A V3 Inserts
Mudguard Width 50mm 50mm 50mm 50mm 60mm 50mm 60mm
Axles Rear Horizontal QR O.L.D. 135mm Horizontal QR O.L.D. 135mm Horizontal QR O.L.D. 135mm Vertical QR O.L.D. 135mm 12×142mm Vertical QR O.L.D. 135mm 12×142mm
Axles Front QR O.L.D. 100mm QR O.L.D. 100mm QR O.L.D. 100mm QR O.L.D. 100mm 15×100mm 15×100mm 15×100mm
Original Wheel Size 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/406 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/406 Front & 29″/700c Rear
Compatible Rear Wheel Size 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c
Compatible Front Wheel Size 20″/451 & 20″/406 20″/451 & 20″/406 20″/451 & 20″/406 20″/451 & 20″/406 20″/406 20″/451 & 20″/406 20″/406
Belt Split No No No No Yes
Bottom Bracket Shell 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA
Rack Bolt Size M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm
Available Sizes Medium Medium Medium XS-XL XS-XL Medium XS-XL

TITANIUM MINI-MAX

Frame Specifications Titanium Mini-Max Gen 1 „Classic“ Titanium Mini-Max Gen 2 „Classic TA“ Titanium Mini-Max WiFi Gen 1 Titanium Mini-Max V3
Tyre Cleareance Rear 38mm 38mm 55mm 55mm
Tyre Clearence Front 55mm (406) | 37mm (451) 55mm (406) | 37mm (451) 55mm (406) 55mm (406)
Seat Tube Diameter 27,2mm 27,2mm 31,6mm 31,6mm
Seat Post Clamp Size 28,9mm 34,9mm 34,9mm 34,9mm
Brake Mount Rear IS IS FM IS
Brake Mount Front IS IS IS IS
Headset Front 1 1/8″ Threaded Non-Integreated With Locking Cap 1 1/8″ Threaded Non-Integreated With Locking Cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap
Headset Rear 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead
Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork
Fork Steerer Length
Derailleur Hanger / Inserts N/A Ti Derailleur Hanger 12mm Ti Derailleur Hanger 12mm V3 Inserts
Mudguard Width 50mm 50mm 60mm 60mm
Axles Rear Horizontal QR O.L.D. 135mm Vertical QR O.L.D. 135mm 12×142mm 12×142mm
Axles Front QR O.L.D. 100mm QR O.L.D. 100mm 15×100mm 15×100mm
Original Wheel Size 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/406 Front & 29″/700c Rear 20″/406 Front & 29″/700c Rear
Compatible Rear Wheel Size 29″/700c 29″/700c 29″/700c 29″/700c
Compatible Front Wheel Size 20″/451 & 20″/406 20″/451 & 20″/406 20″/406 20″/406
Belt Split No No No Yes
Bottom Bracket Shell 68mm BSA 68mm BSA 68mm BSA 68mm BSA
Rack Bolt Size M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm
Available Sizes Medium Medium XS-XL XS-XL

Titanium Mini-Max Gen 2 „Classic TA“
Mini-Max Gen 3 „OG“
Mini-Max Gen 4 „Classic“

MINI

MINI

Frame Specifications Mini V3 Mini Classic Mini Classic Variant Mini WiFi Mini Gen 3 „Classic“ Mini Gen 2 „OG“ Mini Gen 1 „OG“
Tyre Cleareance Rear With Out Mudguards 55mm 40mm 40mm 55mm 40mm 40mm 40mm
Tyre Clearence Front With Out Mudguards 55mm 50mm(406) | 37mm(451) 50mm(406) | 37mm(451) 55mm 50mm(406) | 37mm(451) 50mm(406) | 37mm(451) 50mm(406) | 37mm(451)
Seat Tube Diameter 31,6mm 31,6mm 31,6mm 31,6mm 31,6mm 27,2mm 27,2mm
Seat Post Clamp Size 34mm 34mm 34mm 34mm 34mm 28,9mm 28,9mm
Brake Mount Rear IS IS IS IS IS IS IS
Brake Mount Front IS IS IS IS IS IS IS
Headset Rear 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead
OG Fork Mini Fork TA Mini Fork QR Mini Fork QR Mini Fork TA Mini Fork QR Mini Fork QR Mini Fork QR
Derailleur Hanger / Inserts V3 Inserts N/A N/A WiFi Modular Dropouts Insert N/A N/A N/A
Mudguard Width 60mm 40mm 40mm 60mm 40mm 40mm 40mm
Axles Rear 12×142, 172mm long, 19mm thread length, 1.75mm pitch  Vertical QR O.L.D. 135mm Vertical QR O.L.D. 135mm 12x142mm TA Horizontal QR O.L.D. 135mm Horizontal QR O.L.D. 135mm Horizontal QR O.L.D. 135mm
Axles Front 15×100, 125mm long, 17mm thread length, 1.5mm pitch  QR O.L.D. 100mm QR O.L.D. 100mm 15x100mm TA QR O.L.D. 100mm QR O.L.D. 100mm QR O.L.D. 100mm
Original Wheel Size 20″/406 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/406 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear
Compatible Rear Wheel Size 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c
Compatible Front Wheel Size 20″/406 20″/451 & 20″/406  20″/451 & 20″/406  20″/406 20″/451 & 20″/406  20″/451 & 20″/406  20″/451 & 20″/406
Belt Split
Bottom Bracket Shell 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA
Rack Bolt Size 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA

TITANIUM MINI

Frame material Double-Butted Chromoly Steel Frame
5 Sizes XS, S, M, L, XL
Gears For 1x rear derailleur gear system
Seat post diameter 31.6 mm
Seat post clamp size 34.0 mm
Rear wheel TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
Front wheel 406, 15 x 100 mm spacing, disc only
Tyre clearance, front 55mm with mudguards
Tyre clearance, rear 55mm with mudguards
Thru Axle Rear 12×142, 172mm long, 19mm thread length, 1.75mm pitch
Thru Axle Front 15×100, 125mm long, 17mm thread length, 1.5mm pitch
Bottom bracket BSA 68mm
Headset 1 1/8″ Ahead
Q-Factor/Stance 145mm
Rack dimensions 40cm x 46cm, made of Aluminum
Mini Rack weight 700g +/-
Rack bolt size M8 x 15mm
Weight Complete Medium bike weighs 18kg
Recommended maximum loading weight including rider 125kg

The rack for the V3.1 Mini does not have the same mounting interface and will not be able to attach to the Mini V3 or other older Minis.

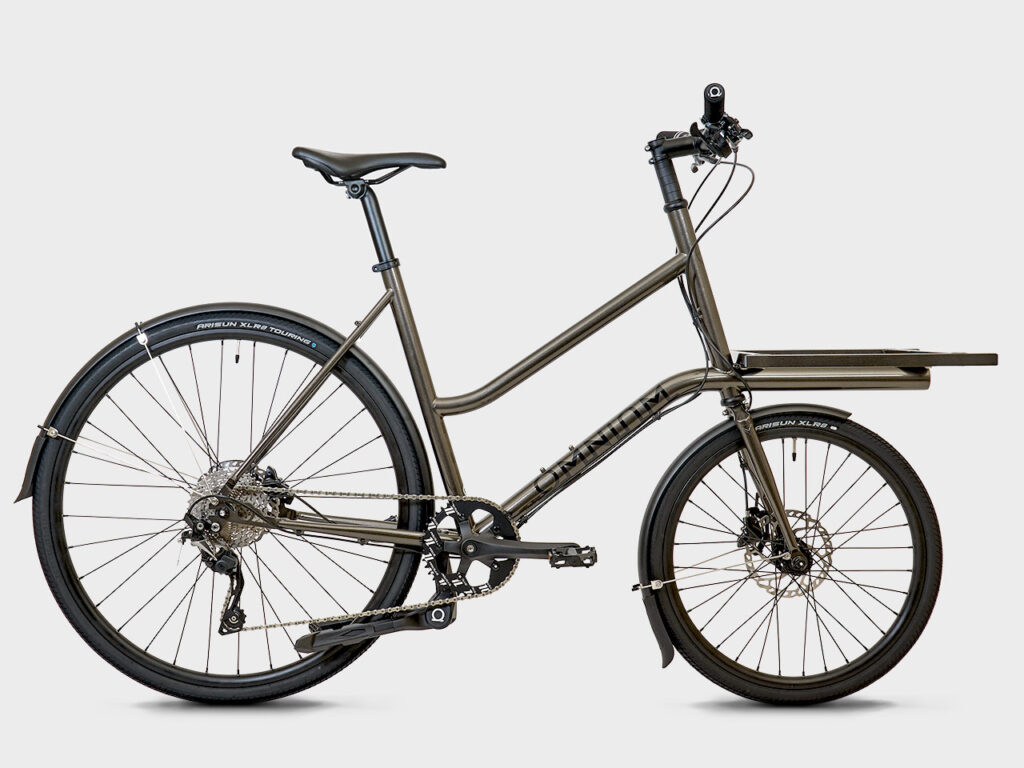

Mini Variant Classic
Mini Gen 2 „OG“
Mini WiFi

CXC

CXC

Frame Specifications CXC V3 CXC V2.1 CXC V2 CXC „Classic“
Tyre Cleareance Rear With Out Mudguards 45mm 45mm 45mm
Tyre Clearence Front With Out Mudguards 55mm 45mm 45mm
Seat Tube Diameter 27,2mm 27,2mm 27,2mm
Seat Post Clamp Size Binder Nut Binder Nut Binder Nut Binder Nut
Brake Mount Rear IS IS IS IS
Brake Mount Front IS IS IS IS
Headset 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead
Fork CXC Segmented Fork CXC Segmented Classic Fork TA CXC Segmented Classic Fork QR CXC Classic Fork
Derailleur Hanger / Inserts V3 Insert Thru Axle Sliding Drop Outs QR Sliding Drop Outs N/A
Mudguard Width 50mm 50mm 50mm 45mm
Axles Rear 12x142mm 12x142mm 10x135mm QR Horizontal QR O.L.D. 135mm
Axles Front 12x100mm 15x100mm 10x100mm QR QR O.L.D. 100mm
Compatible Wheel Size 700c 700c 700c 700c
Belt Split Yes Yes Yes No
Bottom Bracket Shell 68mm BSA 68mm BSA 68mm BSA 68mm BSA

TITANIUM CXC

Frame Specifications Cargo Gen 1 „OG“ Cargo Gen 2 „OG“ Cargo Gen 3 „OG“ Cargo Gen 4 „Classic“ Cargo WiFi Gen 1 „Flat Mount“ Cargo WiFi Cargo Classic Cargo V3
Tyre Cleareance Rear 40mm 40mm 40mm 40mm 55mm 55mm 40mm 55mm
Tyre Clearence Front 50mm(406) | 37mm(451) 50mm(406) | 37mm(451) 50mm(406) | 37mm(451) 50mm(406) | 37mm(451) 55mm (406) 55mm (406) 50mm(406) | 37mm(451) 55mm (406)
Seat Tube Diameter 27mm 27,2mm 27,2mm 31,6mm 31,6mm 31,6mm 31,6mm 31,6mm
Seat Post Clamp Size 28,9mm 28,9mm 28,9mm 34mm 34mm 34mm 34mm 34mm
Brake Mount Rear IS IS IS IS FM IS IS IS
Brake Mount Front IS IS IS IS IS IS IS IS
Headset Front 1 1/8″ Threaded Non-Integreated With Locking Cap 1 1/8″ Threaded Non-Integreated With Locking Cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap 1 1/8″ Threaded Integrated with locking cap
Headset Rear 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead 1 1/8″ Ahead
Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork Cargo Fork
Fork Steerer Length 83mm 83mm 83mm 66mm 66mm 66mm 66mm 66mm
Derailleur Hanger / Inserts N/A N/A N/A N/A WiFi Gen 1 Hanger Modular WiFi Drop Out Inserts N/A V3 Inserts
Mudguard Width 40mm 40mm 40mm 40mm 60mm 60mm 40mm 60mm
Axles Rear Horizontal QR O.L.D. 135mm Horizontal QR O.L.D. 135mm Horizontal QR O.L.D. 135mm Vertical QR O.L.D. 135mm 12×142mm 12×142mm Vertical QR O.L.D. 135mm 12×142mm
Axles Front QR O.L.D. 100mm QR O.L.D. 100mm QR O.L.D. 100mm QR O.L.D. 100mm 15×100mm 15×100mm 15×100mm 15×100mm
Original Wheel Size 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/406 Front & 29″/700c Rear 20″/406 Front & 29″/700c Rear 20″/451 Front & 29″/700c Rear 20″/406 Front & 29″/700c Rear
Compatible Rear Wheel Size 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c 29″/700c
Compatible Front Wheel Size 20″/451 & 20″/406 20″/451 & 20″/406 20″/451 & 20″/406 20″/451 & 20″/406 20″/406 20″/406 20″/451 & 20″/406 20″/406
Belt Split No No No No No No No Yes
Bottom Bracket Shell 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA 68mm BSA
Rack Bolt Size M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm M15 x 15mm
Available Sizes Medium Medium Medium XS-XL XS-XL XS-XL Medium XS-XL

CXC Classic
CXC V2.0
CXC Classic

OTHER FRAMES

NEW SKOOL, OLD SKOOL AND OMNIUM ONE

Frame Specifications Old Skool New Skool Omnium One
Head Set 1″ 1 1/8″ Integrated 1 1/8″
Tyre Clearance Rear 28mm 28mm 23mm
Tyre Clearance Front 28mm 28mm 23mm
Seat Tube Diameter 27,2mm 27,2mm 27,2mm
Seat Post Clamp Diameter Binder Binder 29,8mm
Brakes Mounts Caliper Brakes Caliper Brakes Caliper Brakes
Derailleur Hanger / Inserts N/A N/A N/A
Axles Rear 100mm O.L.D. 100mm O.L.D. 100mm O.L.D.
Axles Front 120mm O.L.D. 120mm O.L.D. 120mm O.L.D.
Compatible Wheel Size 700c 700c 700c
Bottom Bracket Shell 68mm BSA 68mm BSA 68mm BSA
Frame Material Cromoly Cromoly Aluminium

BIG BAD JUMBO

Frame material Double-Butted Chromoly Steel Frame
GEARS For 1x rear derailleur gear system
SEAT POST DIAMETER 31.6 mm
SEAT POST CLAMP SIZE 34.9 mm
REAR HUB 12 x 148mm Boost spacing
Brake Mount Rear Depends On Insert
Derailleur Hanger / Inserts V3 Inserts
Compatible Wheel  29″ (27,5″ for XS & S)
Front Wheel N/A – As no fork is inlcuded
Tyre clearance, front N/A – As no fork is inlcuded
TYRE CLEARANCE, REAR 3,0″
BOTTOM BRACKET BSA 73mm
HEADSET ZS44 | EC44
Recommended maximum loading weight including rider 125 kg

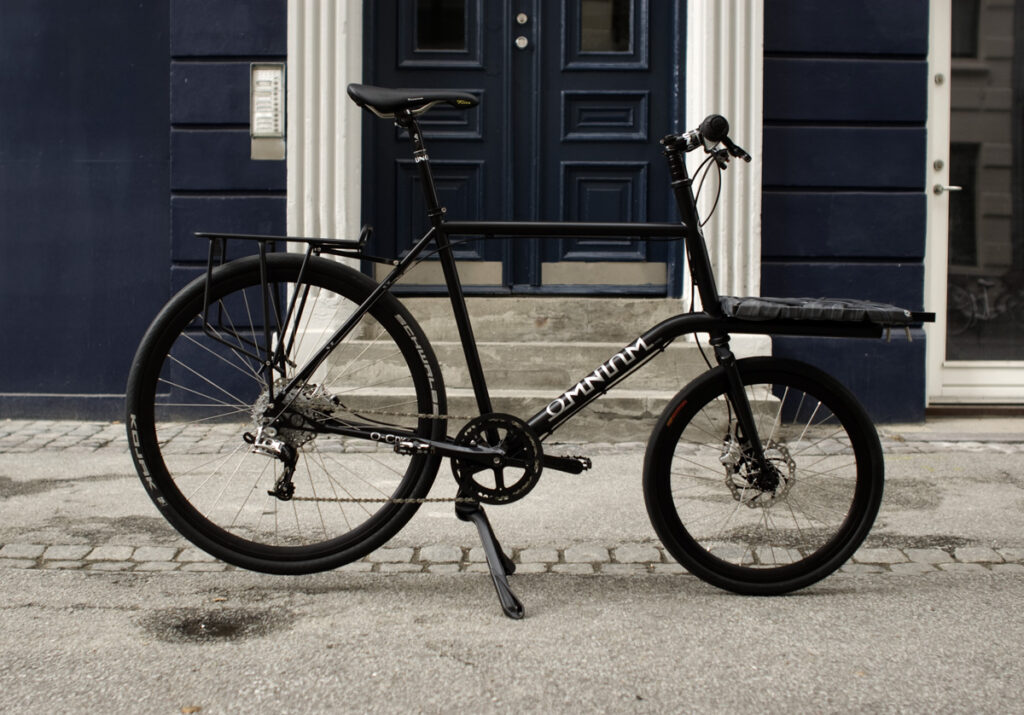

Mini V3

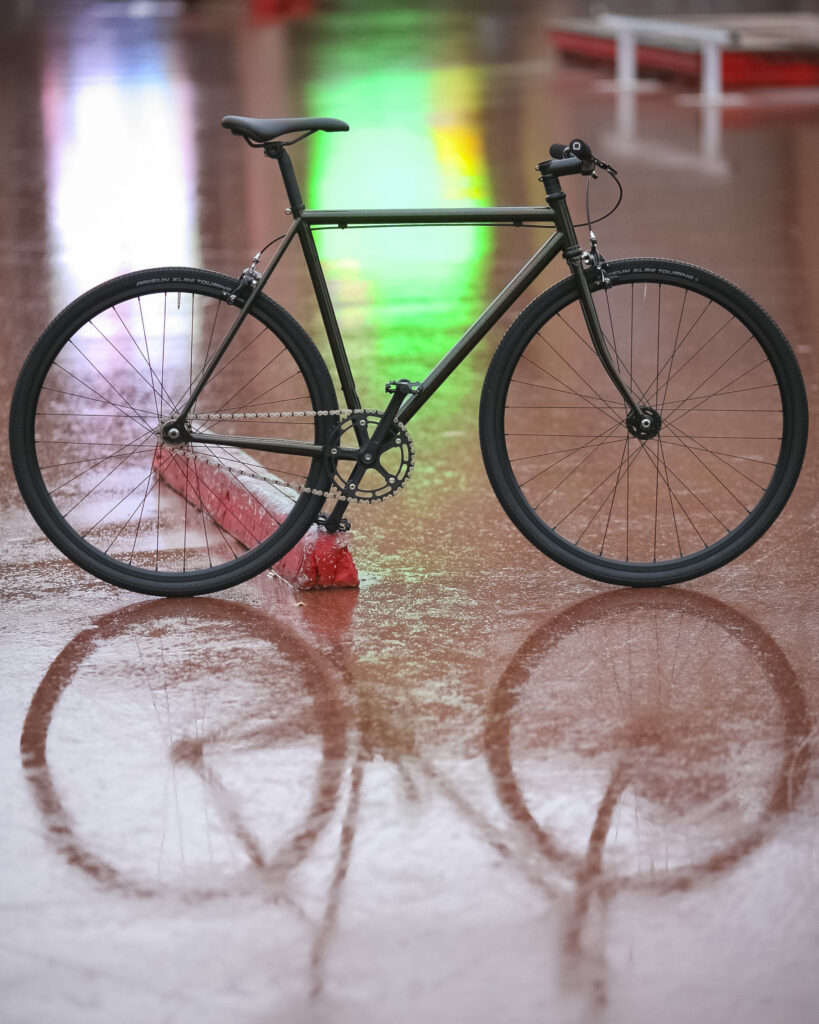

New Skool
Mini V3

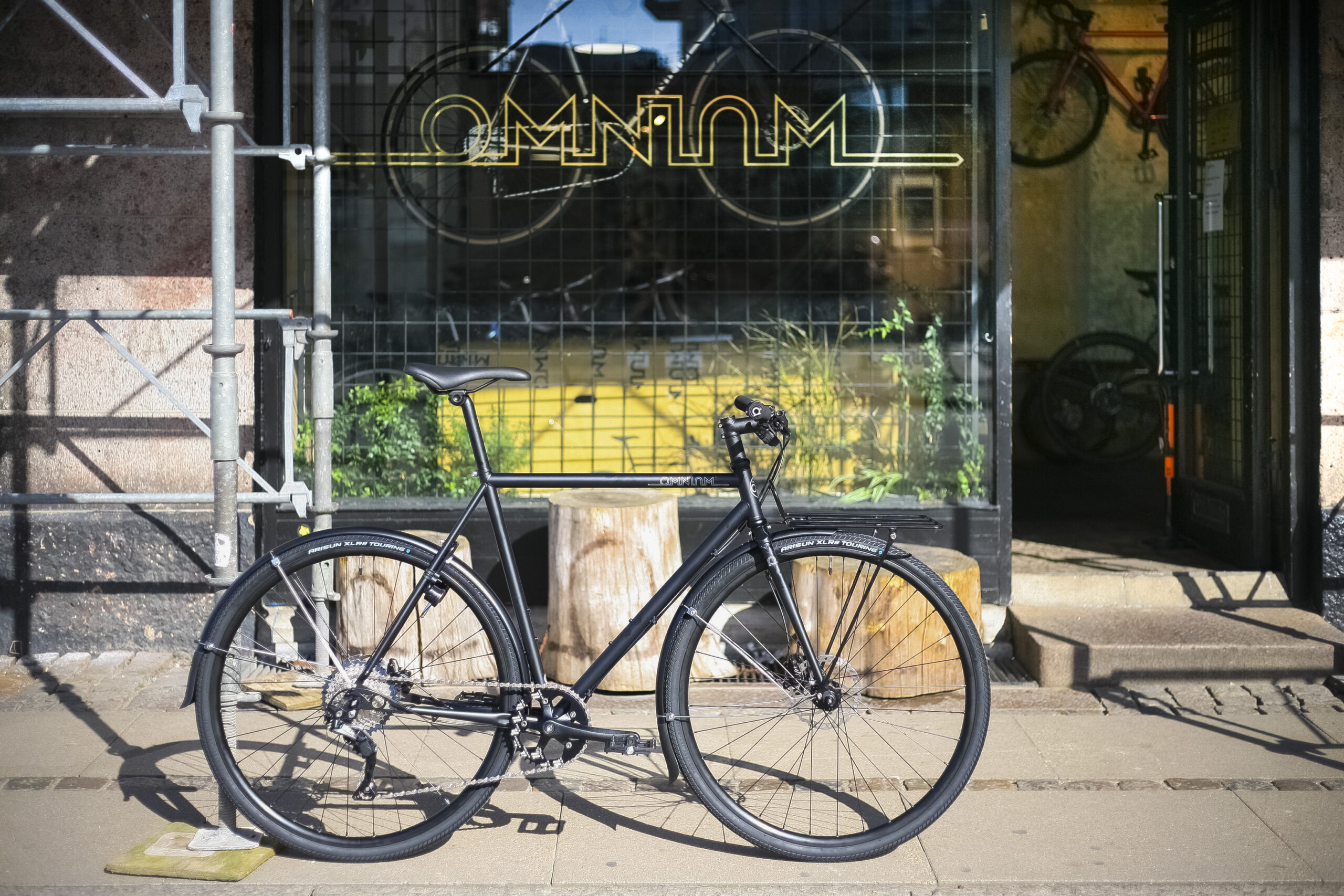

Day Ripper

MORE THAN
YOUR AVERAGE
COMMUTER

Embrace the spontaneity of urban adventure with the Day Ripper.

perfect for weaving through bustling streets and darting down gravel tracks on your way home.

BUY YOUR DAY RIPPER HERE

COMPONENT LISTS

Brakes Sram Level TL, IS mount, 160mm rotor front and rear
Gears Sram Apex 11 SPD,
Stem 3D-forged alloy, 31.8mm, 7-degree rise
Handlebar TBU
Seatpost Alloy, 25mm offset, 2-bolt clamp, 27.2mm
Grips Foam Grips
Crankset Forged aluminum arms, Narrow-wide aluminum chainring 42t, chainguard
Bottom Bracket Square Taper 68mm BSA
Headset Sealed bearings Alloy cups
Saddle Omnium Comfort Saddle
Tyres Arisun XLR 700x38mm
Wheels TBU
Hubs Sealed bearings, 32 Holes
Mudguards TBU
Kickstand TBU
Pedals TBU

GEOMETRY

Day Ripper (700x38c Tires) (Unit: Milimeters) Step Through S/M L/XL
STL – seat tube length (c-t) 480 510 570
TTL – top tube length (c-c / actual) 573,2 561,7 594,2
Stack 579,1 578,1 616,1
Reach 385 379,5 400
SO – standover height 716 788,5 838,5
BBD – bottom bracket drop 75 75 75
STA – seat tube angle 72,5° 72,5° 72,5°
HTA – head tube angle 71,5° 71,5° 71,5°
HTL – head tube length 160 140 180
WB – wheelbase 1053,8 1042,5 1042,5
R – rake 57,5 57,5 57,5
T – trail 56 56 56
CSL – chainstay length 440 440 440
Weight (Complete Bike) 14,19 kg 14,38 kg 14,48 kg

FRAME SPECIFICATIONS

3 Sizes S/M, L/XL & Step Through
Material Double Butted Cromoly Steel
Gears For 1x rear derailleur system
Seatpost Diameter 27,2mm
Rear Wheel QR 600, 10 x 135mm Spacing, disc only
Front Wheel QR 622, 10 x 100mm Spacing, disc only
Tyre Clearence, Front: 38mm
Tyre Clearence, Rear: 38mm
Dropout Rear 9x135mm QR
Dropout Front 9x100mm QR
Headset 1 1/8″
Bottom Bracket 68mm BSA
Brake Mounts: IS brake mount front and rear, for minimum 160mm
Q-Factor TBU
Complete Bike Weight TBU
Recommeded maximum loading weight, Inc rider: 100 kg

#tryOMNIUM

INSTAGRAM #tryOMNIUM FEED

This error message is only visible to WordPress admins

Error: No connected account.

Please go to the Instagram Feed settings page to connect an account.

Terms & Conditions

  • In order to win you have to follow the three first steps mentioned above.
  • Worldwide participation is possible. If you don’t have any local dealer, encourage your local bike shop to reach out.
  • Shipping and delivery times may vary depending on stock and the geographical location of the winner.
  • The competition runs from September 1. Until September 30. 11:59 PM Denmark time (GMT+2).
  • The winner will be drawn at random, and announced on Tuesday October 5th.
  • Shipping and delivery times may vary depending on stock and the geographical location of the winner.
  • If you win, and you’ve bought an OMNIUM within the competition period, you will have either the bike or the maximum amount winnable in this competition reimbursed through the place you bought your bike.
  • You can win either a complete steel bike of your choice (non-electric) or 3164€ towards an E-Bike or Complete Titanium bike (not viable for frame kits).
  • You can only enter the competition once

Mein Account

Anmelden

Registrieren

Ein Link zum Erstellen eines neuen Passwort wird an deine E-Mail-Adresse gesendet.

Sign up to our newsletter.

Your personal data will be used to support your experience throughout this website, to manage access to your account, and for other purposes described in our Datenschutzerklärung.

Guides

Here you can find manuals and instruction videos for our bikes or components. This page will be irregularly updated.
For requests and questions write to: info@omniumcargo.com

Cargo assembly guideS

Mini-max assembly guideS

Mini assembly guideS

SUPERNOVA E-BIKE LIGHT INSTALLATION GUIDE

CARBOn rack INSTALLATION GUIDE

CHILD SEAT RACK INSTALLATION GUIDE

BABY CARRIER MOUNT INSTALLATION GUIDE

TILTING RACK BRACKET INSTALLATION GUIDE

Cockpit
adjustment guide

Webbing
mounting guide

How to install
your belt drive wheel
