CXC
The OMNIUM CXC is a quick, agile and versatile bike with all sorts of possibilities. This bike can do pretty much anything you need it to. Gravel, cyclocross, world tour, alleycat or commute – The CXC will work for you.
The V3 features an adjustable rocker dropout letting you run singlepseed, internal gears, or a derailleur. The triple butted main triangle has varying tube thicknesses in all the right places in order to save weight, as well as an ED coating to hinder rust inside the tubes. The new segmented fork prevents fork judder under heavy braking, and lets you bolt cages to the fork legs.
The CXC is available in two versions: the trusted Cro-Mo 4130 version in a variety of different colours with an optional carbon fork upgrade, and the brushed Titanium version with a tapered carbon fork as standard. Run full mudguards and up to 45mm tires, racks, bags and go camping, or strip it down and mash out some kilometers of mixed terrain in turbo mode. There is nothing more versatile.
We offer complete bikes, fully assembled and ready to ride from our dealers – or order from our webshop and have your bike delivered WORLDWIDE with only minor assembly tasks left. We also offer frame-sets too so you can build your dream OMNIUM.
ALL
TYPES

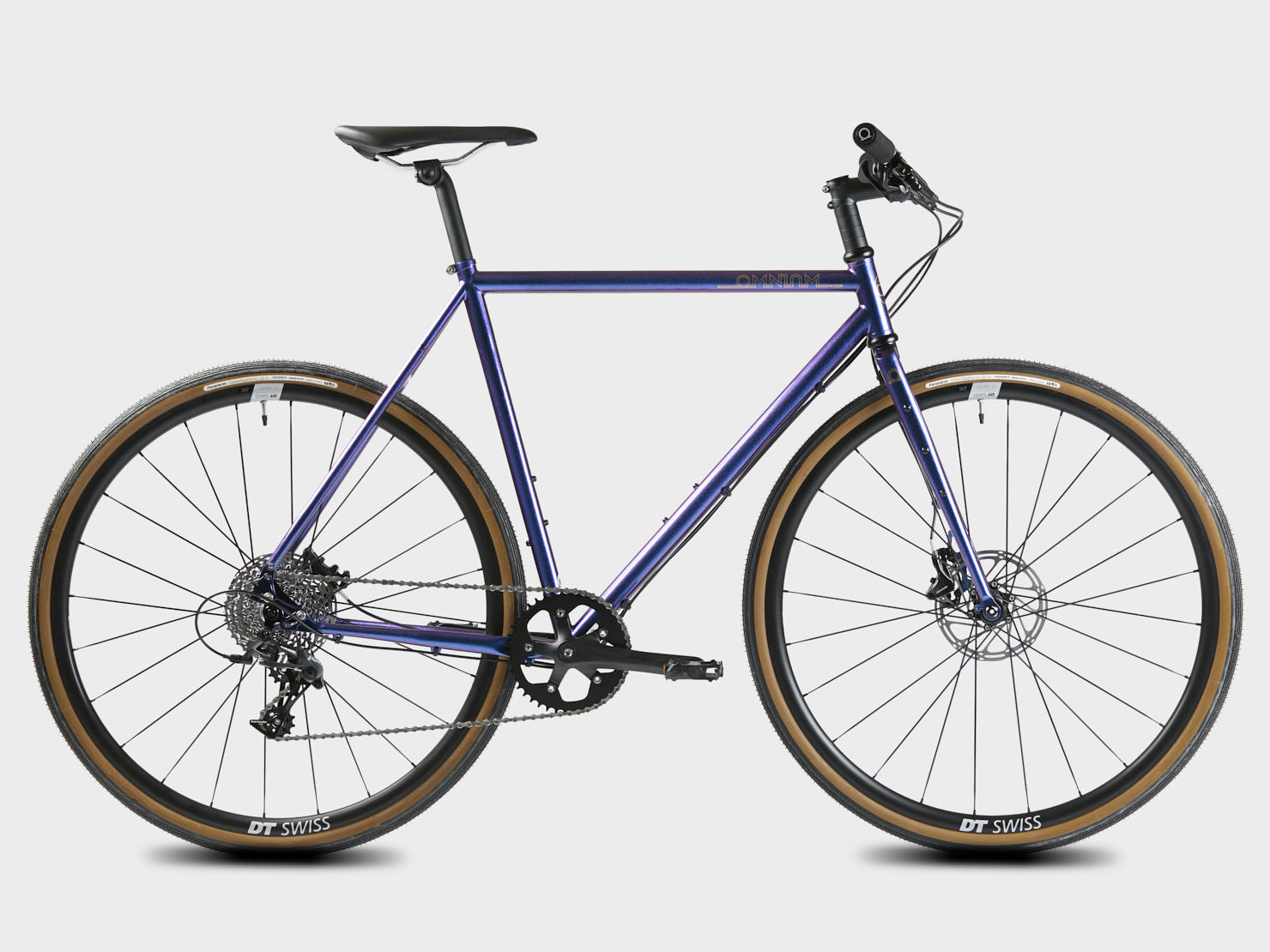

CXC Steel
The OMNIUM CXC is our tried and tested do it all bike. Elegant steel tubing, comfortable ride characteristics, with agility and versatility out of this world.

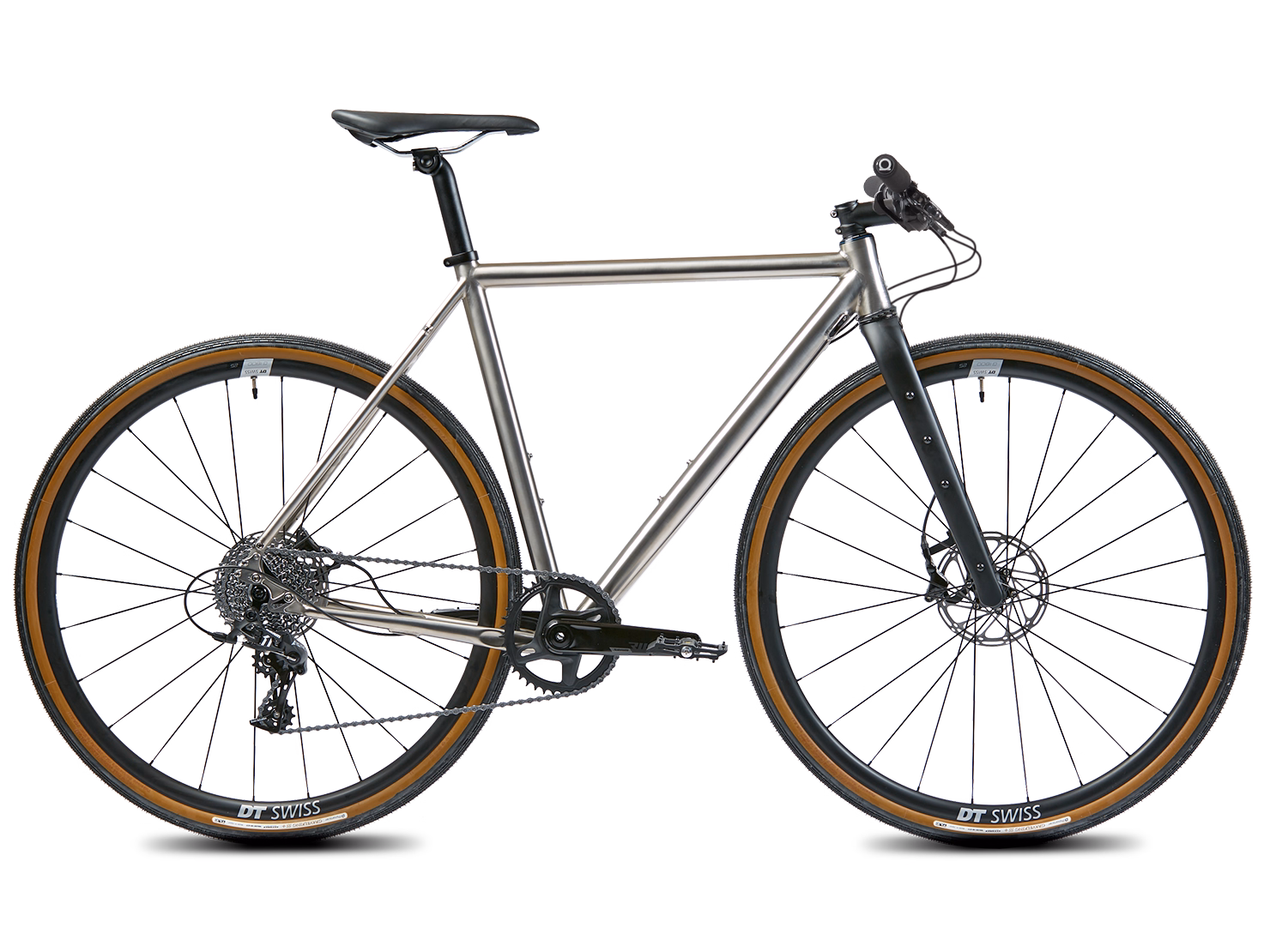

CXC Titanium
The OMNIUM CXC Titanium is the premium version of our trusted CXC bike, improving it even further with a super-light titanium frame and carbon fork. All parts are carefully selected and designed for a perfect cycling experience.
Geometry
X-Small (51) | Small (53) | Medium (56) | Large (59) | X-Large (62) | XXL (64) | |
Seat tube c-t | 510mm | 530mm | 560mm | 590mm | 620mm | 640mm |
Effective top tube | 520mm | 535mm | 555mm | 576mm | 595mm | 610mm |
Head tube angle | 73.5˚ | 74˚ | 74.4˚ | 74.9˚ | 74.9˚ | 74,9˚ |
Seat tube angle | 76˚ | 75.5˚ | 74.9˚ | 74.9˚ | 74.9˚ | 74˚ |
Stack | 491mm | 512mm | 542mm | 573mm | 602mm | 616mm |
Reach | 396mm | 402mm | 409mm | 422mm | 434mm | 434mm |
BB Drop | 58mm | 58mm | 58mm | 58mm | 58mm | 58mm |
Paint Choices
This list represents our past paint selection. It does not account for availability. Please check the respective product page for that. For incoming, new colors please relate to our future stock page.
COMPONENT LISTS
Brakes | Sram Level TL, IS mount, 160mm rotor front and rear |
Gears | Sram Apex 11 SPD, Sram Force cassette 11-36, Sram PC-1130 11s chain |
Stem | 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black |
Handlebar | 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black |
Seatpost | 27.2mm forged alloy 6061 aluminium, T6, 15mm setback, matte black |
Grips | Omnium lock-on, black, foam |
Crankset | Driveline, 42t, CNC Narrow Wide Chainring |
Bottom Bracket | FSA, Square Taper, 68mm BSA |
Headset/s | VP Components, sealed bearings, 1-1/8″ |
Saddle | Velo, leather, Chro-mo |
Tyres | Depending on availability |
Wheels | Omnium Wheelset 622 (700c) |
Pedals | Cast metal platform, black |
Brakes | Sram Apex 1, IS mount, 160mm rotor front and rear |
Gears | Sram Apex 11 SPD, Sram Force cassette 11-36, Sram PC-1130 11s chain |
Stem | 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black |
Handlebar | Handlebar: 6061 aluminium, 440mm wide, 125mm drop, 70mm reach and 6 degrees of flare. |
Seatpost | 27.2mm forged alloy 6061 aluminium, T6, 15mm setback, matte black |
Handlebar Tape | Omnium Earth Pattern |
Crankset | Driveline, 42t, CNC Narrow Wide Chainring |
Bottom Bracket | FSA, Square Taper, 68mm BSA |
Headset/s | VP Components, sealed bearings, 1-1/8″ |
Saddle | Velo, leather, Chro-mo |
Tyres | Depending on availability |
Wheels | Omnium Wheelset 622 (700c) |
Pedals | Cast metal platform, black |
Brakes | Sram Level TL, IS mount, 160mm rotor front and rear |
Singlespeed | Sram PC830 chain & 15t SS adaptor |
Stem | 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black |
Handlebar | 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black |
Seatpost | 27.2mm forged alloy 6061 aluminium, T6, 15mm setback, matte black |
Grips | Omnium lock-on, black, foam |
Crankset | Driveline, 42t, CNC Narrow Wide Chainring |
Bottom Bracket | FSA, Square Taper, 68mm BSA |
Headset/s | VP Components, sealed bearings, 1-1/8″ |
Saddle | Velo, leather, Chro-mo |
Tyres | Depending on availability |
Wheels | Omnium Wheelset 622 (700c) |
Pedals | Cast metal platform, black |
FRAME SPECIFICATIONS
6 Sizes | XS (51), S (53), M(56), L (59), XL (62), XXL (64) |
Material | Double-Butted Chromoly Steel Frame & Fork |
Gears | For 1x rear derailleur gear system |
Seat post diameter: | 27.2mm |
Rear Wheel: | TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only |
Front Wheel: | 622, 12 x 100mm spacing, disc only |
Tyre clearance, front: | 45mm clearance with mudguards |
Tyre clearance, rear: | 45mm clearance with mudguards (50mm chainstay clearence) |
Thru Axle Rear | 12×142, 172mm long, 19mm thread length, 1.75mm pitch |
Thru Axle Front | 12×100, 125mm, 17mm thread length, 1.5mm Pitch |
Headset: | 1 1/8″ Ahead |
Bottom Bracket: | 68mm BSA |
Brake Mounts: | IS brake mount front and rear, for minimum 160mm and max 180 rotors |
Q-Factor | 145mm |
Recommended maximum loading weight including rider: | 100 kg |
