DESCRIPTION
The Nano is a 2 in 1 solution for urban dwellers, the smaller footprint makes it easier to have a cargo bike in smaller, more cramped urban living quarters while the smaller wheels and shorter wheelbase encourages a fun & agile riding experience, without compromising the loading capabilities.
With a smaller footprint the Nano also makes it easier to integrate your bike with public transportation and encourage multimodal transportation making it easier to ditch your car for even bigger daily distances by bike.
The Nano is integrated with more standards from the Cargo & Mini-Max V3’s making more accessories available to the frame for instance the ability to add the Tilting Rack Bracket giving the option to make the footprint of the bike even smaller when parked.
DESIGN
Designed around two 20” wheels with a 2.15” tyres and shorter wheelbase than our other bikes, this gives us a snappier ride and a small footprint for the overall bike – the smaller wheels also get you up to speed faster which is great for the more start and stop nature of urban riding.

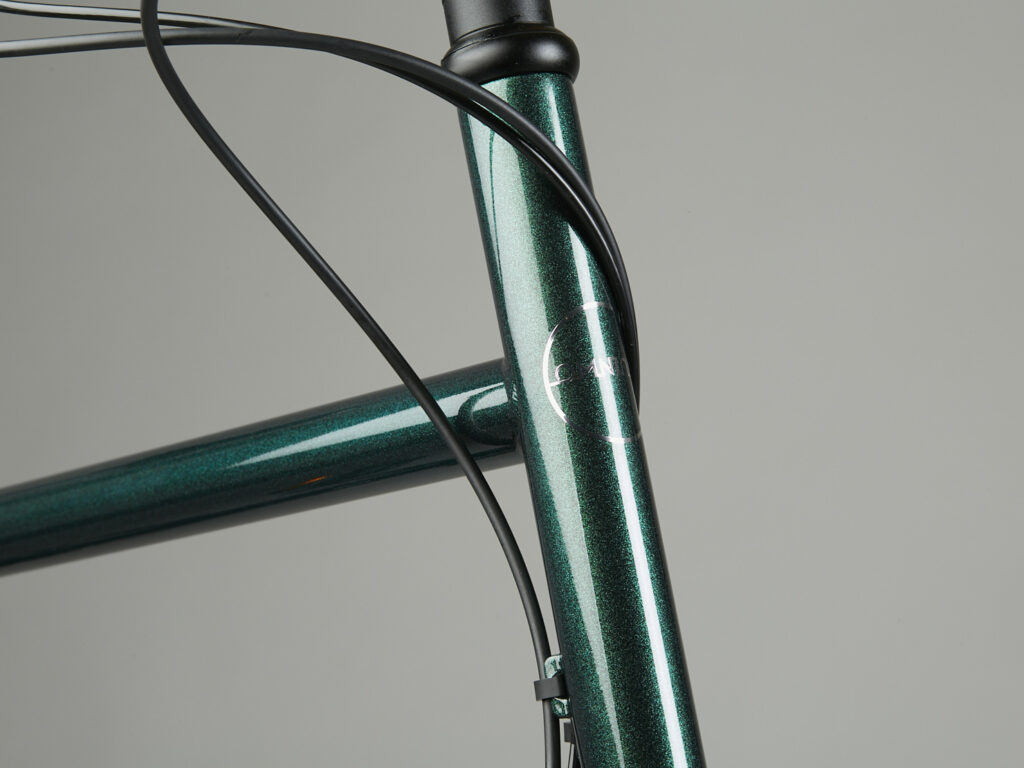

We have slopped the top tube to lower the stand over height and increase the number of people that can enjoy the bike. While only being available in one size, that lower sloped top tube makes it accessible to riders of almost any body proportion fitting riders from 160cm to 190cm and still being a great ride.
While being a small bike the Nano still retains the loading capabilities of our bigger bikes, with a max weight of 125kg you can pack the rack full with whatever you want and never need to worry about reaching its weight limit.
Like our other bikes we use IS brake mount which is optimal for flat bar bikes and gives the rotor adaptation for you brakes – we have also kept the 15x100mm thru axle on the fork – while the rear will depend on your choice of rocker dropouts.
DRIVETRAIN
COCKPIT & FINISHING KIT
When you order a complete bike, it comes ready to ride with our standard Omnium cockpit — a solid, well-balanced setup that delivers comfort and control right out of the box. But if you want to fine-tune your fit or match your riding style, you’ve got options. In the Bike Builder, you can choose your preferred handlebar, stem, saddle, and more to create a cockpit that suits your look and feel. Whether you’re all about long rides, city cruising, or hauling with style, you can dial it in so your bike feels exactly right for you.
| HANDLEBAR | Omnium Riserbar | Multiple Choice in Bike Builder |
| STEM | Omnium LW Stem | Multiple Choice in Bike Builder |
| GRIPS | Omnium Lock On Foam Grips | Multiple Choice in Bike Builder |
| HEADSET | Omnium Headset |
| SEATPOST | Omnium Forged Seatpost | Multiple Choice in Bike Builder |
| SADDLE | Omnium Standard Saddle | Multiple Choice in Bike Builder |
| PEDALS | Omnium Cargo Pedals | Multiple Choice in Bike Builder |
| COLUMN SPACERS | Omnium Spacer 15mm x4 |
GEARS AND BRAKES

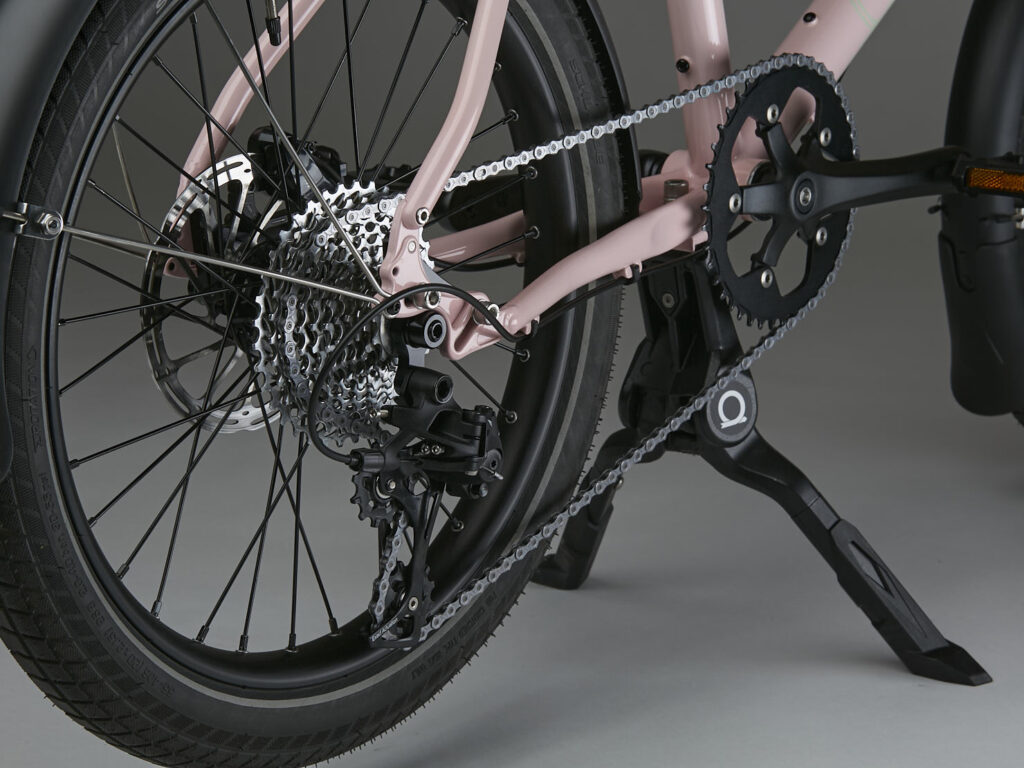

The Omnium Nano comes equipped with the SRAM Apex 11-speed groupset — a setup that delivers smooth, reliable shifting and solid performance whether you’re climbing, cruising, or carrying a load. We’ve paired the Apex derailleur with an 11–36 cassette and a 42t chainring, which, combined with the Nano’s 20” wheels, comes out to a lower effective gear range. It’s a proven combination that handles city rides and steep hills with ease, keeping the Nano responsive and ready for whatever your ride throws at it.
| Derailleur | Sram Apex 11 |
| Cassette | Sram Force 11-36 |
| Chain | KMC |
| Shifter | Sram Apex |
| Bottom Bracket | FSA 110mm Square Taper |
| Cranks | OMNIUM Narrow Wide Cranks |
| Brakes | Sram Level TL |
| Front Wheel | Omnium Nono Wheel: 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims |
| Rear Wheel | Omnium Nano Wheel: 12 x 142mm thru axle 406 (20”) rear, 38mm outer width rims |
| Tyres | Schwalbe Big Ben (55-406) |
| Complete Build Weight | 16,5kg |
WHEELS
Every complete bike comes with a Omnium wheelset — smooth, reliable, and ready for anything. But if you’re the kind of rider who’s always on the move, day or night, you can upgrade to the Dynamo wheelset accompanied with a Supernova light set. It keeps your lights powered as you ride, no charging or batteries needed. Whether you stick with the standard setup or go for the always-on convenience of Dynamo.
| Rear Wheel | Front Wheel | Dynamo Wheel | |
| Rim Weight | 445g | 445g | 445g |
| Wheel Weight | 1030g | 790g | 1030g |
| Max Carrying Capacity | 150kg | 150kg | 150kg |
| Rim Material | Aluminum | Aluminum | Aluminum |
| Rim Model | WiFi | WiFi | WiFi |
| Tire Interface | Hooked | Hooked | Hooked |
| Valve Hole | Presta | Presta | Presta |
| Rim Diameter | 20″ / 406 | 20″ / 406 | 20″ / 406 |
| Inner Width | 32mm | 32mm | 32mm |
| Outer Width | 38mm | 38mm | 38mm |
| Holes | 32 | 32 | 32 |
| Axle System | 12 mm Thru Axle | 15 mm Thru Axle | 15 mm Thru Axle |
| Built-In Dimension | 142mm | 100mm | 100mm |
| Brake Interface | Disc 6 Bolt | Disc 6 Bolt | Disc 6 Bolt |
| Cassette Interface | Shimano Road (HG) | – | – |
| Freehub System | 3 Pawl | – | – |
| Spokes | 13 Gauge Stainless | 13 Gauge Stainless | 13 Gauge Stainless |
| Nipples | Brass nipples 2.0 x 13 | Brass nipples 2.0 x 13 | Brass nipples 2.0 x 13 |
| Compatability | Nano | Nano | Nano |
SPECS
GEO
The frame comes in one size only and is able to fit riders that are between 160cm and 190cm tall.
| Nano V1 | One Size |
| STL – seat tube length (c-t) | 460 |
| TTL – top tube length (c-c / actual) | 539.5 |
| Stack | 590 |
| Reach | 390 |
| SO – stand over height | 728.5 |
| BBH – bottom bracket height | 288 |
| BBD – bottom bracket rise | 26,8 |
| STA – seat tube angle | 74 |
| HTA1 – head tube angle | 73,6 |
| WB – wheelbase | 976 |
| A-C – axle to crown | 298.5 |
| R – rake | 25 |
| T – trail | 51 |
| CSL – chainstay length | 380 |
| FL – full bike length | 1498.3 |
| Frame Material | Double Butted Chromoly Steel Frame |
| Size | One Size |
| Rack Dimensions | 400x500mm |
| Seat post diameter | 31,6mm |
| Seat post clamp size | 34,9mm |
| Fork Brake Mount | IS – Disc only |
| Rear Brake Mount | Dependent on insert choice – Disc only |
| Rear Wheel | 406 x Dependant on insert choice. |
| Front Wheel | 406, 15x100mm spacing |
| Tyre Clearance Front | 55mm with mudguards |
| Tyre Clearance Rear | 55mm with mudguards* |
| Thru Axle Rear | 12×142, 172mm long, 19mm thread length, 1,5mm pitch |
| Thru Axle Front | 15x100mm, 125mm long, 17mm thread length, 1,5mm pitch |
| Headset | 1 1/8” Ahead |
| Bottom Bracket | 68mm BSA |
| Gears | For 1x rear derailleur gear, single speed or internal hub gears |
| Frame Split | Yes |
| Rack Bolt | M15 x 15mm |
| Standard Rack Weight | TBU |
| Frame Kit Weight | 7kg |
| Maximum Loading Weight on Front Rack | 50kg |
| Maximum Total Loading Weight Incl. Rider | 125kg |
| Frame Kit | 7kg |
| Complete Apex Build | 16,5kg |
Weight includes pedals and kickstsand, but are with out accessories(Webbing, Extender, ETC)
