The Cargo is an incredibly versatile, lightweight and fast cargo bike that can handle heavy loads and big objects with ease.
The best part is, it rides like a normal bike when unloaded, due to it‘s clever construction and familiar geometry.
The Cargo is also the model with the long-est wheelbase, which calls for very stable handling. The wheelbase also allows for great stability when loading the rack on your own, as the weight is positioned in the middle of the front wheel and the kickstand.
Need to pick up your new dream sofa? Easy. Bringing your kid to the daycare before work? No problem! Bring a computer for work or a change of clothes for the gym in a waterproof duffle and you‘re good to go, rain or shine, all year long.
MOTOR
The powerful SHIMANO EP801 motor is strong enough to handle the steepest of hills, yet intuitive enough to give you just the right amount of support for every pedal stroke along the way. Designed specifically to give you the natural feel of riding a normal bike. Weighs only 2.6kg, one of the lightest motors on the market. Stable, smooth intuitive power for improved bike handling over every part of your day. Solidly supports speeds up to 25 km/h.
Battery
Ultra-durable, replaceable, powerful battery specially designed for the rigours of cargo biking. Low profile design for improved impact and vibration resistance. High capacity long-lasting Li-Ion battery of 504 Wh to cover more territory. Supported travel up to 100 km on one charge. Holds 60% of maximum capacity after 1,000 complete charge cycles.

DRIVETRAIN OPTIONS

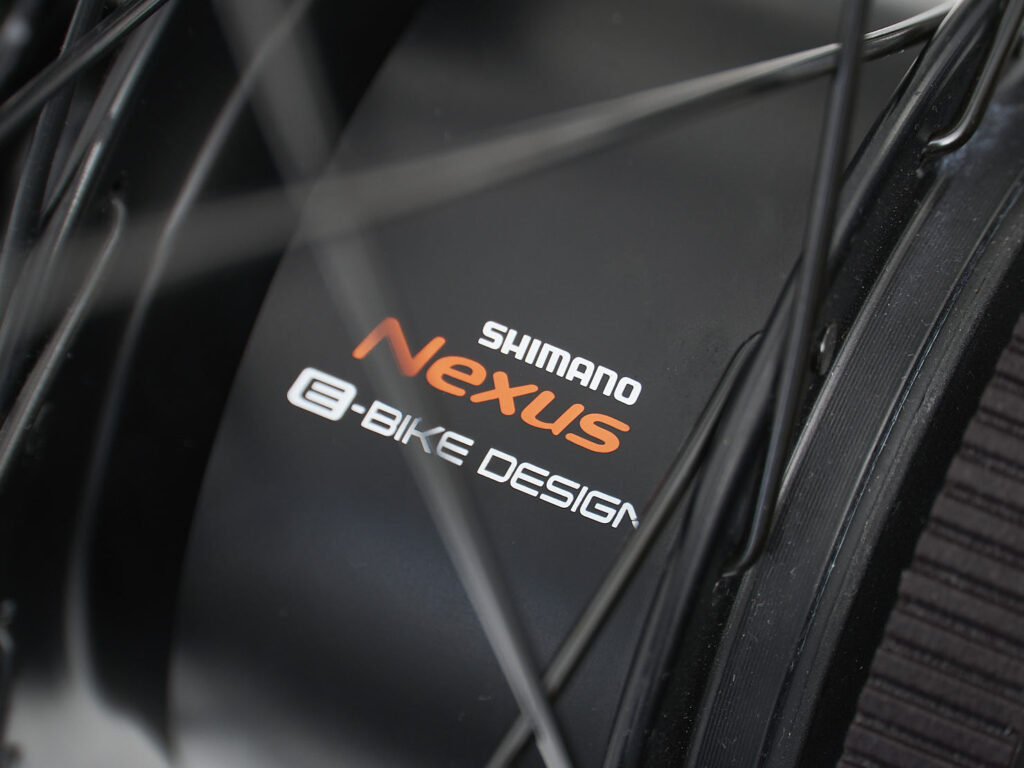

Shimano Nexus 5 drivetrain and Gates Carbon Belt Drive is the perfect drivetrain for urban commuting and daily rides, no matter the weather. Designed for low maintenance and exceptional durability, it’s ideal for individuals or families who need a bike that thrives in all conditions, including rainy days and salty roads, without constant cleaning or upkeep.
The Shimano Nexus 5 offers a smooth 263% gear range with electronic shifting, ensuring precise and effortless changes, even under load. Paired with the Gates Carbon Belt Drive, you get a clean, quiet, and ultra-durable drivetrain that resists rust and wear, making it perfect for harsh weather and road grime.
Stopping power is handled by SRAM Guide hydraulic brakes, providing reliable, all-weather control for confident handling in busy streets or with heavy cargo.
The Nexus 5 is the ultimate solution for those who demand a bike that’s tough, versatile, and ready to tackle daily life—whatever the weather.
| Brakes | SRAM G2 RE 4 piston IS 160mm front and rear |
| Gears | Shimano Nexus 5 internal gear hub, Gates 125T CDX carbon drive belt, Gates 28T rear sprocket. |
| Motor | Shimano Steps EP801 CRG |
| Battery | Shimano STEPS Battery(504WH) BT-EN605 |

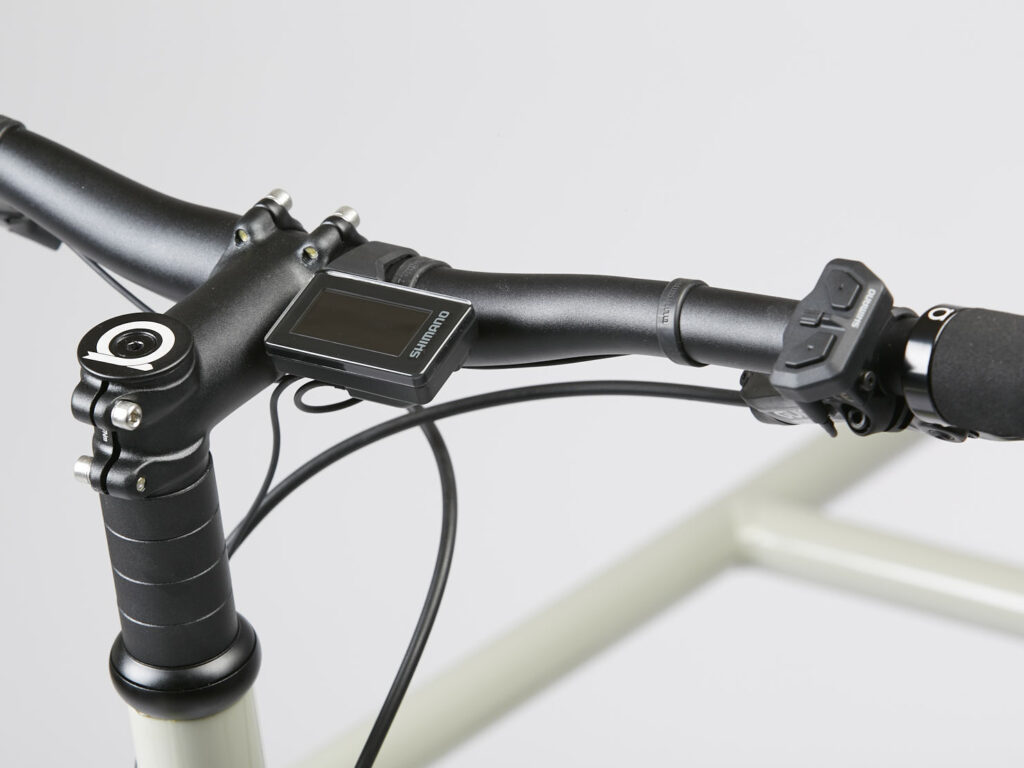

| Display & Shifters | Shimano SC-EN600 display & EN600 Shifters |
| Crankset | Shimano Steps FC-EM600 165mm crank arm with Gates 39T 104bcd chainring |
| Hubs | Rear Nexus inter-5e 135 x 10mm & Front Omnium hub 15 x 100mm thru axle |
| Wheels | Nexus inter-5e 135 x 10mm 622 (700c) rearwheel & 15 x 100mm thru axle 406 (20″) front, 38mm wide rims |
| HANDLEBAR | Omnium Riserbar | Multiple Choice in Bike Builder |
| STEM | Omnium LW Stem | Multiple Choice in Bike Builder |
| GRIPS | Omnium Lock On Foam Grips | Multiple Choice in Bike Builder |
| HEADSET REAR | Omnium 1 1/8 Threadless Headset |
| HEADSET FRONT | Omnium Integrated Front Headset |
| SEATPOST | Omnium Forged Seatpost | Multiple Choice in Bike Builder |
| SADDLE | Omnium Standard Saddle | Multiple Choice in Bike Builder |
| PEDALS | Omnium Cargo Pedals | Multiple Choice in Bike Builder |
| KICKSTAND | Omnium Cargo Kickstand |
| MUDGUARDS | Omnium V3 60mm Mudguards |
| COLUMN SPACERS | Omnium Spacer 15mm x4 |
| SEATPOST CLAMP | Omnium Seatpost Clamp |
The CUES drivetrain is designed for riders who push further on their daily rides or live in steep, challenging cities like Porto. With a 391% gear range across 10 electronic gears, it provides the versatility needed to conquer hilly terrain with ease while maintaining a responsive, sporty feel.
This drivetrain’s wider gear range makes it ideal for steep climbs and fast descents, giving you the performance edge for more demanding rides. While the steel cassette enhances durability, the system requires higher maintenance compared to internal gear hubs like the Nexus 5. It’s perfect for cyclists seeking performance over convenience.
Stopping is handled by SRAM Guide hydraulic brakes, offering dependable, all-weather braking power for control on tricky descents or busy streets.
For riders seeking a sportier, more dynamic experience, the CUES is built to handle the challenges of hilly cities and longer adventures, combining agility and power for the ultimate ride.
| Brakes | SRAM G2 RE 4 piston IS 160mm front and rear |
| Gears | Shimano Cues RD-6050 (DI2), Shimano CN-LG500 Chain, Shimanio Linkglide CN-LG400-10 11-43 Cassette |
| Motor | Shimano Steps EP801 CRG |
| Battery | Shimano STEPS Battery(504WH) BT-EN605 |
| Display & Shifters | Shimano SC-EN600 display & EN600 Shifters |
| Crankset | Shimano FC-EM600, Shimano SM-CRE80 44t Chainring. |
| Tyres | Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″) |
| Wheels | Omnium By DT Swiss Cargo Wheelset |
| HANDLEBAR | Omnium Riserbar | Multiple Choice in Bike Builder |
| STEM | Omnium LW Stem | Multiple Choice in Bike Builder |
| GRIPS | Omnium Lock On Foam Grips | Multiple Choice in Bike Builder |
| HEADSET REAR | Omnium 1 1/8 Threadless Headset |
| HEADSET FRONT | Omnium Integrated Front Headset |
| SEATPOST | Omnium Forged Seatpost | Multiple Choice in Bike Builder |
| SADDLE | Omnium Standard Saddle | Multiple Choice in Bike Builder |
| PEDALS | Omnium Cargo Pedals | Multiple Choice in Bike Builder |
| KICKSTAND | Omnium Cargo Kickstand |
| MUDGUARDS | Omnium V3 60mm Mudguards |
| COLUMN SPACERS | Omnium Spacer 15mm x4 |
| SEATPOST CLAMP | Omnium Seatpost Clamp |

Why Choose Nexus 5 or CUES for Your Omnium E-Cargo or E-Mini-Max
The Nexus 5 offers low maintenance, durability, and a smooth ride—perfect for daily commutes and flat to moderately hilly areas. For steeper terrain and sportier performance, the CUES drivetrain’s wider gear range and responsiveness excel, though it requires more maintenance. Choose Nexus for ease, CUES for adventure.
Nexus 5
1. Low Maintenance: Enclosed gears and belt drive resist weather and grime.
2. Durability: Ideal for salty roads and everyday commutes.
3. Gear Range (263%): Perfect for flat to moderately hilly areas.
4. Electronic Shifting: Smooth and precise gear changes.
5. Quiet Ride: Belt drive ensures a clean, silent experience.
CUES
1. Sporty Performance: Wider 391% gear range for steep hills.
2. 10 Gears: More options for challenging terrain.
3. Electronic Shifting: Seamless, responsive control.
4. Higher Maintenance: Requires regular care for optimal performance.
5. Steel Cassette: Durable for demanding rides.

SPECS

GEO


| Frame material | Double-Butted Chromoly Steel Frame |
| 5 Sizes | XS, S, M, L, XL |
| Seat post diameter | 31.6 mm |
| Seat post clamp size | 34.0 mm |
| Rear wheel | 622, 12 x 142mm spacing, disc only |
| Front wheel | 406, 15 x 100 mm spacing, disc only |
| Tyre clearance, front | 55mm with mudguards |
| Tyre clearance, rear | 55mm with mudguards |
| Thru Axle Front | 15×100, 125mm long, 17mm thread length, 1.5mm pitch |
| Fork headset | 1 1/8″ Threaded Integrated with locking cap |
| Steerer headset | 1 1/8″ Ahead |
| Rack dimensions | 83cm x 50cm, made of Aluminum |
| Standard rack weight | 1320g +/- |
| Rack bolt size | M8 x 15mm |
| Maximum total loading weight incl. rider | 178 kg |
| Maximum loading weight on front rack | 75 kg (Total weight may never exceed maximum loading weight) |
| Complete Bike Weight (including Webbing) | 28kg +/- |
| Cargo WiFi | XS (49.5) | S (52) | M (54.5) | L (57) | XL (60) |
| STL – seat tube length (c-t) | 495 mm | 520 mm | 545 mm | 570 mm | 600 mm |
| TTL – top tube length (c-c / actual) | 505 mm | 520 mm | 545 mm | 570 mm | 600 mm |
| Stack | 544 mm | 568 mm | 592 mm | 618 mm | 628 mm |
| Reach | 349 mm | 356 mm | 373 mm | 393 mm | 414 mm |
| SO – standover height | 738 mm | 762 mm | 786 mm | 811 mm | 829 mm |
| BBH – bottom bracket height | 273 mm | 273 mm | 273 mm | 273 mm | 273 mm |
| BBD – bottom bracket drop | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| STA – seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| HTA1 – head tube angle rear | 74° | 74° | 74.5° | 74.5° | 75° |
| HTA2 – head tube angle front | 74° | 74° | 74.5° | 74.5° | 75° |
| WB – wheelbase | 1573 mm | 1585 mm | 1605 mm | 1630 mm | 1651 mm |
| A-C – axle to crown | 295 mm | 295 mm | 295 mm | 295 mm | 295 mm |
| R – rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| T – trail | 28 mm | 28 mm | 26 mm | 26 mm | 24 mm |
| CSL – chainstay length | 462 mm | 462 mm | 462 mm | 462 mm | 462 mm |
| FL – full bike length | 2205 mm | 2217 mm | 2237 mm | 2262 mm | 2283 mm |
