Design
The Omnium CXC stands for Cyclo Cross City, and does just that. Commute, gravel, cyclocross, world tour, or alleycat – the CXC will work for you.
With 700x45c tire clearance and triple cage fork mounts, this thing is even adventure ready! Adjustable dropouts let you run singlespeed, fixed, Internal gear hub, or a derailleur. It’s now also belt drive compatible!
We could go on about possibilities, but in short the CXC is a true Swiss Army knife. There is nothing more versatile.
The Omnium CXC Titanium is the premium version of our classical CXC bike, improving it even further with a super-light titanium frame. All parts are carefully selected and designed for a perfect cycling experience.
The fork features a straight blade design, matte 3k carbon weave, 100x12mm thru axle, mudguard eyelets, and triple cage mounts!
Titanium is unmatched: it won’t rust, crack, or corrode, no matter the conditions. It’s lighter than steel but just as tough, delivering a smooth, responsive ride with zero maintenance fuss. Simply put — steel is real, but titanium is realer.
How to Choose the Right Size for Your Omnium
Getting the perfect fit makes all the difference in how your Omnium feels and performs. Use the chart to find the frame size that best matches your height.
Each Omnium frame size covers a range of rider heights, so if you’re between sizes, consider how you like your bike to feel:
- Choose the smaller size if you prefer a more agile, responsive ride.
- Choose the larger size if you want a more stable, stretched-out position.
ON-DEMAND
With On-Demand OMNIUM titanium frames are made to order and finished to your preference as a frame kit or complete, based on your wishes.
Choose model, complete or frame kit, size, decal or anodizing, optional titanium and carbon parts and any accessories – Once the frame arrives it will be built up to your chosen specifications.
We open up orders for Titanium On-Demand 4 times a year and lead time starts when the on-demand window closes – See the on-demand order schedule for the next windows.
Production and shipping times is approximately 6 months – Once the frames are here all frame kits and completes need to be build up. Frame kits are quicker to build up and will start shipping first. All bikes are shipped within 2 weeks of arrival.
Titanium On-Demand
Order Schedule
The order window for Titanium bikes will be open in the following periods
| On-Demand Q4 2025 | November 1st. | November 14th. |
| On-Demand Q1 2026 | February 1st. | February 14th. |
| On-Demand Q2 2026 | May 1st. | May 14th. |
| On-Demand Q3 2026 | August 1st. | August 14th. |
| On-Demand Q4 2026 | November 1st. | November 14th. |
DRIVETRAIN
Apex is SRAM’s dedicated gravel groupset, a 1×11 groupset with wide range and is simple to use. With a long cage that fits a 42-tooth cassette and the X-HORIZON design reduces shifting force adding extra comfort. It also comes with Sram CAGE LOCK making wheel removal and maintenance much easier.

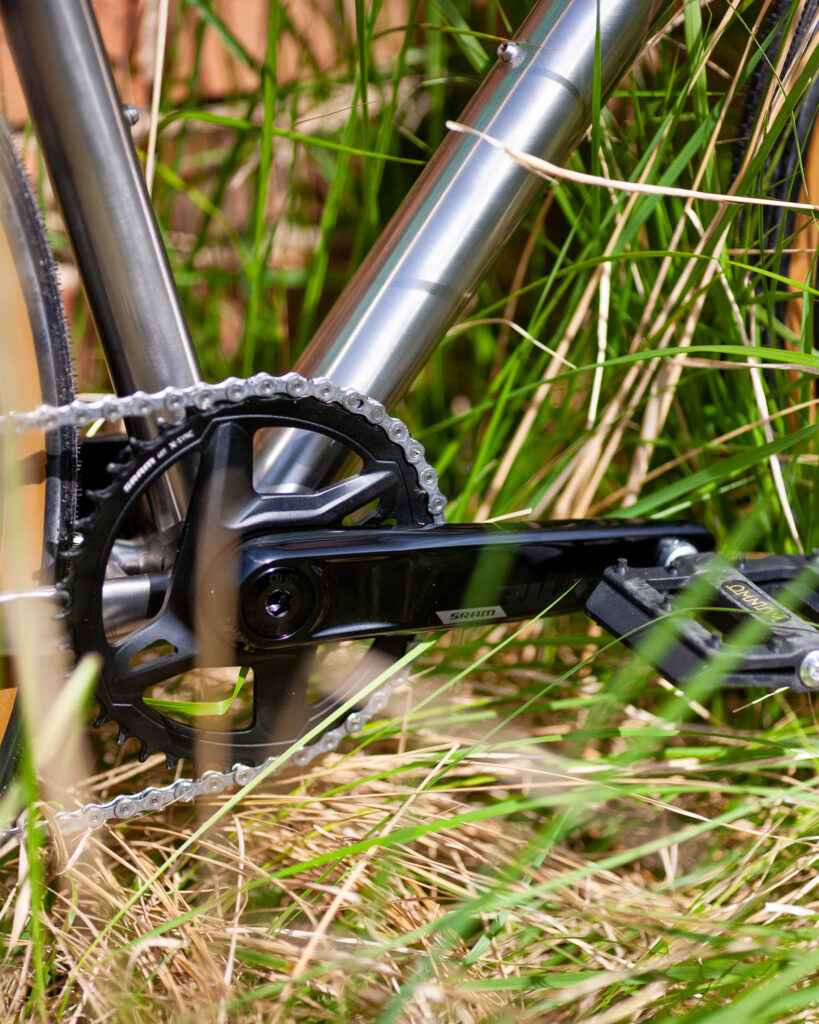

We have upgraded the Apex drivetrains with the Rival 1 Wide crankset, with its wider Q-Factor and DUB bottom bracket it is the right fit for the OMNIUM platform.
| Brakes | SRAM Apex 1 I Post Mount Calipers |
| Rotor | SRAM Centerline 160mm |
| Derailleur | SRAM Apex 11 SPD |
| Cassette | SRAM Force cassette 11-36 |
| Chain | KMC 11 Spd Chain EPT |
| Crankset | SRAM FC Rival 1 D1 Dub Wide 42t |
| Bottom Bracket | SRAM BB Dub BSA 68 Road Wide |
| DT Swiss G1800 | Rear Wheel | Front Wheel | Dynamo Wheel |
| Supplier Name | G 1800 SPLINE db 25 12/142 mm Shimano | G 1800 SPLINE db 25 12/100 mm | G 1800 SPLINE db 25 12/100 mm Dynamo |
| Supplier SKU | W0G1800NIDMSA21294 | W0G1800AIDXSA21293 | W0G1800AIDXSA27425 |
| Net Weight | 994g | 864g | 1098g |
| Max Carrying Capacity | 130kg | 130kg | 130kg |
| Rim Material | Aluminum | Aluminum | Aluminum |
| Tire Interface | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
| Valve Hole | Presta | Presta | Presta |
| Rim Diameter | 29″ / 700C | 29″ / 700C | 29″ / 700C |
| Rim Hight | 25mm | 25mm | 25mm |
| Inner Width | 24mm | 24mm | 24mm |
| Outer Width | 28mm | 28mm | 28mm |
| Holes | 32 | 32 | 32 |
| Hub Type | 370 | 370 | 370 |
| Axle System | 12 mm Thru Axle | 12 mm Thru Axle | 12 mm Thru Axle |
| Built-In Dimension | 142mm | 100mm | 100mm |
| Brake Interface | Disc Center Lock | Disc Center Lock | Disc Center Lock |
| Cassette Interface | Shimano Road (HG) | – | – |
| Freehub Body | Shim. RD. 11SP Forged (ASF11) | – | – |
| Freehub System | Ratchet LN 18 | – | – |
| Spokes | DT aero comp® wide straightp | DT aero comp® wide straightp | DT aero comp® wide straightp |
| Spoke Pattern | Two-cross (1:1) | Two-cross (1:1) | Two-cross (1:1) |
| Nipples | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu | DT ProLock Squorx ProHead alu |
| Tubeless Tape (Included) | Tubeless tape 27 mm | Tubeless tape 27 mm | Tubeless tape 27 mm |
| Tubless Valve (Included, not installed) | TL valve alu black 18-25 mm | TL valve alu black 18-25 mm | TL valve alu black 18-25 mm |
| Compatability | CXC v2.1, v3.0 & v4.0 | CXC v2.1, v3.0 & v4.0 | CXC v2.1, v3.0 & v4.0 |
| HANDLEBAR | Omnium Dropbar |
| STEM | Omnium LW Stem | Multiple Choice in Bike Builder |
| HANDLEBAR TAPE | Omnium Earth Pattern |
| HEADSET | Cane Creek Forty |
| SEATPOST | Omnium Forged Seatpost |
| SADDLE | Omnium Cromo Saddle | Multiple Choice in Bike Builder |
| PEDALS | Omnium Platform Pedals |
| COLUMN SPACERS | Omnium Spacer 15mm x4 |

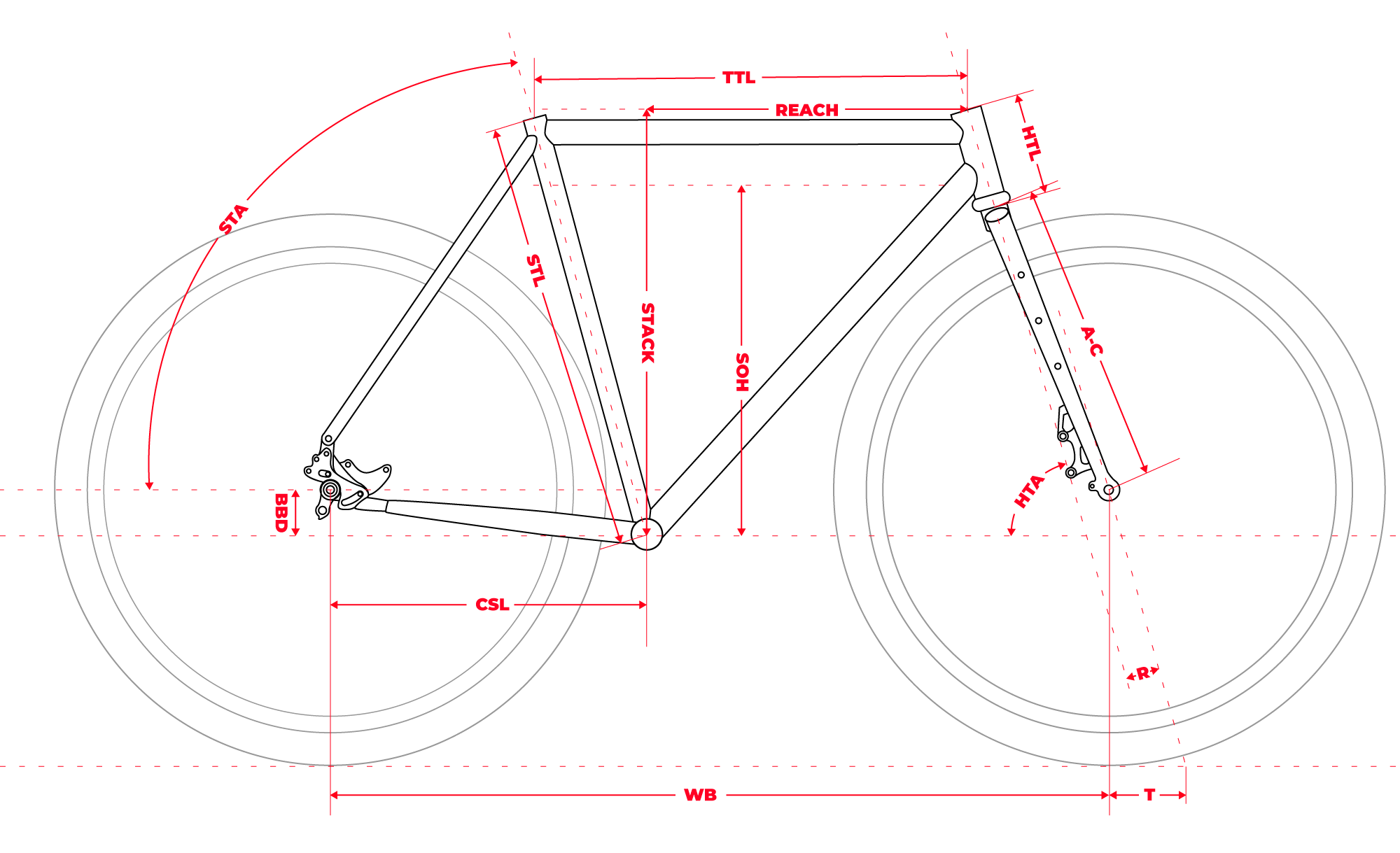

SPECS & GEO
TITANIUM CXC V3IR
Geometry is the same across steel and titanium but tubing is changed to add more stiffness to the titanium frame.
| CXC V3 | XS (51) | S (53) | M (56) | L (59) | XL (62) | XXL (64) |
| STL – seat tube length (c-t) | 510 | 530 | 560 | 590 | 620 | 640 |
| TTL – top tube length (c-c / actual) | 520 | 535 | 555 | 575 | 595 | 610 |
| Stack | 497 | 512 | 543 | 573 | 602 | 617 |
| Reach | 395 | 402 | 409 | 422 | 434 | 434 |
| SOH – standover height | 782 | 797 | 828 | 858 | 888 | 902 |
| BBD – bottom bracket drop | 58 | 58 | 58 | 58 | 58 | 58 |
| STA – seat tube angle | 76° | 75.5° | 75° | 75° | 75° | 74° |
| HTA – head tube angle | 73.5° | 74° | 74.5° | 75° | 75° | 75° |
| HTL – head tube length | 66 | 80 | 110 | 140 | 170 | 185 |
| WB – wheelbase | 977 | 985 | 996 | 1012 | 1032 | 1036 |
| A-C – axle to crown | 396 | 396 | 396 | 396 | 396 | 396 |
| R – rake | 45 | 45 | 45 | 45 | 45 | 45 |
| T – trail | 58 | 55 | 52 | 49 | 49 | 49 |
| CSL – chainstay length | 410-427 | 410-427 | 410-427 | 410-427 | 410-427 | 410-427 |
| 5 Sizes | XS (51), S (53), M(56), L (59), XL (62) |
| Material | Titanium Grade 9 |
| Gears | For 1x rear derailleur gear system |
| Seat post diameter: | 31.6mm |
| Seat post clamp diameter | 34.9mm |
| Rear Wheel: | TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only |
| Fork: | Carbon triple cage fork with 12x100mm thru-axle flatmount (post mount adapter included) |
| Front Wheel: | 622, 12 x 100mm spacing, disc only |
| Thru Axle Front | 12×100, 132mm long, 1.5 pitch |
| Tyre clearance, front: | 45mm clearance with out mudguards(40mm with) |
| Tyre clearance, rear: | 45mm clearance with out mudguards (40mm with) |
| Thru Axle Rear | 12×142, 167mm long, 21mm thread length, 1,75 pitch |
| Headset: | 44mm Headtube for headset standard ZS44/28.6 – EC44/40 |
| Bottom Bracket: | 68mm BSA |
| Cable Guide: | Internal Routing |
| Rear Brake Mounts(Depending on inset choice): | 12mm Thru-Axle – IS 12mm Thru-Axle – Flatmount 10mm QR – IS |
| Recommended maximum loading weight including rider: | 100kg |
| Framekit weight(Large); Including Fork, Drop Outs & Axles | 2.7kg |
