Design
The Mini-Max is the middle child of the lineup, with the best of both the Cargo and the Mini. The shorter wheelbase makes it handle more like a normal bike, with a tighter turn radius and increased manoeuvrability.
Despite its strength and load capacity, the Mini-Max rides like a regular bike when empty thanks to its clever geometry and balanced wheelbase. That compact length gives it snappy handling and easy parking, while still offering solid stability when carrying loads. From daily commutes to kid drop-offs and hauling gear — this bike handles it all.

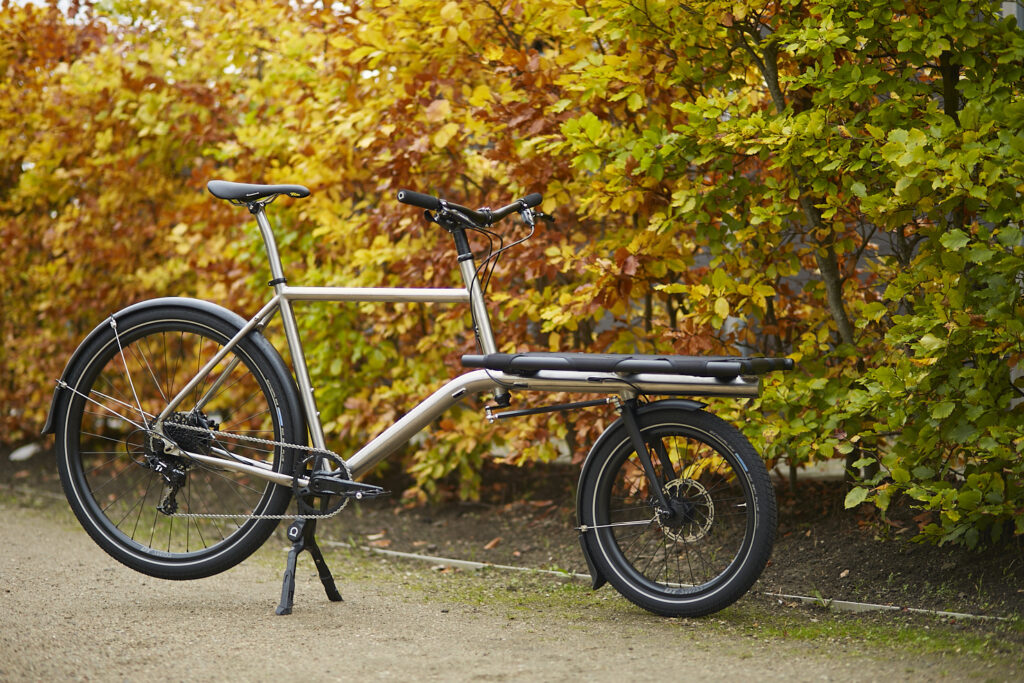

The Titanium Mini-Max V3 is the versatile workhorse of the lineup — light, strong, and built to last forever. With future proof replaceable inserts, and clearance for comfy 55mm tires, it’s ready for any setup or surface.
Titanium is unmatched: it won’t rust, crack, or corrode, no matter the conditions. It’s lighter than steel but just as tough, delivering a smooth, responsive ride with zero maintenance fuss. Simply put — steel is real, but titanium is realer.
How to Choose the Right Size for Your Omnium
Getting the perfect fit makes all the difference in how your Omnium feels and performs. Use the chart to find the frame size that best matches your height.
Each Omnium frame size covers a range of rider heights, so if you’re between sizes, consider how you like your bike to feel:
- Choose the smaller size if you prefer a more agile, responsive ride.
- Choose the larger size if you want a more stable, stretched-out position.
ON-DEMAND
With On-Demand OMNIUM titanium frames are made to order and finished to your preference as a frame kit or complete, based on your wishes.
Choose model, complete or frame kit, size, decal or anodizing, optional titanium and carbon parts and any accessories – Once the frame arrives it will be built up to your chosen specifications.
We open up orders for Titanium On-Demand 4 times a year and lead time starts when the on-demand window closes – See the on-demand order schedule for the next windows.
Production and shipping times is approximately 6 months – Once the frames are here all frame kits and completes need to be build up. Frame kits are quicker to build up and will start shipping first. All bikes are shipped within 2 weeks of arrival.
Titanium On-Demand
Order Schedule
The order window for Titanium bikes will be open in the following periods
| On-Demand Q4 2025 | November 1st. | November 14th. |
| On-Demand Q1 2026 | February 1st. | February 14th. |
| On-Demand Q2 2026 | May 1st. | May 14th. |
| On-Demand Q3 2026 | August 1st. | August 14th. |
| On-Demand Q4 2026 | November 1st. | November 14th. |
DRIVETRAIN OPTIONS
Apex is SRAM’s dedicated gravel groupset, a 1×11 groupset with wide range and is simple to use. With a long cage that fits a 42-tooth cassette and the X-HORIZON design reduces shifting force adding extra comfort. It also comes with Sram CAGE LOCK making wheel removal and maintenance much easier.
We have upgraded the Apex drivetrains with the Rival 1 Wide crankset, with its wider Q-Factor and DUB bottom bracket it is the right fit for the OMNIUM platform.
| Brakes | Sram Level TL | IS Mount, |
| Rotors | Sram Centerline 6 Bolt 160mm |
| Derailleur | Sram Apex 1 11 SPD |
| Shifter | Sram Apex 1 11 SPD |
| Cassette | Sram PG1130 |
| Chain | KMC 11 SPD EPT |
| Crankset | SRAM FC Rival 1 D1 Dub Wide 42t |
| Bottom Bracket | SRAM BB Dub BSA 68 Road Wide |
| Rear Wheel | Front Wheel | Dynamo Wheel | |
| Rim Weight | 760g | 500g | 500g |
| Wheel Weight | 1414g | 880g | 1150g |
| Max Carrying Capacity | 180kg | 180kg | 180kg |
| Rim Material | Aluminum | Aluminum | Aluminum |
| Rim Model | U663 | U663 | U663 |
| Tire Interface | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
| Valve Hole | Presta | Presta | Presta |
| Rim Diameter | 29″ / 700C | 20″ / 406 | 20″ / 406 |
| Rim ERD | 599mm | 383mm | 383mm |
| Rim Hight | 22mm | 22mm | 22mm |
| Inner Width | 30mm | 30mm | 30mm |
| Outer Width | 35mm | 35mm | 35mm |
| Holes | 32 | 32 | 32 |
| Hub Type | 370 | 370 | SP PD-6 |
| Axle System | 12 mm Thru Axle | 15 mm Thru Axle | 15 mm Thru Axle |
| Built-In Dimension | 142mm | 100mm | 100mm |
| Brake Interface | Disc 6 Bolt | Disc 6 Bolt | Disc 6 Bolt |
| Cassette Interface | Shimano Road (HG) | – | – |
| Freehub Body | Shim. RD. 11SP Forged (ASF11) | – | – |
| Freehub System | Ratchet LN 18 | – | – |
| Spokes | Alpine II Spokes 2.34 / 291 + 289 mm | Alpine II Spokes 2.34 / 174mm + 176mm | 13 Gauge Stainless |
| Nipples | DT Brass Standard Pro Head 2.0 x 14 | DT Brass Standard Pro Head 2.0 x 14 | Brass nipples 2.0 x 13 |
| Compatability | WiFi, V3 & V3.1 | WiFi, V3 & V3.1 | WiFi, V3 & V3.1 |
| HANDLEBAR | Omnium Riserbar | Multiple Choice in Bike Builder |
| STEM | Omnium LW Stem | Multiple Choice in Bike Builder |
| GRIPS | Omnium Lock On Foam Grips | Multiple Choice in Bike Builder |
| HEADSET REAR | Omnium 1 1/8 Threadless Headset | Multiple Choice In Bike Builder |
| HEADSET FRONT | Omnium Integrated Front Headset |
| SEATPOST | Omnium Forged Seatpost | Multiple Choice in Bike Builder |
| SADDLE | Omnium Chromo Saddle | Multiple Choice in Bike Builder |
| PEDALS | Omnium Platform Pedals |
| KICKSTAND | Omnium Cargo Kickstand |
| MUDGUARDS | Omnium V3 60mm Mudguards |
| COLUMN SPACERS | Omnium Spacer 15mm x4 |
| SEATPOST CLAMP | Omnium Seatpost Clamp |
| TYRES | Schwalbe Big Ben+ | Front: 406×55 Rear: 622×55 |

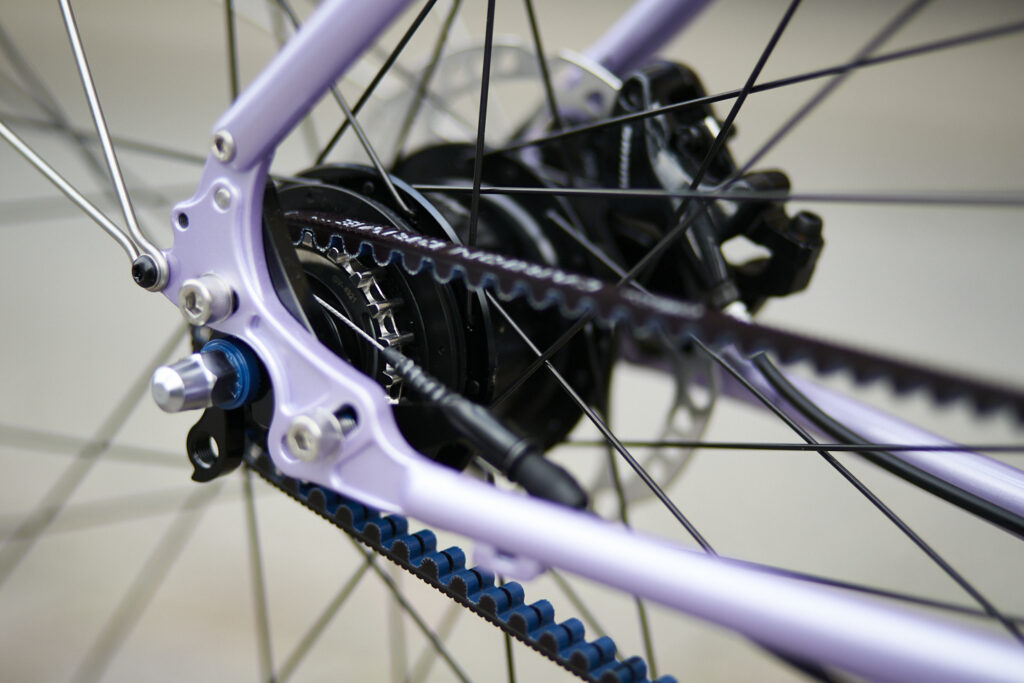

Alfine 8 is the ultimate in hasle free and affordable drivetrains – combined with a titanium frame and gates belt, this bike will outlast any other bike with minimal service needed.
The Gates CDX carbon belt replaces the chain for a longer lasting cleaner drivetrain ideal for commuters.
| Brakes | Sram Level TL | IS Mount |
| Rotors | Shimano RT66 160mm | Front: 6bolt Rear: Centerlock |
| Gears / Rear Hub | Shimano Alfine 8 SPD | Centerlock Disc Mount |
| Shifter | Shimano Alfine Shifter |
| Crankset | Gates CDN 170mm cranks | Gates CDN 50t front sprocket |
| Rear Sprocket | Gates CDX 22t rear sprocket |
| Belt | Gates 122t CDX Belt |
| Bottom Bracket | FSA 122mm Square Tapered |
| Rear Wheel | Front Wheel | Dynamo Wheel | |
| Rim Weight | 760g | 500g | 500g |
| Wheel Weight | 1414g | 880g | 1150g |
| Max Carrying Capacity | 180kg | 180kg | 180kg |
| Rim Material | Aluminum | Aluminum | Aluminum |
| Rim Model | U663 | U663 | U663 |
| Tire Interface | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
| Valve Hole | Presta | Presta | Presta |
| Rim Diameter | 29″ / 700C | 20″ / 406 | 20″ / 406 |
| Rim ERD | 599mm | 383mm | 383mm |
| Rim Hight | 22mm | 22mm | 22mm |
| Inner Width | 30mm | 30mm | 30mm |
| Outer Width | 35mm | 35mm | 35mm |
| Holes | 32 | 32 | 32 |
| Hub Type | Alfine 8 | 370 | SP PD-6 |
| Axle System | 10mm QR | 15 mm Thru Axle | 15 mm Thru Axle |
| Built-In Dimension | 132mm | 100mm | 100mm |
| Brake Interface | Disc Centerlock | Disc 6 Bolt | Disc 6 Bolt |
| Spokes | TBU | Alpine II Spokes 2.34 / 174mm + 176mm | 13 Gauge Stainless |
| Nipples | TBU | DT Brass Standard Pro Head 2.0 x 14 | Brass nipples 2.0 x 13 |
| HANDLEBAR | Omnium Riserbar | Multiple Choice in Bike Builder |
| STEM | Omnium LW Stem | Multiple Choice in Bike Builder |
| GRIPS | Omnium Lock On Foam Grips | Multiple Choice in Bike Builder |
| HEADSET REAR | Omnium 1 1/8 Threadless Headset | Multiple Choice In Bike Builder |
| HEADSET FRONT | Omnium Integrated Front Headset |
| SEATPOST | Omnium Forged Seatpost | Multiple Choice in Bike Builder |
| SADDLE | Omnium Chromo Saddle | Multiple Choice in Bike Builder |
| PEDALS | Omnium Platform Pedals |
| KICKSTAND | Omnium Cargo Kickstand |
| MUDGUARDS | Omnium V3 60mm Mudguards |
| COLUMN SPACERS | Omnium Spacer 15mm x4 |
| SEATPOST CLAMP | Omnium Seatpost Clamp |
| TYRES | Schwalbe Big Ben+ | Front: 406×55 Rear: 622×55 |

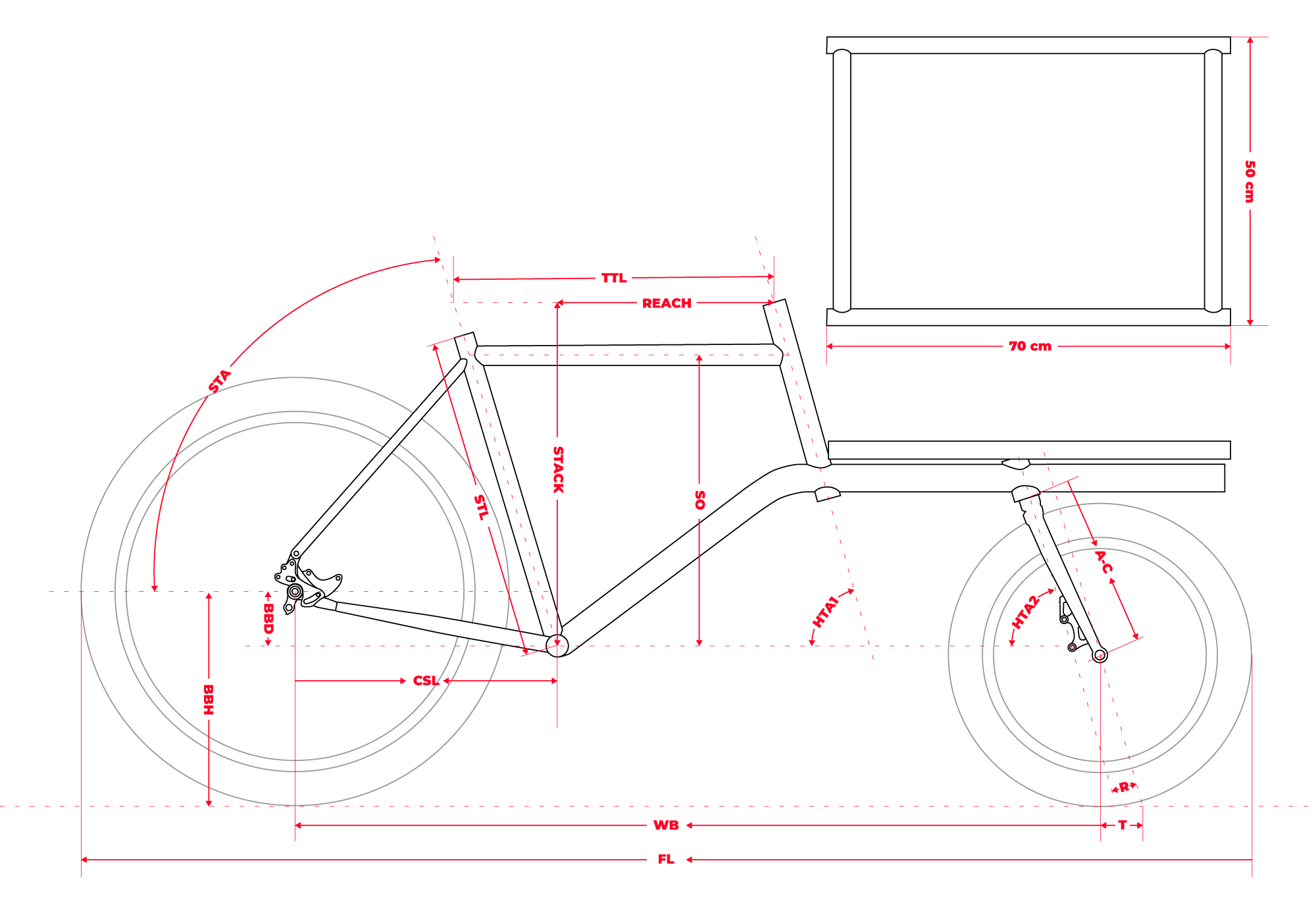

SPECS & GEO
TITANIUM MINI-MAX V3IR
Geometry is the same across steel and titanium but tubing is changed to add more stiffness to the titanium frame.
| Ti Mini-Max V3IR | XS (49.5) | S (52) | M (54.5) | L (57) | XL (60) |
| STL – seat tube length (c-t) | 495 mm | 520 mm | 545 mm | 570 mm | 600 mm |
| TTL – top tube length (c-c / actual) |
505 mm | 520 mm | 545 mm | 570 mm | 600 mm |
| Stack | 532 mm | 557 mm | 581 mm | 605 mm | 634 mm |
| Reach | 347 mm | 355 mm | 373 mm | 390 mm | 412 mm |
| SO – standover height | 745 mm | 769 mm | 793 mm | 817 mm | 846 mm |
| BBH – bottom bracket height | 288 mm | 288 mm | 288 mm | 288 mm | 288 mm |
| BBD – bottom bracket drop | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm |
| STA – seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| HTA1 – head tube angle rear | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| HTA2 – head tube angle front | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| WB – wheelbase | 1355 mm | 1370 mm | 1394 mm | 1419 mm | 1449 mm |
| A-C – axle to crown | 298 mm | 298 mm | 298 mm | 298 mm | 298 mm |
| R – rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| T – trail | 31 mm | 31 mm | 31 mm | 24 mm | 21 mm |
| CSL – chainstay length | 462 – 479 mm | 462 – 479 mm | 462 – 479 mm | 462 – 479 mm | 462 – 479 mm |
| FL – full bike length | 1984 mm | 1999 mm | 2024 mm | 2049 mm | 2079 mm |
| Material | Titanium |
| 5 Sizes | XS, S, M, L, XL |
| Standard Rack Weight | 1320g +/- |
| Rack dimensions | 70cm x 50cm, made of Aluminum |
| Rack bolt size | M10 x 15mm |
| Frame Kit Weight(Large) | 6.8kg (Including Rack, Steerer Tube & Rod, Fork, Drop Outs, Head Sets & Axles) |
| Seat post diameter | 31.6mm |
| Seat post clamp size | 34.9mm |
| Rear Wheel | TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only |
| Front Wheel | 406, 15 x 100mm spacing, disc only |
| Tyre clearance, front | 55mm with mudguards |
| Tyre clearance, rear | 55mm with mudguards |
| Thru Axle Rear | 12×142, 167mm long, 21mm thread length. 1.75mm pitch |
| Thru Axle Front | 15×100, 125mm long, 17mm thread length, 1.5mm pitch |
| Fork headset | 1 1/8″ Threaded Integrated with locking cap |
| Steerer headset | 1 1/8″ Ahead |
| Bottom Bracket | BSA 68mm |
| Q-Factor/Stance | 145mm |
| Gears | For 1x rear derailleur gear system |
| Maximum loading weight on front rack | 85 kg |
| Maximum total loading weight incl. rider | 150 kg |
