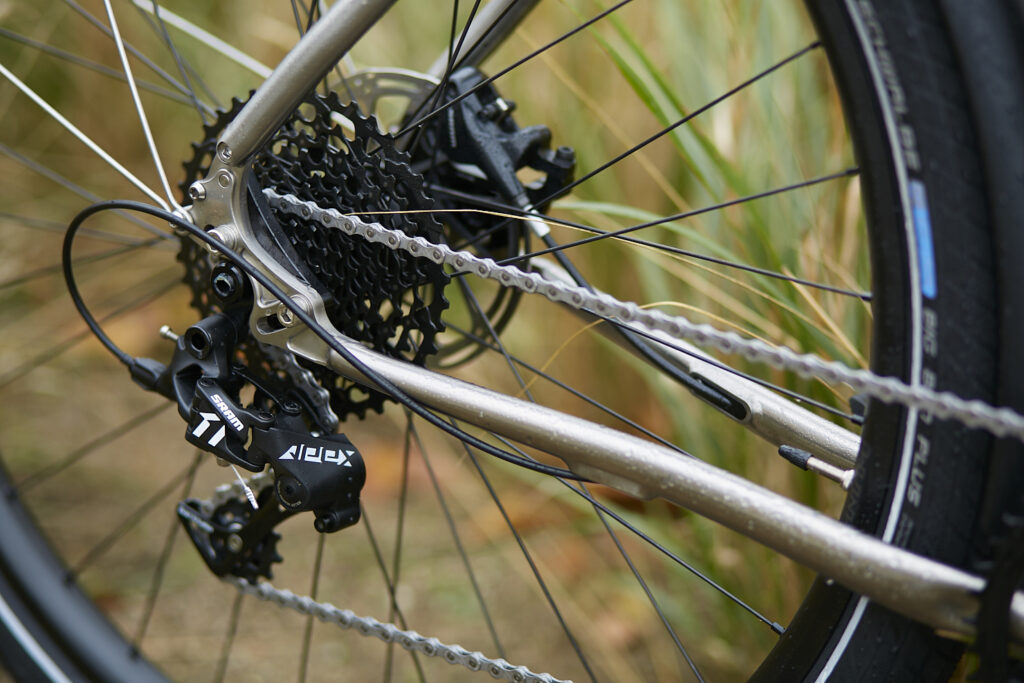

Run whatever drivetrain suits you: external gears, internal hub, belt drive — even fixed if that’s your thing. Swappable inserts let you choose between thru axle or quick release, and make gear hanger replacements quick and easy.
Despite its strength and load capacity, the Cargo rides like a regular bike when empty thanks to its clever geometry and long wheelbase. That extra length gives it rock-solid stability, whether you’re loading the rack solo or flying through city streets. From hauling furniture to daily commutes and kid drop-offs — this bike handles it all.
The Titanium Cargo V3 is the workhorse of the lineup — light, strong, and built to last forever. With future proof replaceable inserts, and clearance for comfy 55mm tires, it’s ready for any setup or surface.
Titanium is unmatched: it won’t rust, crack, or corrode, no matter the conditions. It’s lighter than steel but just as tough, delivering a smooth, responsive ride with zero maintenance fuss. Simply put — steel is real, but titanium is realer.
How to Choose the Right Size for Your Omnium
Getting the perfect fit makes all the difference in how your Omnium feels and performs. Use the chart to find the frame size that best matches your height.
Each Omnium frame size covers a range of rider heights, so if you’re between sizes, consider how you like your bike to feel:
- Choose the smaller size if you prefer a more agile, responsive ride.
- Choose the larger size if you want a more stable, stretched-out position.
ON-DEMAND
With On-Demand OMNIUM titanium frames are made to order and finished to your preference as a frame kit or complete, based on your wishes.
Choose model, complete or frame kit, size, decal or anodizing, optional titanium and carbon parts and any accessories – Once the frame arrives it will be built up to your chosen specifications.
We open up orders for Titanium On-Demand 4 times a year and lead time starts when the on-demand window closes – See the on-demand order schedule for the next windows.
Production and shipping times is approximately 6 months – Once the frames are here all frame kits and completes need to be build up. Frame kits are quicker to build up and will start shipping first. All bikes are shipped within 2 weeks of arrival.
Titanium On-Demand
Order Schedule
The order window for Titanium bikes will be open in the following periods
| On-Demand Q4 2025 | November 1st. | November 14th. |
| On-Demand Q1 2026 | February 1st. | February 14th. |
| On-Demand Q2 2026 | May 1st. | May 14th. |
| On-Demand Q3 2026 | August 1st. | August 14th. |
| On-Demand Q4 2026 | November 1st. | November 14th. |
SPECS & GEO
TITANIUM CARGO V3IR
Geometry is the same across steel and titanium but tubing is changed to add more stiffness to the titanium frame.
| Frame |
| Fork |
| Headsets (front and rear) |
| Steering rod |
| Steerer tube |
| Seat clamp |
| Rack |
| Thru axles front |
| Choice of QR dropouts or 12mm Thru Axle dropouts and axle |
Does NOT include spacers for headset or kickstand
| Ti Cargo V3IR | XS (49.5) | S (52) | M (54.5) | L (57) | XL (60) |
| STL – seat tube length (c-t) | 495 mm | 520 mm | 545 mm | 570 mm | 600 mm |
| TTL – top tube length (c-c / actual) |
505 mm | 520 mm | 545 mm | 570 mm | 600 mm |
| Stack | 532 mm | 557 mm | 581 mm | 605 mm | 634 mm |
| Reach | 349 mm | 357 mm | 375 mm | 393 mm | 415 mm |
| SO – standover height | 745 mm | 769 mm | 793 mm | 817 mm | 846 mm |
| BBH – bottom bracket height | 288 mm | 288 mm | 288 mm | 288 mm | 288 mm |
| BBD – bottom bracket drop | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm |
| STA – seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| HTA1 – head tube angle rear | 74.5° | 74.5° | 75° | 75° | 75.5° |
| HTA2 – head tube angle front | 74.5° | 74.5° | 75° | 75° | 75.5° |
| WB – wheelbase | 1578 mm | 1590 mm | 1611 mm | 1632 mm | 1657 mm |
| A-C – axle to crown | 298 mm | 298 mm | 298 mm | 298 mm | 298 mm |
| R – rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| T – trail | 26 mm | 26 mm | 24 mm | 24 mm | 21 mm |
| CSL – chainstay length | 462 – 479 mm | 462 – 479 mm | 462 – 479 mm | 462 – 479 mm | 462 – 479 mm |
| FL – full bike length | 2208 mm | 2220 mm | 2241 mm | 2262 mm | 2286 mm |
| Material | Titanium |
| 5 Sizes | XS, S, M, L, XL |
| Standard Rack Weight | 1320g +/- |
| Rack dimensions | 83cm x 50cm |
| Rack bolt size | M10 x 15mm |
| Frame Kit Weight(Large) | 7.2kg (Including Rack, Steerer Tube & Rod, Fork, Drop Outs, Head Sets & Axles) |
| Seat post diameter | 31.6mm |
| Seat post clamp size | 34.9mm |
| Rear Wheel | TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only |
| Front Wheel | 406, 15 x 100mm spacing, disc only |
| Tyre clearance, front | 55mm with mudguards |
| Tyre clearance, rear | 55mm with mudguards |
| Thru Axle Rear | 12×142, 167mm long, 21mm thread length. 1.75mm pitch |
| Thru Axle Front | 15×100, 125mm long, 17mm thread length, 1.5mm pitch |
| Fork headset | 1 1/8″ Threaded Integrated with locking cap |
| Steerer headset | 1 1/8″ Ahead |
| Bottom Bracket | BSA 68mm |
| Gears | For 1x rear derailleur gear system |
| Cable Guide | Internal Routing |
| Maximum loading weight on front rack | 85 kg |
| Maximum total loading weight incl. rider | 175 kg |
