Titanium CXC Demo Complete Size: M


2.754,43 incl. VAT

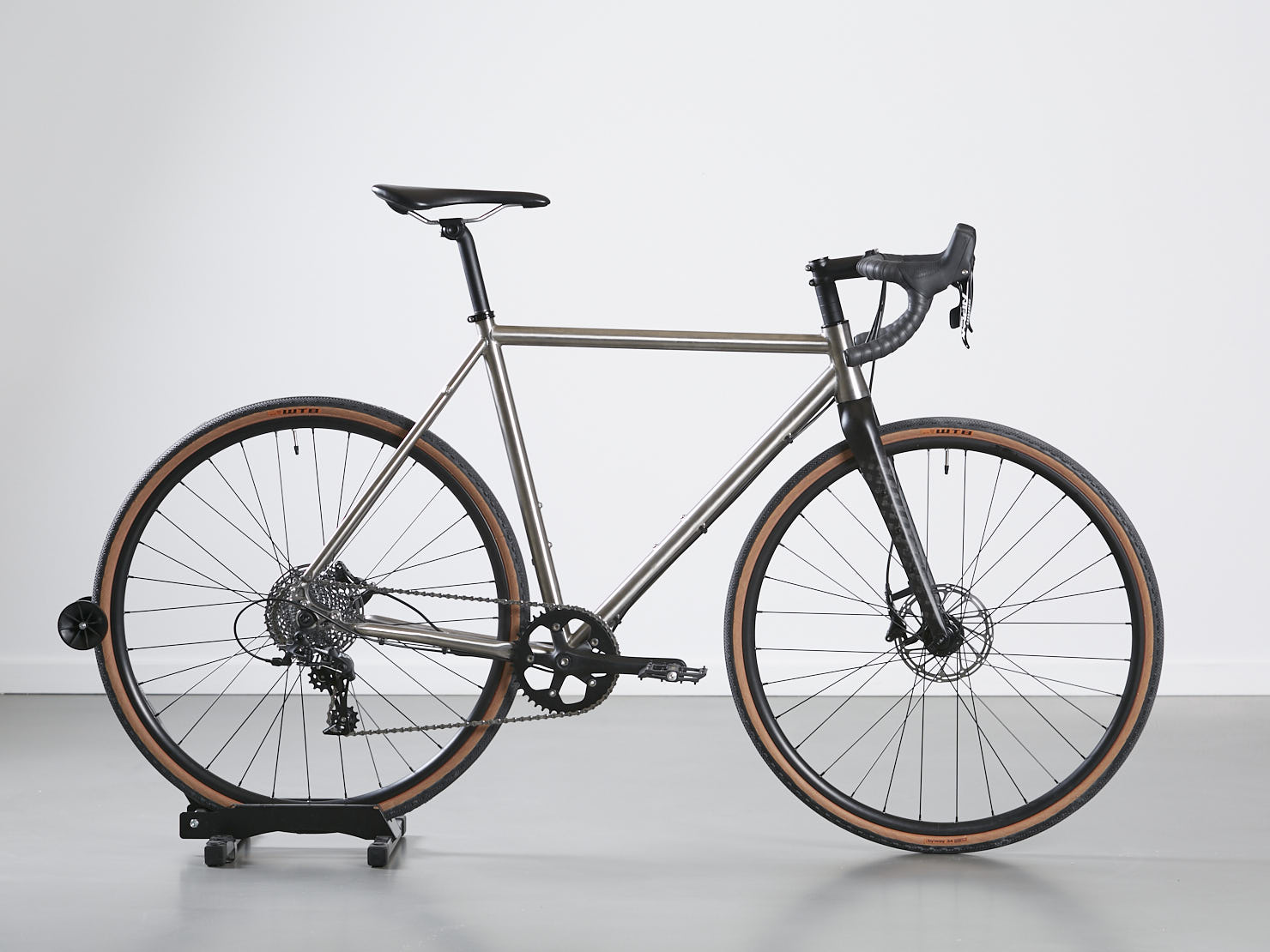

Titanium CXC demo bike, has only been used for display purposes in our office.

Size: Medium

Comes with:

  • Apex 11 gears
  • Hunt four season wheel set and WTB tyres; 34x700c

Frame Specifications

5 SizesXS (51), S (53), M(56), L (59), XL (62)
MaterialTitanium Grade 9
GearsFor 1x rear derailleur gear system
Seat post diameter:31.6mm
Seat post clamp diameter34.9mm
Rear Wheel:TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
Fork: Carbon triple cage fork with 12x100mm thru-axle flatmount (post mount adapter included)
Front Wheel:622, 12 x 100mm spacing, disc only
Thru Axle Front 12×100, 132mm long, 1.5 pitch
Tyre clearance, front:45mm clearance with out mudguards(40mm with)
Tyre clearance, rear:45mm clearance with out mudguards (40mm with)
Thru Axle Rear12×142, 167mm long, 21mm thread length, 1,75 pitch
Headset:44mm Headtube for headset standard ZS44/28.6 – EC44/40
Bottom Bracket:68mm BSA
Cable Guide:Internal Routing
Rear Brake Mounts(Depending on inset choice):12mm Thru-Axle – IS
12mm Thru-Axle – Flatmount
10mm QR – IS
Recommended maximum loading weight including rider:100kg
Framekit weight(Large); Including Fork, Drop Outs & Axles2.7kg

Component List / Ti Sram Apex 11

BrakesSram Level TL, IS mount, 160mm rotor front and rear
GearsSram Apex 11 SPD, Sram Force cassette 11-36, Sram PC-1130 11s chain
Stem3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handlebar6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seatpost27.2mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GripsOmnium lock-on, black, foam
CranksetDriveline, 42t, CNC Narrow Wide Chainring
Bottom BracketFSA, Square Taper, 68mm BSA
Headset/sVP Components, sealed bearings, 1-1/8″
SaddleVelo, leather, Chro-mo
TyresDepending on availability
WheelsOmnium Wheelset 622 (700c)
PedalsCast metal platform, black
